Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Flow cytometry overlay histogram showing wild-type HAP1 (green line) and TP53 knockout HAP1 cells stained with ab227655 (red line). The cells were fixed with 4% formaldehyde (10 min) and then permeabilized with 0.1% PBS-Triton X-100 for 15 min. The cells were then incubated in 1x PBS containing 10% normal goat serum to block non-specific protein-protein interaction followed by the antibody (ab227655) (1x10⁶ in 100 μl at 0.008 μg/ml) for 30 min at 22°C.

The secondary antibody Goat anti-Rabbit IgG H&L (Alexa Fluor^® 488, pre-adsorbed) (ab150081) was used at 1/2000 for 30 min at 22°C.

Isotype control antibody was Rabbit IgG (monoclonal) (ab172730) used at the same concentration and conditions as the primary antibody (wild-type HAP1 - black line TP53 knockout HAP1 - grey line). Unlabelled sample was also used as a control (this line is not shown for the purpose of simplicity).

Acquisition of >5000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter.

This antibody gave a positive signal in TP53 HAP1 knockout cells fixed with 80% methanol (5 min) / permeabilized with 0.1% PBS-Triton X-100 for 15 min used under the same conditions.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HepG2 (human hepatocellular carcinoma epithelial cell) labelling ACSL5 with ab327086 at 1/50 (10.46 μg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing cytoplasmic staining in HepG2 cells (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

anti-COX IV mouse monoclonal antibody - Mitochondrial Marker was used to counterstain mitochondrial at 1/50 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized Human PBMC (human peripheral blood mononuclear cell) cells labelling IL-2 with ab323413 at 1/50 (10.02 ug/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2ug/ml dilution (Green).

Confocal image showing increased cytoplasmic staining in a subset of human PBMC (shown in green) treated with cell stimulation cocktail for 6 hr. The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/ 200 2.5ug/ml dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2ug/ml dilution.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized Raji (human Burkitt's lymphoma B lymphocyte) cells labelling CD19 with ab322345 at 1/50 (9.78 ug/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2ug/ml) dilution (Green).

Confocal image showing membranous staining in Raji cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).
Negative control : Jurakt (PMID : 19147785).
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 (2.5ug/ml) dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 (2ug/ml) dilution.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Immunofluorescent analysis of 100% methanol-fixed, 0.1% TritonX-100 permeabilized HeLa cells labelling LARP1 with ab328018 at 1/500 (1 ug/mL) dilution , followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

ab328018 staining LARP1 (phospho S689) in HeLa cells treated with 2000 U/mL lambda phosphatase or untreated. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal rabbit serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with ab328018 at 1μg/mL (shown in green) and ab7291, Mouse monoclonal [DM1A] to alpha Tubulin - Loading Control (shown in pseudocolour magenta). Cells were then incubated with ab150081, Goat polyclonal Secondary Antibody to Rabbit IgG - H&L (Alexa Fluor® 488), pre-adsorbed and ab150120, Goat polyclonal Secondary Antibody to Mouse IgG - H&L (Alexa Fluor® 594), pre-adsorbed at 1/1000 dilution. Nuclear DNA was labelled with DAPI (shown in blue). Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) transfected with an empty expression vector containing a myc-His-tag® and 293T cells transfected with a human LPL protein expression vector containing a myc-His-tag® labelling with ab328031 at 1/500 (1.044 μg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing positive staining in 293T cells transfected with a human LPL protein expression vectors containing a myc-His-tag® (shown in green). The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab223894 Anti-Myc tag mouse monoclonal antibody (Alexa Fluor® 594) was used to counterstain Myc at 1/100 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized 293T (Human embryonic kidney epithelial cell) cells labelling MAVS with ab290729 at 1/500 dilution (0.1ug) (Red) (Red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/2000 dilution was used as the secondary antibody.

• Flow Cyt

Supplier Data

Flow Cytometry - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Flow cytometric analysis of Raji (human Burkitt's lymphoma B lymphocyte) (Right) / Jurkat (human T cell leukemia T lymphocyte from peripheral blood) (Left) cells labelling CD19 with ab322345 at 1/50 dilution (1ug) (Red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody).

Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 dilution was used as the secondary antibody.

Gated on viable cells.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized Human PBMC (human primary peripheral blood mononuclear cell) untreated Human PBMC treated with 100 mg/ml GM-CSF and 50 ng/ml IL-4 for 6 days, then add 10 ng/ml TNF alpha(human), 1000 U/ml IL-6(human), 10 ng/ml IL-1 beta(human), 1 ug/ml PGE2 for another 2 days cells labelling IL12 p40 with ab327081 at 1/2000 (0.247 μg/ml) dilution , followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing cytoplasmic staining in subsets of human PBMCs (shown in green) treated with 100 mg/ml GM-CSF and 50 ng/ml IL-4 for 6 days, then add 10 ng/ml TNF alpha(human), 1000 U/ml IL-6(human), 10 ng/ml IL-1 beta(human), 1 ug/ml PGE2 for another 2 days. The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Anti-human CD3 mouse monoclonal antibody (Alexa Fluor® 647) was used to counterstain tubulin at 1/200 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution.

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized SH-SY5Y (human neuroblastoma epithelial cell, Left) / MCF7 (human breast adenocarcinoma epithelial cell, Right) cells labeling Cytokeratin 19 with ab323562 at 1/1000 dilution (0.1 ug) (Red) compared with a mouse monoclonal IgG (Black) isotype control and an unlabeled control (cells without incubation with primary antibody and secondary antibody) (Blue).

Goat anti-Mouse IgG (Alexa Fluor^® 488, ab150113) at 1/5000 dilution was used as the secondary antibody.
Negative control : SH-SY5Y.

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized Left : U-937 (Human histiocytic lymphoma monocyte) / Right : Jurkat (Human T cell leukemia T lymphocyte) cells labelling CD3 epsilon with ab16669 at 1/100 dilution / Red compared with an isotype control Rabbit monoclonal IgG (ab172730) / Black and unlabelled control cell without incubation with primary antibody and secondary antibody / Blue.

Goat anti-Rabbit IgG H&L (Alexa Fluor® 488, ab150081) preadsorbed at 1/5000 dilution was used as the secondary antibody.

Negative control : U-937 (PMID : 40579234)

• Flow Cyt

Lab

Flow Cytometry - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Flow cytometric analysis of Human PBMC (human peripheral blood mononuclear cell) cells labelling CLEC1B with ab327705 at 1/500 dilution (0.1ug) / Right compared with a Rabbit monoclonal IgG (ab172730) / Left isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody).

Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 dilution was used as the secondary antibody.

Gated on viable cells.
Cells were co-stained with CD3 conjugated to Alexa Fluor®647.

• Flow Cyt

Lab

Flow Cytometry - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Flow cytometric analysis of Human PBMC (human peripheral blood mononuclear cell) cells labelling CLEC1B with ab327705 at 1/500 dilution (0.1ug) / Right compared with a Rabbit monoclonal IgG (ab172730) / Left isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody).

Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 dilution was used as the secondary antibody.

Gated on viable cells.
Cells were co-stained with CD14 conjugated to PE.
PMID : 10671229

• Flow Cyt

Lab

Flow Cytometry - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Flow cytometric analysis of 4% paraformaldehyde fixed 0.1% Tween-20 permeabilized 293T cells (human embryonic kidney epithelial cell) transfected with a human CLEC1B expression vector containing a Myc-His-tag® (Middle) 293T cells transfected with an empty expression vector containing a myc-His-tag® (Right) cells labelling with ab327705 at 1/50000 dilution (0.001ug) / Right compared with a Rabbit monoclonal IgG (ab172730) / Left isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody).

Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 dilution was used as the secondary antibody.

Cells were surface stained with isotype control or our antibody. Then fixed with 4% PFA for 10min followed by intracellularly stained with anti-myc tag conjugated to Alexa Fluor® 647.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney epithelial cell) cells labelling MAVS with ab290729 at 1/50 (10.32 ug/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2 ug/ml dilution (Green). Confocal image showing mitochondrial staining in the 293T cell line is observed. ab33985 Anti-COX IV mouse monoclonal antibody - Mitochondrial Marker was used to counterstain tubulin at 1/1000 1 ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/ml dilution.

• Flow Cyt

Supplier Data

Flow Cytometry - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Flow cytometric analysis of Human PBMC (human peripheral blood mononuclear cell) cells labelling CD19 with ab322345 at 1/50 dilution (1ug) (Red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody).

Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 dilution was used as the secondary antibody.

Cells were co-stained with anti human CD20 conjugated to Alexa Fluor®647.
Gated on viable cells.

• Flow Cyt

Supplier Data

Flow Cytometry - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Flow cytometric analysis of Human PBMC (human peripheral blood mononuclear cell) cells labelling CD19 with ab322345 at 1/50 dilution (1ug) (Red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody).

Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 dilution was used as the secondary antibody.

Cells were co-stained with anti human CD3 conjugated to Brilliant Violet 421.
Gated on viable cells.

• ICC/IF

Lab

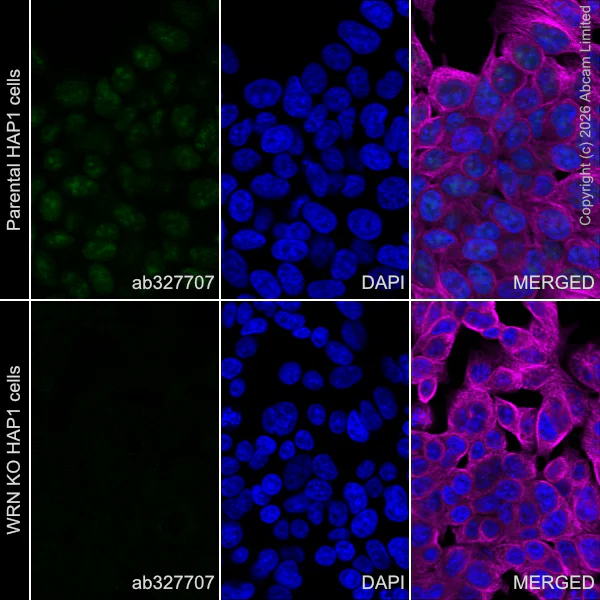

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized Parental HAP1 (human chronic myelogenous leukemia near-haploid cell) and WRN KO HAP1 cells labelling Werner's syndrome helicase WRN with ab327707 at 1/50 (9.24 μg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing nuclear staining in Parental HAP1 cells and no staining in WRN KO HAP1 cells (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Immunofluorescent analysis of 4% Paraformaldehyde fixed 0.1% Triton X-100 permeabilized U-2 OS (human bone osteosarcoma epithelial cell) cells untreated and treated with Aphidicolin (2 μM) for 24 hours labelling FoxM1 at 1/500 (1.022 μg/ml) followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed antibody as secondary at 1/1000 (2 μg/ml) dilution. Confocal image showing increased nuclear staining in treated U-2 OS cells with Aphidicolin (2 μM) for 24 hours (shown in green). ab7291 Anti-alpha Tubulin mouse monoclonal antibody at 1/1000 (1 μg/ml) was used as a counterstain followed by ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor^® 594) at 1/1000 (2 μg/ml) dilution (shown in magenta). Nuclear DNA was labelled with DAPI (shown in blue).

Image was taken with a confocal microscope (Leica-Microsystems, STELLARIS).

Low Expression Samples : U-2 OS (human bone osteosarcoma epithelial cell).

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Intracellular flow cytometric analysis of 90% methanol permeabilized SK-BR-2 and HepG2 cells labelling FACL4 with ab155282 at a dilution of 1/5000 (red). Cells were fixed with 4% paraformaldehyde. Goat anti-Rabbit IgG H&L (Alexa Fluor® 488, ab150081) preadsorbed (1/5000) was used as the secondary antibody. Black - Isotype control, rabbit monoclonal IgG (ab172730). Blue - Unlabelled control, cells without incubation with primary and secondary antibodies.

• ICC/IF

Lab

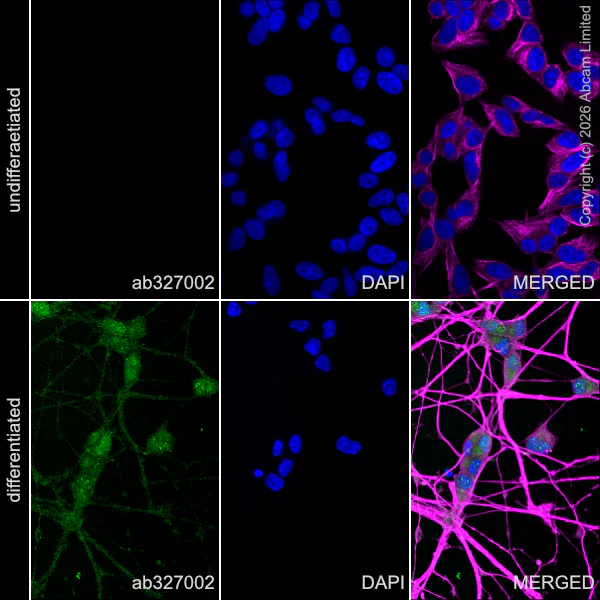

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized SH-SY5Y (human neuroblastoma epithelial cell) neural differentiated SH-SY5Y cells labelling with ab327002 at 1/200 (2.43 μg/ml) dilution , followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing increased cytoplasmic and nuclear staining in neural differentiated SH-SY5Y cells (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab78078 Anti-beta III Tubulin mouse monoclonal antibody - Neuronal Marker was used to counterstain tubulin at 1/500 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HEK-293T cells transfected with an empty expression vector containing a myc-His-tag® HEK-293T cells transfected with a human Dll1 expression vector containing a myc-His-tag® HEK-293T cells transfected with a human Dll3 expression vector containing a myc-His-tag® HEK-293T cells transfected with a human Dll4 expression vector containing a myc-His-tag® cells labelling DLL1 with ab327088 at 1/1000 (0.509 μg/ml) dilution , followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing positive staining in HEK-293T cells transfected with a human Dll1 expression vector containing a myc-His-tag®(shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). A : HEK-293T cells transfected with an empty expression vector containing a myc-His-tag®. B : HEK-293T cells transfected with a human Dll1 expression vector containing a myc-His-tag®. C : HEK-293T cells transfected with a human Dll3 expression vector containing a myc-His-tag®. D : HEK-293T cells transfected with a human Dll4 expression vector containing a myc-His-tag®. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab223894 Anti-Myc tag mouse monoclonal antibody (Alexa Fluor® 594) was used to counterstain tubulin at 1/100 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution.

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized THP-1 (human monocytic leukemia monocyte) (Right) HepG2 (human hepatocellular carcinoma epithelial cell) (Left) cells labelling RIP3 with ab325636 at 1/500 dilution (0.1ug) / Red compared with a Rabbit monoclonal IgG (ab172730) / Black isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody).

Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 dilution was used as the secondary antibody.

Negative control : HepG2.

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized 293T cells transfected with a human IL12B expression vector containing a HA-Myc-tag® (Upper) 293T cells transfected with a human IL12A expression vector containing a HA-Myc-tag® (Lower left) 293T cells transfected with an empty expression vector containing a myc-His-tag® (Lower right) cells labelling IL12 p40 with ab327081 at 1/50000 dilution (0.001ug) / Upper right and Lower compared with a Rabbit monoclonal IgG (ab172730) / Left isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody).

Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 dilution was used as the secondary antibody.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized KATO III (human stomach spherical) and SH-SY5Y (human neuroblastoma epithelial cell) labelling ACSL5 with ab327086 at 1/50 (10.26 μg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing cytoplasmic staining in KATO III cells and no staining in SH-SY5Y cells (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).
Low expression : SH-SY5Y.
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized 293T cells transfected with a human BTNL3 expression vector containing a HA-Myc-tag® (Upper left and middle) 293T cells transfected with a human BTNL8 expression vector containing a HA-Myc-tag® (Upper right) 293T cells transfected with a human BTNL9 expression vector containing a HA-Myc-tag® (Lower left) 293T cells transfected with an empty expression vector containing a myc-His-tag® (Lower right) cells labelling BTNL3 with ab327704 at 1/5000 dilution (0.01ug) compared with a Rabbit monoclonal IgG (ab172730) / Left isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody).

Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 dilution was used as the secondary antibody.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized Human iPSC derived ioSensory Neurons (ab317489) cells labelling CGRP-I with ab327004 at 1/50 (10.26 μg/ml) dilution , followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing cytoplasmic staining in human iPSC derived ioSensory Neurons (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab78078 Anti-beta III Tubulin mouse monoclonal antibody - Neuronal Marker was used to counterstain tubulin at 1/200 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution.

• ICC/IF

Lab

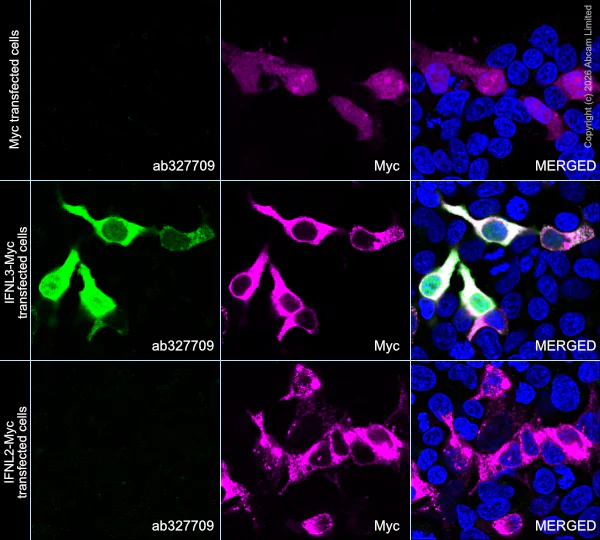

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HEK-293T cells transfected with an empty expression vector containing a myc-His-tag® HEK-293T (human epithelial cell line from embryonic kidney) transfected with a human IFNL3 expression vector containing a His-Myc tag HEK-293T (human epithelial cell line from embryonic kidney) transfected with a human IFNL2 expression vector containing a His-Myc tag cells labelling with ab327709 at 1/1000 (0.505 μg/ml) dilution , followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing positive staining in HEK-293T transfected with a human IFNL3 expression vector containing a His-Myc tag(shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab223894 Anti-Myc tag mouse monoclonal antibody (Alexa Fluor® 594) was used to counterstain tubulin at 1/100 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

ab32037 staining GRB2 in Wild-type HCT116 (positive) and HCT116-GRB2 knockout (KO) (negative) cells. The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated for 2 hours at room temperature with ab32037 at 0.2µg/ml (shown in green) and ab7291 Anti-alpha Tubulin antibody [DM1A] - Loading Control (shown in pseudocolour magenta). Cells were then incubated with ab150081, Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed at 1/1000 dilution and ab150120, Goat Anti-Mouse IgG H&L (Alexa Fluor^® 594) preadsorbed at 1/1000 dilution for 1 hour at room temperature. Nuclear DNA was labeled with DAPI (shown in blue). Image was acquired with a high-content analyser (Operetta CLS, Revvity) and a maximum intensity projection of confocal sections is shown.

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized 293T cells transfected with a human IFNL3 expression vector containing a HA-Myc-tag® (Upper) 293T cells transfected with a human IFNL2 expression vector containing a HA-Myc-tag® (Lower left) 293T cells transfected with an empty expression vector containing a myc-His-tag® (Lower right) cells labelling with ab327709 at 1/5000 dilution (0.01ug) / Upper right and Lower right compared with a Rabbit monoclonal IgG (ab172730) / Left isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody).

Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 dilution was used as the secondary antibody.

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized
293T (human embryonic kidney epithelial cell) cells transfected with a human LPL expression vector containing a myc-His-tag® (middle)
293T cells transfected with an empty expression vector containing a myc-His-tag® (Right)
labelling with ab328031 at 1/5000 dilution (0.01ug) compared with a Rabbit monoclonal IgG (ab172730) / Left isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody).

Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 dilution was used as the secondary antibody.

• ICC/IF

Lab

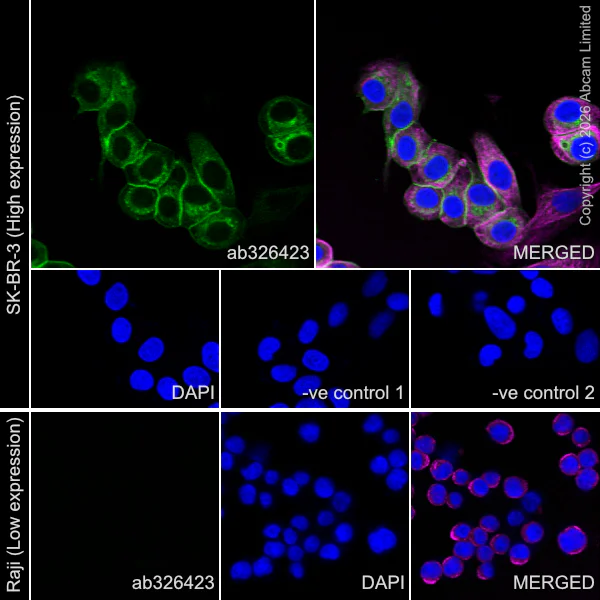

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized SK-BR-3 (human breast adenocarcinoma epithelial cell) and Raji (human Burkitt's lymphoma B lymphocyte) cells labelling EMP2 with ab326423 at 1/50 (9.9 μg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing membranous and cytoplasmic staining in SK-BR-3 cell line and no staining in Raji cell line(shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).
Low expression : Raji.
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

-ve control 1 : ab326423 at 1/50 dilution, followed by ab150120 at 1/1000 dilution.
-ve control 2 : ab7291 at 1/1000 dilution, followed by ab150081 at 1/1000 dilution.

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Intracellular flow cytometric analysis of 90% methanol permeabilized HeLa cells labelling p21 with ab109520 at a dilution of 1/100 (red). Cells were fixed with 4% paraformaldehyde. Goat anti-Rabbit IgG H&L (Alexa Fluor® 488, ab150081) preadsorbed (1/5000) was used as the secondary antibody. Black - Isotype control, rabbit monoclonal IgG (ab172730). Blue - Unlabelled control, cells without incubation with primary and secondary antibodies.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized TT (human thyroid carcinoma epithelial cell) SH-SY5Y (human neuroblastoma epithelial cell) cells labelling DLL1 with ab327088 at 1/50 (10.18 μg/ml) dilution , followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing membranous and cytoplasmic staining in TT cells and no staining in SH-SY5Y cells (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Low expression : SH-SY5Y (PMID : 28525978). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

-ve control 1 : ab327088 at 1/50 dilution, followed by ab150120 at 1/1000 dilution.-ve control 2 : ab7291 at 1/1000 dilution, followed by ab150081 at 1/1000 dilution.

• Flow Cyt

Lab

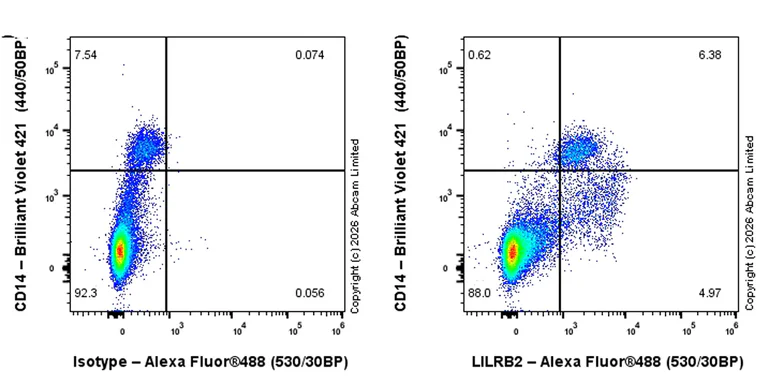

Flow Cytometry - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Flow cytometric analysis of Human PBMC (human peripheral blood mononuclear cell) cells labelling ILT-4 with ab327056 at 1/500 dilution (0.1ug) / Right compared with a Rabbit monoclonal IgG (ab172730) / Left isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody).

Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 dilution was used as the secondary antibody.

Gated on viable cells. Cells were co-stained with CD14 conjugated to Brilliant Violet 421.

• Flow Cyt

Lab

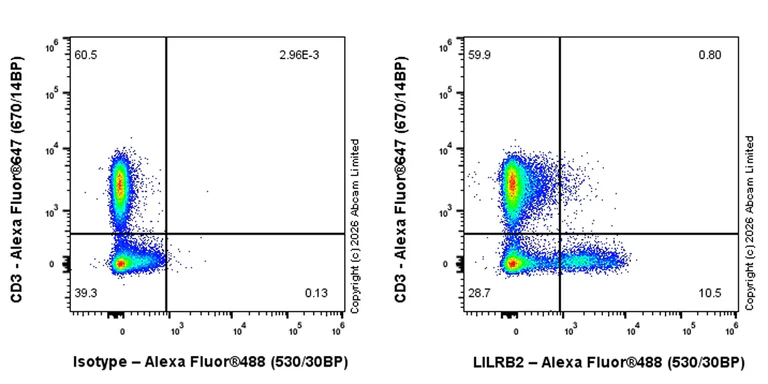

Flow Cytometry - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Flow cytometric analysis of Human PBMC (human peripheral blood mononuclear cell) cells labelling ILT-4 with ab327056 at 1/500 dilution (0.1ug) / Right compared with a Rabbit monoclonal IgG (ab172730) / Left isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody).

Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 dilution was used as the secondary antibody.

Gated on viable cells. Cells were co-stained with CD3 conjugated to Alexa Fluor®647.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

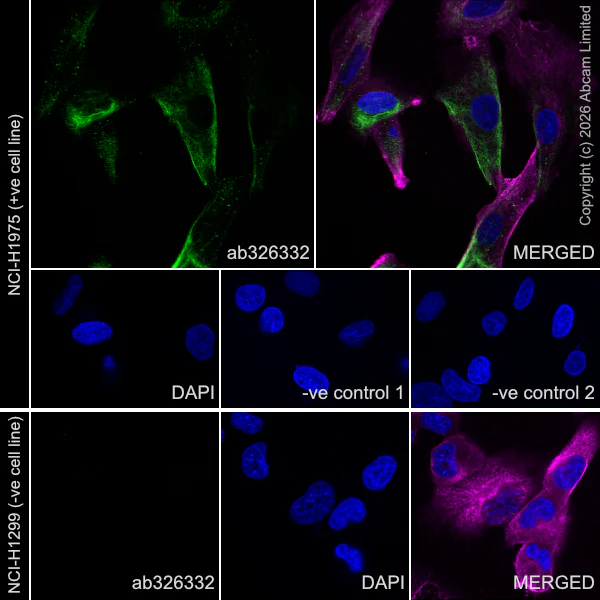

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized NCI-H1975 (human adenocarcinoma lung epithelial cell) and NCI-H1299 (human lung carcinoma epithelial cell) labelling Ninjurin -1 with ab326332 at 1/200 (2.54 µg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing cytoplasmic staining in NCI-H1975 (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).
Negative control : NCI-H1299(PMID : 35395804)
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

-ve control 1 : ab326332 at 1/200 dilution, followed by ab150120 at 1/1000 dilution.
-ve control 2 : ab7291 at 1/1000 dilution, followed by ab150081 at 1/1000 dilution.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

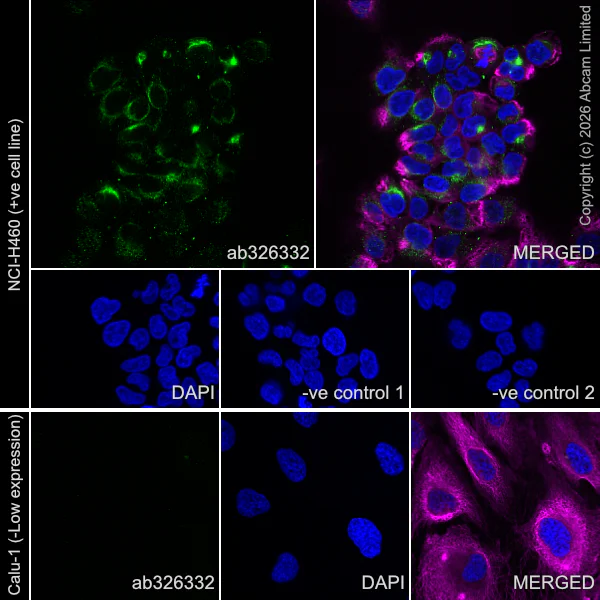

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized NCI-H460 (human Large Cell Lung Cancer epithelial cell) and Calu-1 (human lung epidermoid carcinoma epithelial cell) cells labelling Ninjurin -1 with ab326332 at 1/200 (2.54 µg/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing cytoplasmic staining in NCI-H460 (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).
Low expression : Calu-1(PMID : 35395804)
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

-ve control 1 : ab326332 at 1/200 dilution, followed by ab150120 at 1/1000 dilution
-ve control 2 : ab7291 at 1/1000 dilution, followed by ab150081 at 1/1000 dilution.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Immunofluorescent analysis of 100% methanol-fixed, 0.1% TritonX-100 permeabilized Raji (human Burkitt's lymphoma B lymphocyte) cells labelling CD37 with ab300400 at 1/500 (1.086 ug/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2 ug/ml dilution (Green). Confocal image showing cytoplasmic and membranous staining in Raji cell line. Negative control : MCF7 (PMID : 33652767) is observed. ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/ml dilution.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized TT (human thyroid carcinoma epithelial cell) HeLa (human cervical adenocarcinoma epithelial cell) cells labelling CGRP-I with ab327004 at 1/50 (10.26 μg/ml) dilution , followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing cytoplasmic staining in TT cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). Negative control : HeLa

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution.

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (AB150081)

Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized Human PBMC (human peripheral blood mononuclear cell) were treated with cell stimulation cocktail for 6h (Lower left and lower right) / Untreated human PBMC (Upper left and upper right) cells labelling IL-2 with ab323413 at 1/500 dilution (0.1ug)/ Right compared with a Rabbit monoclonal IgG (ab172730) / Left isotype control.

Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 dilution was used as the secondary antibody.

Cells were co-stained with anti human CD3 conjugated to Alexa Fluor®647.
