Goat Anti-Mouse IgM mu chain (Alexa Fluor® 488)

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Goat Anti-Mouse IgM mu chain (Alexa Fluor® 488) (AB150121)

ICC/IF image of ab20346 stained HeLa cells. The cells were 4% formaldehyde fixed (10 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then incubated in 1% BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to block non-specific protein-protein interactions. The cells were then incubated overnight at +4°C with ab20346 at 1/500 dilution. The secondary antibody (green) was ab150121 used at 2µg/ml for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43µM.

The negative control (inset) is a secondary-only assay to demonstrate low non-specific binding of the secondary antibody.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Goat Anti-Mouse IgM mu chain (Alexa Fluor® 488) (AB150121)

ab230171 staining Vimentin in HeLa-VIM cells. The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with ab230171 at 1µg/ml and ab6046. Cells were then incubated with ab150121 at 1/1000 dilution (shown in green) and ab150080 at 1/1000 dilution (shown in pseudocolour red). Nuclear DNA was labelled with DAPI (shown in blue).

Also suitable in cells fixed with 100% methanol (5 min).

Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Goat Anti-Mouse IgM mu chain (Alexa Fluor® 488) (AB150121)

ab53521 staining A2B5 in primary rat neurons/glia, DIV14 (prepared from E18 rat hippocampal brain area, obtained from Transnetyx Tissue by BrainBits, LLC, cat.no. SDHEP) cells. The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.1% PBS-Tween for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with ab53521 at 1µg/ml and ab6046. Cells were then incubated with ab150121 at 1/1000 dilution (shown in green) and ab150080 at 1/1000 dilution (shown in pseudocolour red). Nuclear DNA was labelled with DAPI (shown in blue).

Image was acquired with a confocal microscope (Leica-Microsystems TCS SP8) and a single confocal section is shown.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Goat Anti-Mouse IgM mu chain (Alexa Fluor® 488) (AB150121)

ab53521 staining A2B5 in primary mouse neurons/glia, DIV14 (prepared from E18 mouse hippocampal brain area, obtained from Transnetyx Tissue by BrainBits, LLC, cat.no. C57EHP) cells. The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.1% PBS-Tween for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at 4°C with ab53521 at 1µg/ml and ab6046. Cells were then incubated with ab150121 at 1/1000 dilution (shown in green) and ab150080 at 1/1000 dilution (shown in pseudocolour red). Nuclear DNA was labelled with DAPI (shown in blue).

Image was acquired with a confocal microscope (Leica-Microsystems TCS SP8) and a single confocal section is shown.

• Alexa Fluor®

Unknown

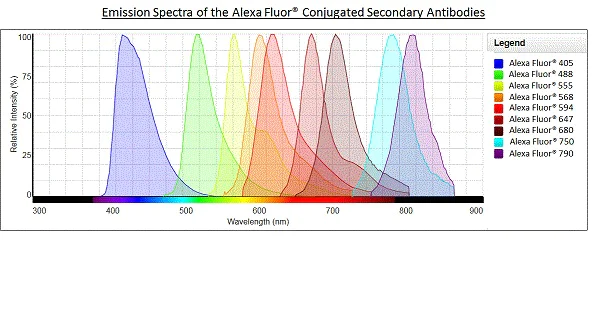

Alexa Fluor® - Goat Anti-Mouse IgM mu chain (Alexa Fluor® 488) (AB150121)
