重组Anti-TRAF6抗体[EP592Y]

• ICC/IF

Unknown

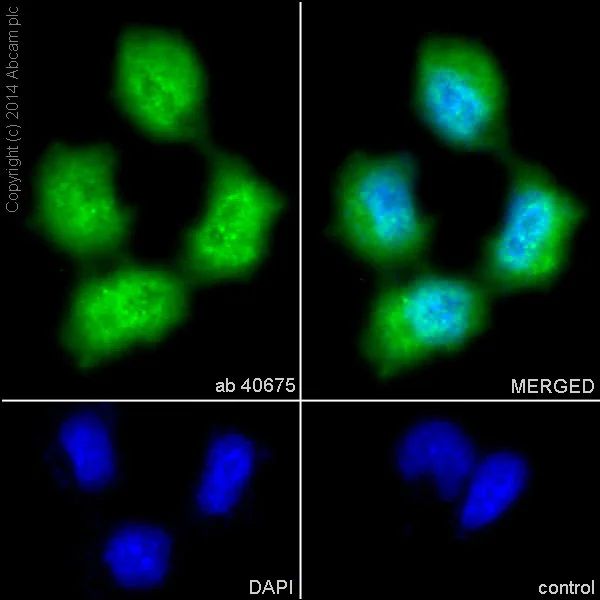

Immunocytochemistry/ Immunofluorescence - Anti-TRAF6 antibody [EP592Y] (AB40675)

Immunocytochemistry/Immunofluorescence analysis of HeLa cells labelling TRAF6 with purified ab40675 at 1/50. Cells were fixed with 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. ab150077, an Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/500) was used as the secondary antibody. DAPI (blue) was used as the nuclear counterstain.

Control : primary antibody (1/50) and secondary antibody, ab150120, an Alexa Fluor^® 594-conjugated goat anti-mouse IgG (1/500).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-TRAF6 antibody [EP592Y] (AB40675)

Immunocytochemistry/Immunofluorescence analysis of HeLa cells labelling TRAF6 with unpurified ab40675 at 1/250.

• IHC-P

Unknown

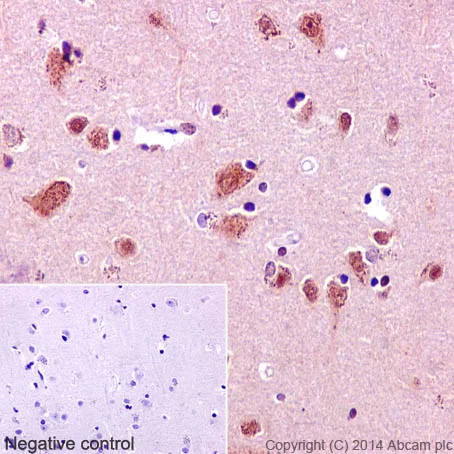

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TRAF6 antibody [EP592Y] (AB40675)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human cerebral cortex tissue labelling TRAF6 with purified ab40675 at 1/50. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. ab97051, a HRP-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody (1/500). Negative control using PBS instead of primary antibody. Counterstained with hematoxylin.

• IHC-P

Unknown

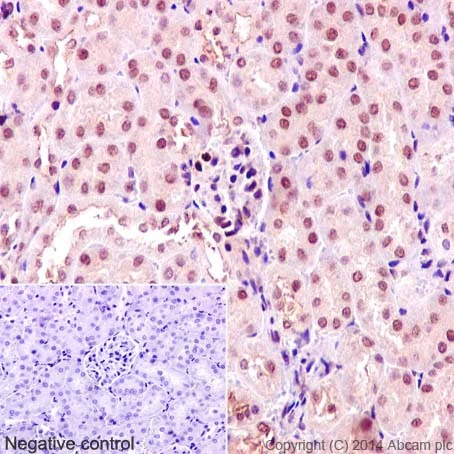

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TRAF6 antibody [EP592Y] (AB40675)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of mouse kidney tissue labelling TRAF6 with purified ab40675 at 1/50. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. ab97051, a HRP-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody (1/500). Negative control using PBS instead of primary antibody. Counterstained with hematoxylin.

• WB

Lab

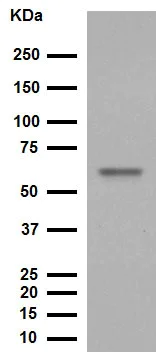

Western blot - Anti-TRAF6 antibody [EP592Y] (AB40675)

Blocking buffer and concentration : 5% NFDM/TBST.

Diluting buffer and concentration : 5% NFDM /TBST.

All lanes:

Western blot - Anti-TRAF6 antibody [EP592Y] (ab40675) at 1/1000 dilution

All lanes:

HEK293 cell lysate at 20 µg

Secondary

All lanes:

Peroxidase-conjugated goat anti-rabbit IgG (H+L) at 1/1000 dilution

Predicted band size: 60 kDa

Observed band size: 58 kDa

false

• WB

Lab

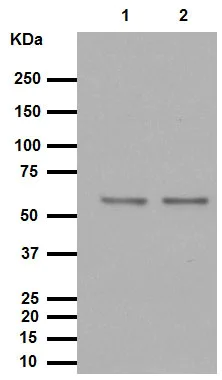

Western blot - Anti-TRAF6 antibody [EP592Y] (AB40675)

Blocking buffer and concentration : 5% NFDM/TBST.

Diluting buffer and concentration : 5% NFDM /TBST.

All lanes:

Western blot - Anti-TRAF6 antibody [EP592Y] (ab40675) at 1/5000 dilution

Lane 1:

Jurkat cell lysate at 20 µg

Lane 2:

HeLa cell lysate at 20 µg

Secondary

All lanes:

Peroxidase-conjugated goat anti-rabbit IgG (H+L) at 1/1000 dilution

Predicted band size: 60 kDa

Observed band size: 58 kDa

false

• WB

Lab

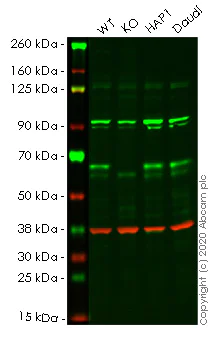

Western blot - Anti-TRAF6 antibody [EP592Y] (AB40675)

Lanes 1- 4 : Merged signal (red and green). Green - ab40675 observed at 65 kDa. Red - Anti-GAPDH antibody [6C5] - Loading Control (ab8245) observed at 37 kDa.

ab40675 was shown to react with TRAF6 in wild-type HeLa cells in western blot. Loss of signal was observed when knockout cell line ab266009 (knockout cell lysate ab257760) was used. Wild-type HeLa and TRAF6 knockout HeLa cell lysates were subjected to SDS-PAGE. Membrane was blocked for 1 hour at room temperature in 0.1% TBST with 3% non-fat dried milk. ab40675 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) overnight at 4°C at a 1 in 500 dilution and a 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^®800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^®680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-TRAF6 antibody [EP592Y] (ab40675) at 1/500 dilution

Lane 1:

Wild-type HeLa cell lysate at 20 µg

Lane 2:

TRAF6 knockout HeLa cell lysate at 20 µg

Lane 2:

Western blot - Human TRAF6 knockout HeLa cell line (<a href='/products/cell-lines/human-traf6-knockout-hela-cell-line-ab266009'>ab266009</a>)

Lane 3:

HAP1 cell lysate at 20 µg

Lane 4:

Daudi cell lysate at 20 µg

Predicted band size: 60 kDa

Observed band size: 65 kDa

false

• WB

Unknown

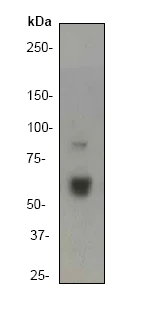

Western blot - Anti-TRAF6 antibody [EP592Y] (AB40675)

All lanes:

Western blot - Anti-TRAF6 antibody [EP592Y] (ab40675) at 1/2000 dilution

All lanes:

10ug Jurkat cell lysate

Predicted band size: 60 kDa

Observed band size: 58 kDa

false

• WB

Lab

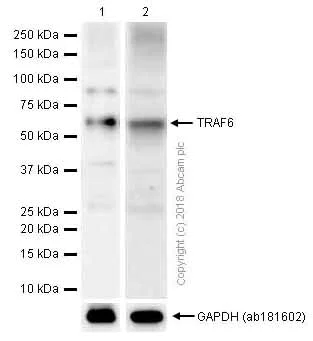

Western blot - Anti-TRAF6 antibody [EP592Y] (AB40675)

All lanes:

Western blot - Anti-TRAF6 antibody [EP592Y] (ab40675) at 1/1000 dilution

Lane 1:

Raw264.7 (Mouse Abelson murine leukemia virus-induced tumor macrophage) whole cell lysates at 15 µg

Lane 2:

PC-12 (Rat adrenal gland pheochromocytoma) whole cell lysates at 15 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 60 kDa

false

• WB

Lab

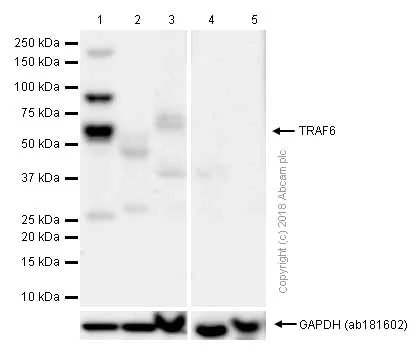

Western blot - Anti-TRAF6 antibody [EP592Y] (AB40675)

This antibody is unsuitable for detecting tissue lysates.

All lanes:

Western blot - Anti-TRAF6 antibody [EP592Y] (ab40675) at 1/1000 dilution

Lane 1:

HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysates at 15 µg

Lane 2:

Human heart lysates at 15 µg

Lane 3:

Human skeletal muscle lysates at 15 µg

Lane 4:

Mouse skeletal muscle lysates at 15 µg

Lane 5:

Rat skeletal muscle lysates at 15 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 60 kDa

false

Exposure time: 70s
