AB241992

Anti-TMEM109/Mitsugumin-23抗体

Name: TMEM109/Mitsugumin-23抗体 (ab241992)| Abcam中文官网
Brand: Abcam Limited
SKU: AB241992
Price: 4864 CNY
Availability: InStock

Anti-TMEM109/Mitsugumin-23 antibody

Be the first to review this product! Submit a review

(1 Publication)

Rabbit Polyclonal TMEM109/Mitsugumin-23 antibody. Suitable for IP, WB and reacts with Human, Mouse samples. Cited in 1 publication. Immunogen corresponding to Synthetic Peptide within Human TMEM109 aa 1-100.

查看别名

Voltage-gated monoatomic cation channel TMEM109, Mitsugumin-23, Transmembrane protein 109, Mg23, TMEM109

2 Images

Supplier Data

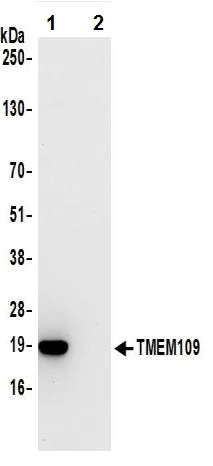

Immunoprecipitation - Anti-TMEM109/Mitsugumin-23 antibody (AB241992)

TMEM109/Mitsugumin-23 was immunoprecipitated from HEK-293T (human epithelial cell line from embryonic kidney transformed with large T antigen) whole cell lysate (1.0 mg per IP reaction; 20% of IP loaded) using ab241992 at 20 μL per reaction. Western blot was performed from the immunoprecipitate using ab241992 at 1/100 dilution.

Lane 1 : ab241992 IP in HEK-293T whole cell lysate.
Lane 2 : Control IgG in HEK-293T whole cell lysate.

Detection : Chemiluminescence with an exposure time of 10 seconds.

Prepared using NETN lysis buffer.

All lanes:

Immunoprecipitation - Anti-TMEM109/Mitsugumin-23 antibody (ab241992)

Predicted band size: 26 kDa

false

Supplier Data

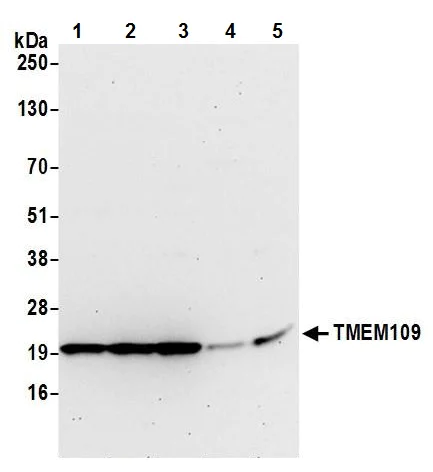

Western blot - Anti-TMEM109/Mitsugumin-23 antibody (AB241992)

Prepared using NETN lysis buffer.

All lanes:

Western blot - Anti-TMEM109/Mitsugumin-23 antibody (ab241992) at 1/1000 dilution

Lane 1:

HeLa (human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 50 µg

Lane 2:

HEK-293T (human epithelial cell line from embryonic kidney transformed with large T antigen) whole cell lysate at 50 µg

Lane 3:

Jurkat (human T cell leukemia cell line from peripheral blood) whole cell lysate at 50 µg

Lane 4:

TCMK-1 (Mouse kidney epithelial cell line) whole cell lysate at 50 µg

Lane 5:

NIH/3T3 (mouse embryo fibroblast cell line) whole cell lysate at 50 µg

Predicted band size: 26 kDa

true

Exposure time: 30s

关键信息

宿主种属

Rabbit

克隆

Polyclonal

亚型

IgG

不含载体蛋白

反应种属

Mouse, Human

应用

WB, IP

applications

免疫原

Synthetic Peptide within Human TMEM109 aa 1-100. The exact immunogen used to generate this antibody is proprietary information.

Q9BVC6

style

left-column

反应性数据

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "", "IP-species-notes": "20 μl/mg lysate", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "" }, "Mouse": { "IP-species-checked": "guaranteed", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "" } } }

style

left-column

style

left-column

性能和储存信息

形式

Liquid

纯化工艺

Affinity purification Immunogen

纯化说明

Antibody was affinity purified using an epitope specific to TMEM109/Mitsugumin-23 immobilized on solid support.

存储溶液

pH: 6.8 - 7.4 Preservative: 0.09% Sodium azide Constituents: Tris buffered saline, 1% BSA

运输条件

Blue Ice

分装信息

Upon delivery aliquot

储存信息

Avoid freeze / thaw cycle

style

left-column

补充信息

This supplementary information is collated from multiple sources and compiled automatically.

TMEM109 also known as Mitsugumin-23 (MG23) functions as a transmembrane protein with a mass of approximately 20-25 kDa. It resides in the endoplasmic reticulum membrane where it acts as an important component in maintaining cellular homeostasis. This protein is primarily observed across various tissues with a higher expression in muscle tissue and certain types of epithelial cells. Its structure suggests roles in calcium signaling due to domains that allow ion passage across cellular membranes.

Biological function summary

TMEM109 plays a role in the regulation of calcium ion concentrations within cells contributing to the mitochondrial permeability transition pore (MPTP) complex. This complex controls mitochondrial function by regulating the passage of ions and small metabolites which is critical for cell survival and apoptosis. Through these activities TMEM109 influences processes like muscle contraction and cell death highlighting its significance in cellular energy management and programmed cell death pathways.

Pathways

TMEM109 has roles in calcium signaling and apoptotic pathways two significant biological processes for cellular health. In the calcium signaling pathway it interacts with other proteins such as SERCA1 (Sarcoplasmic/Endoplasmic Reticulum Calcium ATPase 1) to help manage calcium ion levels within cells. In apoptotic pathways TMEM109's involvement in the MPTP complex links it to the BAX protein which is an essential regulator of apoptosis facilitating the release of cytochrome c from mitochondria triggering cascade events leading to cell death.

Irregular function or expression of TMEM109 associates with conditions such as muscular dystrophy and neurodegenerative disorders. For example in muscular dystrophy altered calcium regulation and signaling through MG23 may impact muscle contraction and integrity. Additionally abnormal TMEM109 activity can connect to Alzheimer’s disease where disrupted calcium homeostasis and apoptotic signaling play roles. These disease connections make TMEM109 a considerable target for therapeutic research and intervention often intersecting pathways with proteins like dystrophin in muscular dystrophy cases and amyloid precursor protein (APP) in Alzheimer's disease.

style

left-column

style

left-column

产品实验方案

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

靶点信息

Functions as a voltage-gated monoatomic cation channel permeable to both potassium and calcium (By similarity). Plays a role in the cellular response to DNA damage (PubMed : 23542032).

See full target information TMEM109

style

left-column

文献 (1)

Recent publications for all applications. Explore the full list and refine your search

Journal of cellular and molecular medicine : PubMed32757436

2020

Quantitative proteomics identified 3 oxidative phosphorylation genes with clinical prognostic significance in gastric cancer.

Applications

Unspecified application

Species

Unspecified reactive species

Fei Su,Fen-Fang Zhou,Tao Zhang,Dan-Wen Wang,Da Zhao,Xiao-Ming Hou,Mao-Hui Feng

View all publications
