Anti-PD-L1 抗体 [28-8]

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [28-8] (AB205921)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human non-small cell lung cancer tissue labelling PD-L1 with ab205921. Tumor cells and immuno cells localized within the stroma show PD-LA plasma membrane staining.

For antigen retrival buffer, Universal HIER antigen retrieval reagent (ab208572) was used.
For IHC detection kit, Rabbit specific IHC polymer detection kit HRP/DAB (ab209101) is recommended.

• mIHC

Lab

Multiplex immunohistochemistry - Anti-PD-L1 antibody [28-8] (AB205921)

Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded Human tonsil tissue staining PD-L1 with ab205921 at a 1 : 500 (2.19 ug/ml) dilution; PD1 with ab237728 at 1 : 2000 (0.525 ug/ml) dilution and CD68 with ab213363 at 1 : 500 (1.26 ug/ml) dilution followed by a ready to use secondary antibody Opal Polymer HRP Ms + Rb.

Panel A : merged staining of anti-CD68 (magenta; Opal^™690), anti-PD-L1 (green; Opal^™520) and anti-PD1 (red; Opal^™570) on human tonsil.
Panel B : anti-PD-L1 stained on cells involved in T cell inhibition.
Panel C : anti-PD1 stained on antigen-stimulated T cells.
Panel D : anti-CD68 stained on macrophages.

The section was incubated in three rounds of staining : in the order of ab213363 and ab205921 for 30 mins, then ab237728 for 10 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.

The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with an Opal^™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins

• ICC/IF

AbReview61595****

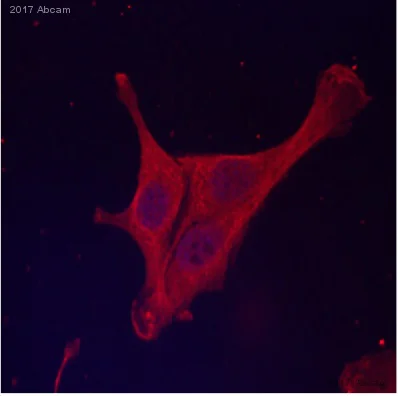

Immunocytochemistry/ Immunofluorescence - Anti-PD-L1 antibody [28-8] (AB205921)

Paraformaldehyde-fixed Triton X-100 permeabilized U-87 MG (human glioblastoma-astrocytoma epithelial cell line) cells stained for PD-L1 (red) using ab205921 at 1/200 dilution in ICC/IF followed by CF568 Donkey anti-rabbit IgG(H+L) secondary antibody at 1/500 dilution.

Alexa Fluor^® 488 (ab209959) and Alexa Fluor^® 647 (ab209960) conjugated versions are available for this clone.

This image is courtesy of an Abreview submitted by Dr. Dimitra Kalamida.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [28-8] (AB205921)

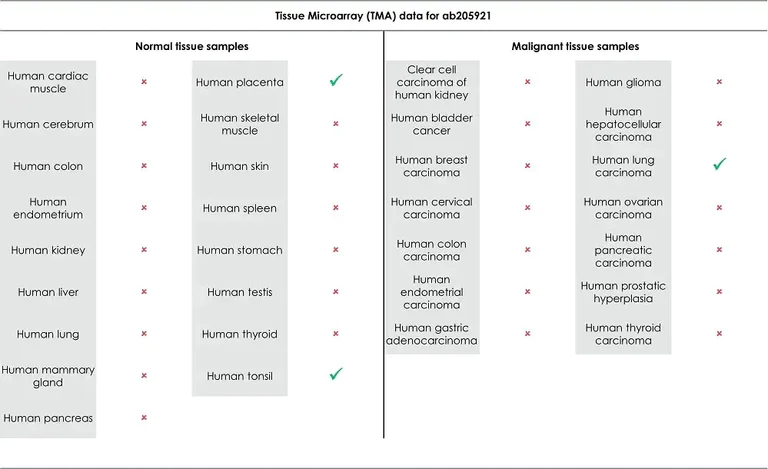

Tissue Microarrays stained for Anti-PD-L1 antibody [28-8] using ab205921 in immunohistochemical analysis. This table provides a detailed overview of positive (tick mark) and negative (cross mark) staining per sample type tested. The sections were pre-treated using Heat mediated antigen retrieval using ab208572 (Universal HIER antigen retrieval reagent). The sections were incubated with ab205921 at +4°C overnight. For IHC detection kit, Rabbit specific IHC polymer detection kit HRP/DAB (ab209101) is recommended.

• IHC-P

Collaborator

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [28-8] (AB205921)

ab205921 specificity testing by Immunohistochemistry (KO testing) : Loss of detection on KO Cells.

Strong IHC detection with anti-PD-L1 (ab205921, clone 28-8) is seen in human lung adenocarcinoma tumor cell line L2987. PDL1 gene was edited in L2987 cells using TALEN constructs targeting exon4 of human PD-L1, transcript variant 1 (NM_014143.3) and complete knock out (K.O) confirmed by deep sequencing in clone L2-14. IHC detection is completely eliminated in the L2987 L2-14 K.O. cell line.

For recommended Immunohistochemistry (IHC) protocol, please refer to the protocol book in the product protocol section.

Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [28-8] (AB205921)

Immunohistochemical analysis of formalin-fixed paraffin-embedded human tonsil labelling PD-L1 with ab205921 at a dilution of 2µg/ml. The immunostaining was performed on a Ventana DISCOVERY ULTRA (Roche Tissue Diagnostics) instrument with an OptiView DAB IHC Detection Kit. Heat mediated antigen retrieval was conducted for 32min with ULTRA cell conditioning solution (CC1 pH8.5). ab205921 anti PD-L1 antibody was incubated at 37°C for 16min. Sections were counterstained is with Hematoxylin II. Image inset shows absence of staining in secondary antibody only control.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [28-8] (AB205921)

Immunohistochemical analysis of formalin-fixed paraffin-embedded human placenta labelling PD-L1 with ab205921 at a dilution of 2µg/ml. The immunostaining was performed on a Ventana DISCOVERY ULTRA (Roche Tissue Diagnostics) instrument with an OptiView DAB IHC Detection Kit. Heat mediated antigen retrieval was conducted for 32min with ULTRA cell conditioning solution (CC1 pH8.5). ab205921 anti PD-L1 antibody was incubated at 37°C for 16min. Sections were counterstained is with Hematoxylin II. Image inset shows absence of staining in secondary antibody only control.

• IHC-P

PubMed

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [28-8] (AB205921)

Formalin-fixed paraffin-embedded human lung cancer tissue stained for PD-L1 using ab205921.

Representative images of PD-L1 expression.
(A) <1.0% (B) 1.0–4.9% (C) 5.0–9.9% (D) 10.0–49.9% and (E) ≥50.0% PD-L1-positive cells (magnification 200×).

From image 3 of Nakamura et al.

Nakamura et al PLoS One. 2017; 12(10) : e0186192. Published online 2017 Oct 19. doi : 10.1371/journal.pone.0186192' PMID : 29049375

|Reproduced under Creative Commons Attribution License which permits unrestricted use distribution and reproduction in any medium provided the original author and source are credited.

Nakamura et al PLoS One. 2017; 12(10): e0186192. Published online 2017 Oct 19. doi: 10.1371/journal.pone.0186192

• WB

Lab

Western blot - Anti-PD-L1 antibody [28-8] (AB205921)

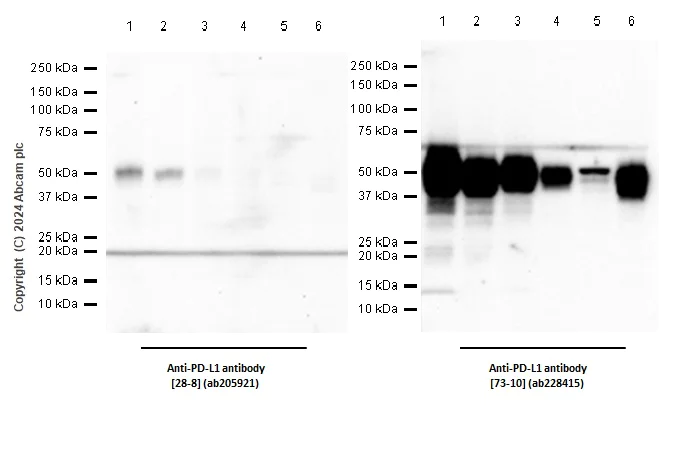

ab228415 works better than ab205921 in western blot testing. Blocking/Diluting buffer and concentration : 5% NFDM/TBST

All lanes:

Western blot - Anti-PD-L1 antibody [28-8] (ab205921) at 1/1000 dilution

Lane 1:

MDA-MB-231(human breast adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 2:

U-87 MG (human glioblastoma astrocytoma epithelial cell) whole cell lysate at 20 µg

Lane 3:

PC-3 (human prostate adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 4:

A375 (human malignant melanoma epithelial cell) whole cell lysate at 20 µg

Lane 5:

HeLa (human cervix adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 6:

A549 (human lung carcinoma epithelial cell) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 40-60 kDa

false

Exposure time: 100s

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [28-8] (AB205921)

Immunohistochemical analysis of formalin-fixed, paraffin-embedded Human head and neck squamous cell carcinoma tissue labeling PD-L1 with ab205921 at 2 μg/ml. Counterstained with Hematoxylin.

For antigen retrival buffer, Universal HIER antigen retrieval reagent (ab208572) was used.
For IHC detection kit, Rabbit specific IHC polymer detection kit HRP/DAB (ab209101) is recommended.

• IHC-P

Supplier Data

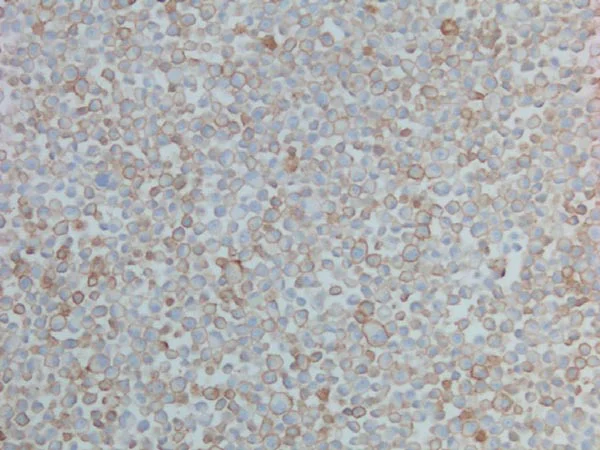

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [28-8] (AB205921)

Immunohistochemical analysis of formalin-fixed paraffin-embedded L2987 (Human lung adenocarcinoma cell line with endogenous PD-L1 expression) cells labeling PD-L1 with ab205921 at 2 μg/ml. Counterstained with Hematoxylin.

For antigen retrival buffer Universal HIER antigen retrieval reagent (ab208572) was used.
For IHC detection kit Rabbit specific IHC polymer detection kit HRP/DAB (ab209101) is recommended.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [28-8] (AB205921)

Paraformaldehyde-fixed paraffin-embedded human placenta tissue stained for PD-L1 using ab205921 at 1/100 dilution in immunohistochemical analysis.

• IHC-P

Lab

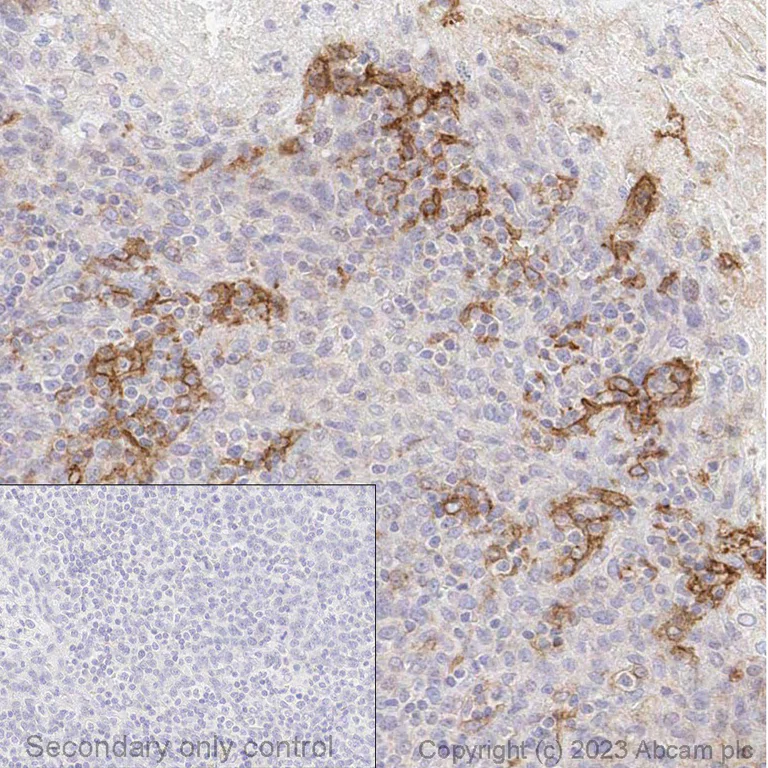

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [28-8] (AB205921)

IHC image of ab205921 staining PD-L1 in human tonsil formalin fixed paraffin embedded tissue sections* performed on a Leica BOND RX (Polymer Refine kit). The section was pre-treated using heat mediated antigen retrieval with EDTA buffer (pH9 epitope retrieval solution 2) for 30 mins at 98°C. The section was then incubated with ab205921 5μg/ml working concentration for 60 mins at room temperature and detected using an HRP conjugated compact polymer system for 8 minutes at room temperature. DAB was used as the chromogen for 10 minutes at room temperature. The section was then counterstained with hematoxylin blued dehydrated cleared and mounted with DPX.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions primary antibody concentration and antibody incubation times.

*Tissue obtained from the Human Research Tissue Bank supported by the NIHR Cambridge Biomedical Research Centre

• IHC-P

AbReview54457****

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [28-8] (AB205921)

Immunohistochemical staining of PD-L1 in formalin fixed, paraffin embedded human non-squamous non-small cell lung cancer (NSQ-NSCLC) using ab205921 at a dilution of 1/400, incubated for an hour at room temperature. Heat mediated antigen retrieval was carried out in low pH buffer and the sample was blocked with peroxidase blocking buffer for 3 minutes.

This image was courteously provided by Dr. Kai Schmitt from the Institute of Pathology, Saarbrücken-Rastpfuhl.

• Flow Cyt

Collaborator

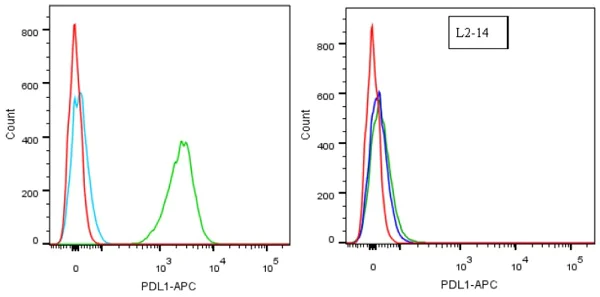

Flow Cytometry - Anti-PD-L1 antibody [28-8] (AB205921)

ab205921 specificity testing by Flow Cytometry (KO testing) : Loss of detection on KO cells.Strong detection with anti-PD-L1 (ab205921 clone 28-8) TALEN constructs targeting exon4 of human PD-L1 transcript variant 1 (NM_014143.3) and complete knock out (K.O) confirmed by deep sequencing in clone L2-14. Cell surface staining is almost completely eliminated in the L2987 L2-14 KO cell line. For recommended Flow Cytometry (Flow Cyt) protocol please refer to the protocol book in the protocol section. Alexa Fluor^® 488 (ab209959) and Alexa Fluor^® 647 (ab209960) conjugated versions are available for this clone.

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-PD-L1 antibody [28-8] (AB205921)

Immunocytochemistry analysis of CHO-PDL1 (PD-L1 stably expessed Chinese hamster ovary epithelial cell) labeling PD-L1 with purified ab205921 at 1/400 dilution. Cells were fixed with 4% Paraformaldehyde and permeabilised with 0.1% tritonX-100. Goat anti rabbit IgG (Alexa Fluor^® 488 ab150077) at 1/1000 (2 μg/ml) was used as the secondary antibody. ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) 1/200 (2.32 μg/ml) was used as counterstain. Nuclei were stained blue with DAPI.
Negative controls : Cells not transfected with PD-L1 and both the transfected and mock tranfected cells without the primary antibody.

• IHC-P

Collaborator

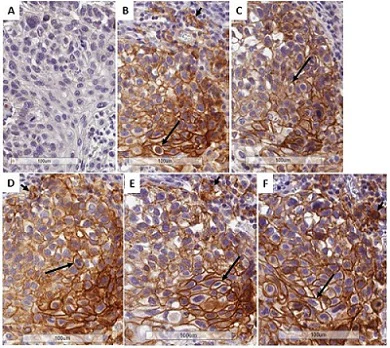

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [28-8] (AB205921)

Immunohistochemical analysis of CHO PD-L1 cells with ab205921 at 2 μg/ml.
High power view
A) Rabbit IgG, 5 μg/mL. No staining
B) Anti PD-L1, 2 μg/mL (ab205921 batches 1)
C) Anti PD-L1, 2 μg/mL (ab205921 batches 3)
D) Anti PD-L1, 2 μg/mL (ab205921 batches 4)
E) Anti PD-L1, 2 μg/mL (ab205921 batches 5)
F) Anti PD-L1, 2 μg/mL (ab205921 batches 6)
G) Anti PD-L1, 2 μg/mL (ab205921 batches 7)

All batches/lots (1,3,4,5,6,7) showed consistent results.

Note strong, moderate, and weak (red, yellow, and white arrows respectively) plasma membrane staining of CHO PD-L1 transfected cells

For recommended Immunohistochemistry (IHC) protocol, please refer to the protocol book in the Product Protocol section.

Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [28-8] (AB205921)

IHC image of ab205921 staining PD-L1 in PD-L1 Dynamic Range Analyte Control formalin fixed paraffin embedded cell lines (HistoCyte Laboratories), performed on a Leica BOND RX (Polymer Refine kit). The section was pre-treated using heat mediated antigen retrieval with EDTA buffer (pH9, epitope retrieval solution 2) for 30 mins at 98°C. The section was then incubated with ab205921, 5μg/ml working concentration, for 60 mins at room temperature and detected using an HRP conjugated compact polymer system for 8 minutes at room temperature. DAB was used as the chromogen for 10 minutes at room temperature. The section was then counterstained with hematoxylin, blued, dehydrated, cleared and mounted with DPX.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [28-8] (AB205921)

Anti-PD-L1 antibody [28-8] (ab205921)
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human tonsil tissue labelling PD-L1 with ab205921 at a dilution of 1 : 400. Heat mediated antigen retrieval was performed using AR9 antigen retrieval solution, and microwave treatment for 15 min at 20% power. Anti-Rabbit/Mouse HRP polymer (PerkinElmer Opal Polymer HRP Ms Plus Rb) was used as secondary antibody. Opal tyramide amplification was performed using Opal 520 fluorophore. Counterstained with DAPI stain. Image scanned with Vectra 3.0 and analyzed via Phenochart software.
This image was courteously provided by Dr. Houssein Abdul Sater, Georgia Cancer Center.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [28-8] (AB205921)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human melanoma tissue labelling PD-L1 with ab205921. Tumor cells show weak and partial postive PD-L1 expresseion in the plasma membrane. PD-L1 positive tumor associated immunoe cells are also stained.

For antigen retrival buffer Universal HIER antigen retrieval reagent (ab208572) was used.
For IHC detection kit Rabbit specific IHC polymer detection kit HRP/DAB (ab209101) is recommended.

• IHC-Fr

Lab

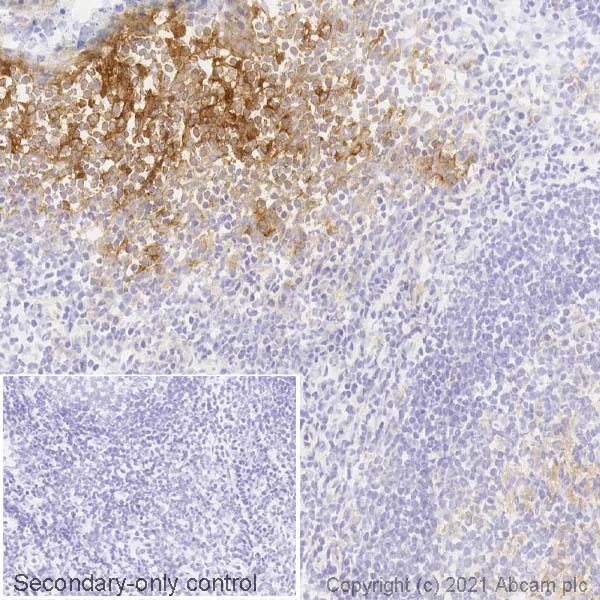

Immunohistochemistry (Frozen sections) - Anti-PD-L1 antibody [28-8] (AB205921)

IHC image of PD-L1 staining in a section of frozen normal human tonsil* performed on a Leica BOND™ system using the standard protocol. The section was fixed in 10% paraformaldehyde (10 min) prior to staining. The section was incubated with ab205921 1ugml for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset secondary-only control image is taken from an identical assay without primary antibody.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions primary antibody concentration and antibody incubation times.

*Tissue obtained from the Human Research Tissue Bank supported by the NIHR Cambridge Biomedical Research Centre

• IHC-P

Collaborator

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [28-8] (AB205921)

Immunohistochemical analysis of CHO Parental cells with ab205921 at 2 μg/ml.
High power view
A) Rabbit IgG 5 μg/mL. No staining
B) Anti PD-L1 2 μg/mL (ab205921 batches 1)
C) Anti PD-L1 2 μg/mL (ab205921 batches 3)
D) Anti PD-L1 2 μg/mL (ab205921 batches 4)
E) Anti PD-L1 2 μg/mL (ab205921 batches 5)
F) Anti PD-L1 2 μg/mL (ab205921 batches 6)
G) Anti PD-L1 2 μg/mL (ab205921 batches 7)

All batches/lots (134567) showed consistent results.

Note absence of PD-L1 expression in CHO parental cells.

For recommended Immunohistochemistry (IHC) protocol please refer to the protocol book in the Product Protocol section.

Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

• IHC-P

Collaborator

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [28-8] (AB205921)

Immunohistochemical analysis of Human Lung NSCLC with ab205921 at 2 μg/ml.
High power view
A) Rabbit IgG 5 μg/mL. No staining
B) Anti PD-L1 2 μg/mL (ab205921 batches 1)
C) Anti PD-L1 2 μg/mL (ab205921 batches 3)
D) Anti PD-L1 2 μg/mL (ab205921 batches 4)
E) Anti PD-L1 2 μg/mL (ab205921 batches 5)
F) Anti PD-L1 2 μg/mL (ab205921 batches 6)

All batches/lots (13456) showed consistent results.

Note linear and complete or partial (arrows) PD-L1 staining of tumor cells. Tumor associated immune cells localized over the tumor margin exhibit positive plasma membrane staining (small arrows).

For recommended Immunohistochemistry (IHC) protocol please refer to the protocol book in the Product Protocol section.

Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

• WB

Lab

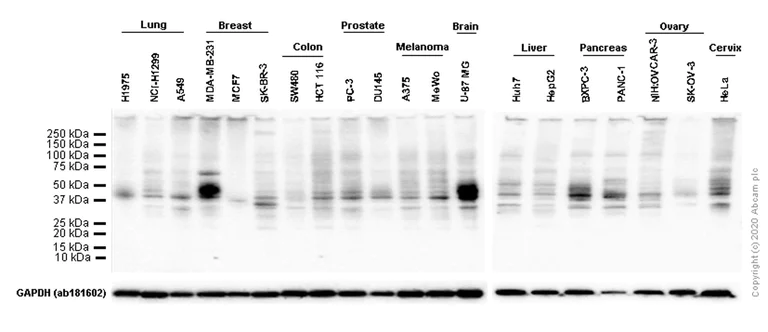

Western blot - Anti-PD-L1 antibody [28-8] (AB205921)

Blocking/Diluting buffer and concentration : 5% NFDM/TBST. Expression of PD-L1 varied widely among the tumor cell lines.

All lanes:

Western blot - Anti-PD-L1 antibody [28-8] (ab205921) at 1/100 dilution

Lane 1:

H1975 (Human non-small cell lung cancer epithelial cell) whole cell lysate at 20 µg

Lane 2:

NCI-H1299 (Human lung carcinoma epithelial cell) whole cell lysate at 20 µg

Lane 3:

A549 (Human lung carcinoma epithelial cell) whole cell lysate at 20 µg

Lane 4:

MDA-MB-231 (Human breast adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 5:

MCF7 (Human breast adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 6:

SK-BR-3 (Human breast adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 7:

SW480 (Human colorectal adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 8:

HCT 116 (Human colorectal carcinoma epithelial cell) whole cell lysate at 20 µg

Lane 9:

PC-3 (Human prostate adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 10:

DU 145 (Human prostate carcinoma epithelial cell) whole cell lysate at 20 µg

Lane 11:

A375 (Human malignant melanoma epithelial cell) whole cell lysate at 20 µg

Lane 12:

MeWo (Human malignant melanoma fibroblast) whole cell lysate at 20 µg

Lane 13:

U-87 MG (Human glioblastoma-astrocytoma epithelial cell) whole cell lysate at 20 µg

Lane 14:

Huh7 (Human hepatocellular carcinoma epithelial cell) whole cell lysate at 20 µg

Lane 15:

HepG2 (Human hepatocellular carcinoma epithelial cell) whole cell lysate at 20 µg

Lane 16:

BXPC-3 (Human pancreas adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 17:

PANC-1 (Human pancreatic epithelioid carcinoma epithelial cell) whole cell lysate at 20 µg

Lane 18:

NIH:OVCAR-3 (Human ovary adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 19:

SK-OV-3 (Human ovarian cancer epithelial cell) whole cell lysate at 20 µg

Lane 20:

HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 33 kDa

Observed band size: 40-60 kDa

false

Exposure time: 3min

• WB

Collaborator1883****

Western blot - Anti-PD-L1 antibody [28-8] (AB205921)

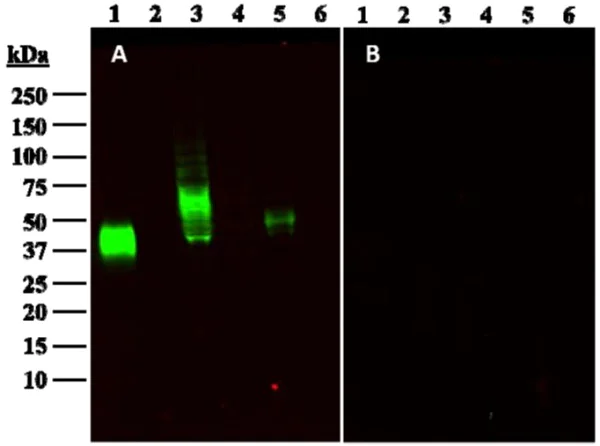

(A and B) Western blots of recombinant PD-L1 protein (Lane 1), cell lysates of CHO-PD-L1 (Lane 3), CHO (Lane 4), ES-2 (Lane 5) and Colo205 (Lane 6) cell lines. In B, anti-PD-L1 (ab205921, clone 28-8) was pre-incubated with purified recombinant PDL1 protein overnight at 4°C.

Blank/no sample (Lane2). Lane 2 is blank on purpose.

For recommended Western Blot (WB) protocol, please refer to the protocol book in the Support&downlods section

All lanes:

Western blot - Anti-PD-L1 antibody [28-8] (ab205921)

Predicted band size: 33 kDa

false
