重组Anti-NDUFB10抗体[EPR16230-47]

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NDUFB10 antibody [EPR16230-47] (AB196019)

Immunohistochemical analysis of paraffin-embedded Human transitional cell carcinoma of bladder tissue labeling NDUFB10 with ab196019 at 1/500 dilution followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) secondary antibody at 1/500 dilution. Cytoplasm staining on Human transitional cell carcinoma of bladder tissue is observed. Counter stained with Hematoxylin.

Secondary control : Used PBS instead of primary antibody secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• Flow Cyt (Intra)

Lab

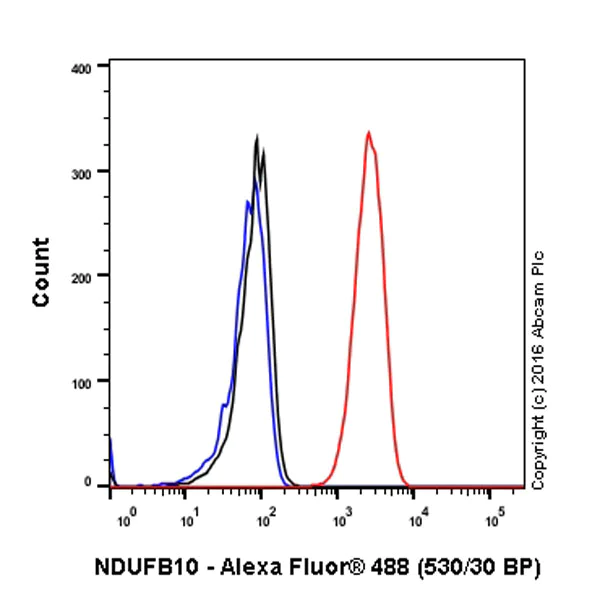

Flow Cytometry (Intracellular) - Anti-NDUFB10 antibody [EPR16230-47] (AB196019)

Intracellular Flow Cytometry analysis of HeLa (human cervix adenocarcinoma) cells labelling NDUFB10 (red) with purified ab196019 at a dilution of 1/800. The secondary antibody used was Alexa Fluorr^® 488 goat-anti-rabbit IgG (1/2000). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. Isotype control antibody was rabbit monoclonal IgG (black). The blue line shows cells without incubation with primary and secondary antibody.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-NDUFB10 antibody [EPR16230-47] (AB196019)

Immunofluorescent analysis of 4% paraformaldehyde-fixed 0.1% Triton X-100 permeabilized HeLa (Human epithelial cells from cervix adenocarcinoma) cells labeling NDUFB10 with ab196019 at 1/350 dilution followed by Goat anti-rabbit IgG (Alexa Fluor® 488) (ab150077) secondary antibody at 1/500 dilution (green). Cytoplasm staining on HeLa cell line is observed. The nuclear counter stain is DAPI (blue).

• IP

Supplier Data

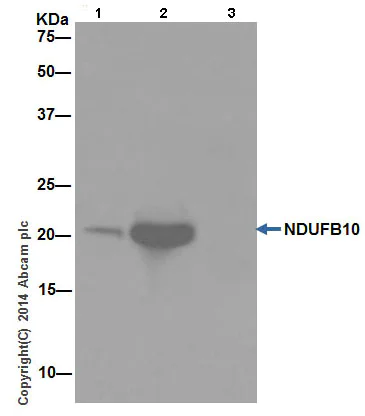

Immunoprecipitation - Anti-NDUFB10 antibody [EPR16230-47] (AB196019)

NDUFB10 was immunoprecipitated from HeLa (Human epithelial cells from cervix adenocarcinoma) whole cell extract with ab196019 at 1/50 dilution. Western blot was performed from the immunoprecipitate using ab196019 at 1/1000 dilution. Anti-Rabbit IgG (HRP), specific to the non-reduced form of IgG, was used as secondary antibody at 1/1500 dilution.

Lane 1 : HeLa whole cell extract 10 μg (Input). Lane 2 : ab196019 IP in HeLa whole cell extract. Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab196019 in HeLa whole cell extract.
Blocking and dilution buffer and concentration : 5% NFDM/TBST.

All lanes:

Immunoprecipitation - Anti-NDUFB10 antibody [EPR16230-47] (ab196019)

Predicted band size: 21 kDa

false

• WB

Supplier Data

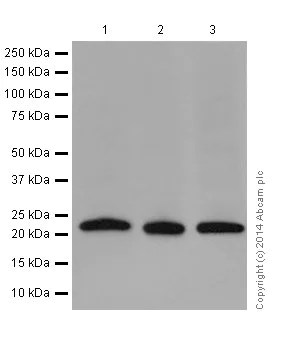

Western blot - Anti-NDUFB10 antibody [EPR16230-47] (AB196019)

Blocking/Dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-NDUFB10 antibody [EPR16230-47] (ab196019) at 1/10000 dilution

Lane 1:

HeLa (Human epithelial cells from cervix adenocarcinoma) cell lysate at 20 µg

Lane 2:

HepG2 (Human liver hepatocellular carcinoma) cell lysate at 20 µg

Lane 3:

Jurkat (Human T cell leukemia cells from peripheral blood) cell lysate at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

Predicted band size: 21 kDa

Observed band size: 21 kDa

false
