Anti-HLA-DR 抗体 [EPR3692]

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HLA-DR antibody [EPR3692] (AB92511)

ab92511 staining HLA-DR in human spleen tissue sections by Immunohistochemistry (IHC-P - paraformaldehyde-fixed, paraffin-embedded sections). Tissue was fixed with paraformaldehyde and antigen retrieval was by heat mediation in a EDTA buffer. Samples were incubated with primary antibody at a dilution of 1/700. A goat anti-rabbit IgG H&L (HRP) ab97051 was used as the secondary antibody at a dilution of 1/500.

Negative control 1 : PBS in place of primary antibody.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HLA-DR antibody [EPR3692] (AB92511)

Immunohistochemical analysis of formalin fixed paraffin embedded human tonsil labelling HLA-DR with ab92511 at a concentration of 0.5µg/ml. The immunostaining was performed on a Ventana DISCOVERY ULTRA (Roche Tissue Diagnostics) instrument with a OptiView DAB IHC Detection Kit. Heat mediated antigen retrieval was performed with DISCOVERY cell conditioning solution (CC1) 100°C, pH8.5 for 32 mins. ab209968 Anti-HLA-DR antibody [EPR3692] was incubated for 16 mins at 37°C. Sections were counterstained with Hematoxylin II. Image inset shows absence of staining in secondary antibody only control.

Customers are encouraged to optimise antigen retrieval conditions, antibody concentration, incubation times and temperature for best results in their own IHC assay workflow (automated and manual).

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HLA-DR antibody [EPR3692] (AB92511)

ab92511, at a 1/100 dilution, staining HLA-DRA in paraffin embedded Human tonsil (A) and Human kidney (B) tissue by Immunohistochemistry. Detection : by DAB staining

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HLA-DR antibody [EPR3692] (AB92511)

Immunohistochemical analysis of paraffin-embedded human tonsil tissue labelling HLA-DR with ab92511 at 1/10000 dilution (0.07 μg/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) secondary antibody. Positive staining on human tonsil tissue. The section was incubated with ab92511 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control.

Heat mediated antigen retrieval with Bond™ Epitope Retrieval Solution 2 (pH 9.0) for 30 minutes.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HLA-DR antibody [EPR3692] (AB92511)

ab92511 staining HLA-DR in human spleen tissue sections by Immunohistochemistry (IHC-P - paraformaldehyde-fixed, paraffin-embedded sections). Tissue was fixed with paraformaldehyde and antigen retrieval was by heat mediation in a EDTA buffer. Samples were incubated with primary antibody at a dilution of 1/700. A goat anti-rabbit IgG H&L (HRP) ab97051 was used as the secondary antibody at a dilution of 1/500. Negative control 1 : PBS in place of primary antibody.

• mIHC

Lab

Multiplex immunohistochemistry - Anti-HLA-DR antibody [EPR3692] (AB92511)

10-color fluorescence multiplex immunohistochemical analysis of human lung cancer tissue (formalin-fixed paraffin-embedded section). Merged staining of anti-FOXP3 (ab215206; Cyan; TG540N), anti-PD1 (ab52587; Red; TG700N), anti-CD163 (ab182422; Brown; TG650N), anti-HLA-DR (ab92511; Yellow; TG570N), anti-CD4 (ab133616; Violet; TG620N), anti-CD8 alpha (ab101500; Purple; TG540S), anti-CD20 (ab9475; Grey; TG660S), anti-CD68 (ab192847; Green; TG520N), anti-Cytokeratin 19 (ab52625; Light blue; TG440N). TG470SN (dark blue) was used as a nuclear counter stain. The inset image shows the separate CD68 signal. The section was incubated in nine rounds of staining; in the order of ab215206 (1/100 dilution), ab52587 (1/200 dilution), ab182422 (1/300 dilution), ab92511 (1/200 dilution), ab133616 (1/600 dilution), ab101500 (1/300 dilution), ab9475 (1/100 dilution), ab192847 (1/300 dilution), ab52625 (1/400 dilution); each using a separate fluorescent tyramide signal amplification system. Sodium citrate antigen retrieval (pH6.0) was used in between rounds of tyramide signal amplification to remove the antibody from the previous round, to avoid any cross-reactivity. Image acquisition was performed with TissueFAXS Spectra (TissueGnostics).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-HLA-DR antibody [EPR3692] (AB92511)

ab92511 staining HLA-DR in HuT-78 (human Sezary syndrome) cells by ICC/IF (Immunocytochemistry/immunofluorescence). Cells were fixed with 4% Paraformaldehyde and permeabilized with 0.1% Triton X-100. Samples were incubated with primary antibody at a dilution of 1/250. A goat anti rabbit IgG (Alexa Fluor® 488) (ab150077) was used as the secondary antibody at a dilution of 1/1000. ab7291 and ab150120 were used as counterstains for primary antibody ab92511 and secondary antibody ab150077 respectively and DAPI was used as a nuclear counterstain.

Negative control 1 : Rabbit primary antibody and anti-mouse secondary antibody (ab150120)
Negative control 2 : Mouse primary antibody (ab7291) and anti-rabbit secondary antibody (ab150077)

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HLA-DR antibody [EPR3692] (AB92511)

ab92511 showing positive staining in Normal liver vessels tissue.

Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HLA-DR antibody [EPR3692] (AB92511)

ab92511 showing positive staining in Normal skin vessels tissue.

Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HLA-DR antibody [EPR3692] (AB92511)

ab92511 showing positive staining in Endometrial carcinoma vessels tissue.

Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HLA-DR antibody [EPR3692] (AB92511)

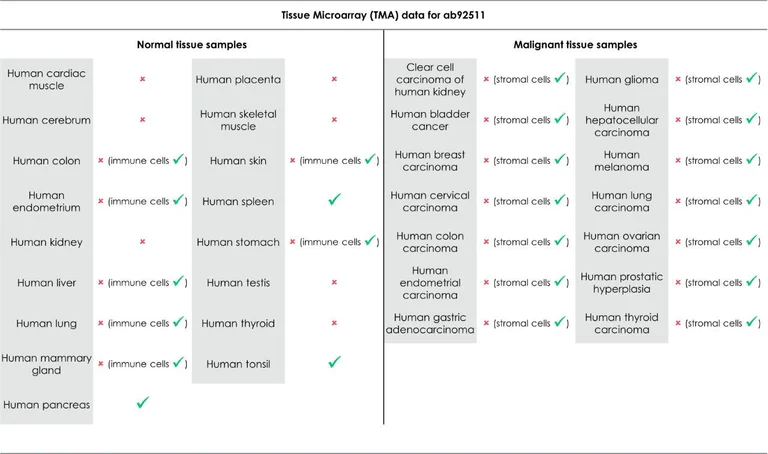

Tissue Microarrays stained for "Anti-HLA-DR antibody [EPR3692]" using "ab92511"in immunohistochemical analysis. This table provides a detailed overview of positive (tick mark) and negative (cross mark) staining per sample type tested. The sections were pre-treated using Heat mediated antigen retrieval using Bond™ Epitope Retrieval Solution 2 (pH 9.0) for 20 minutes. The sections were incubated with ab92511 for 30 mins at room temperature followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HLA-DR antibody [EPR3692] (AB92511)

Immunohistochemical analysis of paraffin-embedded human skin tissue labelling HLA-DR with ab92511 at 1/10000 dilution (0.07 μg/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) secondary antibody. Positive staining on human skin tissue. The section was incubated with ab92511 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control.

Heat mediated antigen retrieval with Bond™ Epitope Retrieval Solution 2 (pH 9.0) for 30 minutes.

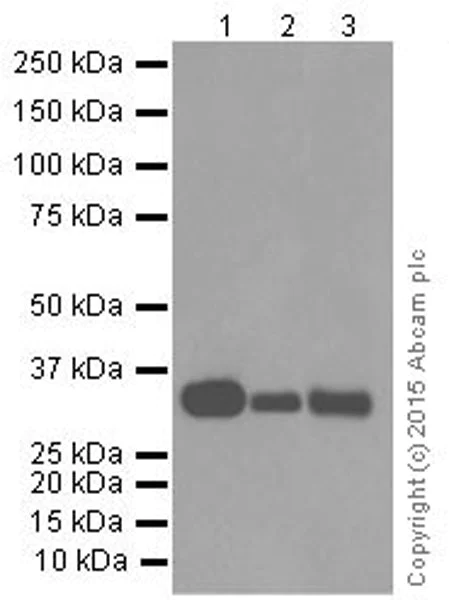

• WB

Lab

Western blot - Anti-HLA-DR antibody [EPR3692] (AB92511)

Blocking buffer : 5% NFDM/TBST

Diluting buffer : 5% NFDM/TBST

All lanes:

Western blot - Anti-HLA-DR antibody [EPR3692] (ab92511) at 1/10000 dilution

Lane 1:

Raji (human Burkitt's lymphoma) whole cell lysate at 20 µg

Lane 2:

Ramos (human Burkitt's lymphoma) whole cell lysate at 20 µg

Lane 3:

Human tonsil tissue at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/1000 dilution

Predicted band size: 29 kDa

false

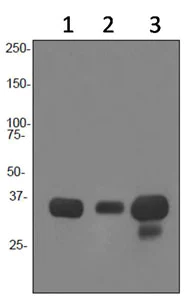

• WB

Unknown

Western blot - Anti-HLA-DR antibody [EPR3692] (AB92511)

All lanes:

Western blot - Anti-HLA-DR antibody [EPR3692] (ab92511) at 1/5000 dilution

Lane 1:

Raji cell lysate at 10 µg

Lane 2:

Human spleen lysate at 10 µg

Lane 3:

Hu T-78 cell lysate at 10 µg

Secondary

All lanes:

HRP labelled goat anti-rabbit at 1/2000 dilution

Predicted band size: 29 kDa

false

• WB

Lab

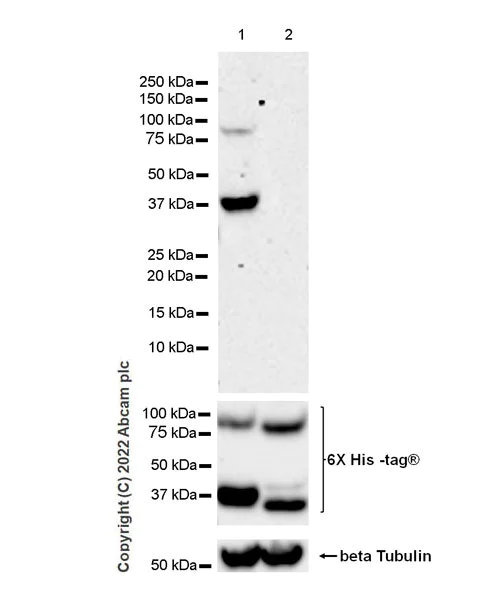

Western blot - Anti-HLA-DR antibody [EPR3692] (AB92511)

Blocking buffer and concentration : 5% NFDM/TBST Diluting buffer and concentration : 5% NFDM/TBST This antibody does not cross-react with human HLA-DOA.

Lanes 1 - 2:

Western blot - Anti-HLA-DR antibody [EPR3692] - Low endotoxin, Azide free (<a href='/products/primary-antibodies/hla-dr-antibody-epr3692-low-endotoxin-azide-free-ab215985'>ab215985</a>) at 1/1000 dilution

Lanes 1 - 2:

Western blot - Anti-HLA-DR antibody [EPR3692] - BSA and Azide free (<a href='/products/primary-antibodies/hla-dr-antibody-epr3692-bsa-and-azide-free-ab209968'>ab209968</a>) at 1/1000 dilution

Lanes 1 - 2:

Western blot - Anti-HLA-DR antibody [EPR3692] (ab92511) at 1/1000 dilution

Lane 1:

HEK-293T (human epithelial cell line from embryonic kidney transformed with large T antigen) cells transfected with a human HLA-DR expression vector containing a his-tag, whole cell lysate at 20 µg

Lane 2:

HEK-293T (human epithelial cell line from embryonic kidney transformed with large T antigen) cells transfected with a human HLA-DOA expression vector containing a his-tag, whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 29 kDa

Observed band size: 37 kDa

false

Exposure time: 3min

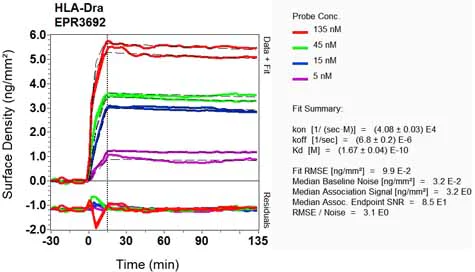

• OI-RD Scanning

Unknown

OI-RD Scanning - Anti-HLA-DR antibody [EPR3692] (AB92511)

We have systematically measured KD (the equilibrium dissociation constant between the antibody and its antigen), of more than 840 recombinant antibodies to assess not only their individual KD values but also to see the average affinity of antibody. Based on the comparison with published literature values for mouse monoclonal antibodies, Recombinant antibodies appear to be on average 1-2 order of magnitude higher affinity.
