重组Anti-Hamartin抗体[EP318Y]

• IP

Lab

Immunoprecipitation - Anti-Hamartin antibody [EP318Y] (AB40872)

Immunoprecipitation of TSC1 in HAP1 cells. Lysates were prepared and immunoprecipitation was performed using  2.0 µg of ab40872 pre-coupled to Protein A beads. Samples were then washed and processed for western blot.

These data were provided by YCharOS Inc., an open science company with the mission of characterizing commercially available antibody reagents for all human proteins. Abcam and YCharOS are working together to help address the reproducibility crisis by enabling the life science community to better evaluate commercially available antibodies.

All lanes:

Immunoprecipitation - Anti-Hamartin antibody [EP318Y] (ab40872) at 2 µg

All lanes:

HAP1 cells

false

• WB

Lab

Western blot - Anti-Hamartin antibody [EP318Y] (AB40872)

ab40872 was shown to react with TSC1 in wild-type HAP1 cells in Western blot with loss of signal observed in a TSC1 knockout cell line. Wild-type HAP1 and TSC1 knockout cell lysates were subjected to SDS-PAGE. Membranes were blocked in 5% milk in TBST for 1 hr before incubation with ab40872 overnight at 4 °C at a 1/500 dilution. Blots were incubated with secondary antibodies at 0.2 µg/mL before imaging.

These data were provided by YCharOS Inc., an open science company with the mission of characterizing commercially available antibody reagents for all human proteins. Abcam and YCharOS are working together to help address the reproducibility crisis by enabling the life science community to better evaluate commercially available antibodies.

All lanes:

Western blot - Anti-Hamartin antibody [EP318Y] (ab40872) at 1/500 dilution

Lane 1:

Wild-type HAP1 lysate at 100 µg

Lane 2:

TSC1 knock-out HAP1 lysate at 100 µg

false

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Hamartin antibody [EP318Y] (AB40872)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human liver tissue sections labeling Hamartin with purified ab40872 at 1/200 dilution (1.08 µg/mL). Heat mediated antigen retrieval using Bond™ Epitope Retrieval Solution 2 (pH 9.0). The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Rabbit specific IHC polymer detection kit HRP/DAB (ab209101) was used as the secondary antibody. Negative control : PBS instead of the primary antibody. Hematoxylin was used as a counterstain.

• Flow Cyt (Intra)

Lab

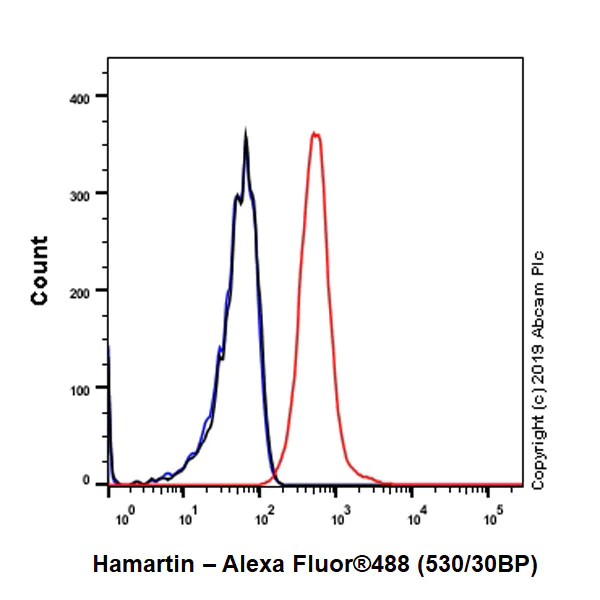

Flow Cytometry (Intracellular) - Anti-Hamartin antibody [EP318Y] (AB40872)

Intracellular Flow Cytometry analysis of HeLa (Human cervix adenocarcinoma epithelial cell) cells labeling Hamartin with Purified ab40872 at 1/20 dilution (10 μg/ml) (Red). Cells were fixed with 4% Paraformaldehyde and permeabilised with 90% Methanol. A Goat anti rabbit IgG (Alexa Fluor^® 488 ,ab150077) secondary antibody was used at 1/2000. Isotype control - Rabbit monoclonal IgG (Black). Unlabeled control - Cell without incubation with primary antibody and secondary antibody (Blue).

• WB

Unknown

Western blot - Anti-Hamartin antibody [EP318Y] (AB40872)

We are not sure about the nature of the extra band.

All lanes:

Western blot - Anti-Hamartin antibody [EP318Y] (ab40872) at 1/1000 dilution

All lanes:

HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate at 15 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 130 kDa

false

• WB

Lab

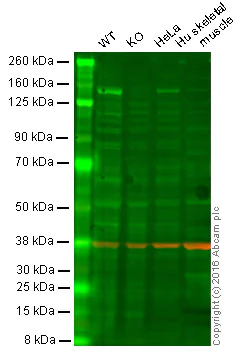

Western blot - Anti-Hamartin antibody [EP318Y] (AB40872)

Lane 1 : Wild-type HAP1 cell lysate (20 μg)
Lane 2 : Hamartin knockout HAP1 cell lysate (20 μg)
Lane 3 : HeLa cell lysate (20 μg)
Lane 4 : Human skeletal muscle tissue lysate (20 μg)
Lanes 1 - 4 : Merged signal (red and green). Green - ab40872 observed at 150 kDa. Red - loading control, ab8245, observed at 37 kDa.

ab40872 was shown to recognize Hamartin when Hamartin knockout samples were used, along with additional cross-reactive bands. Wild-type and Hamartin knockout samples were subjected to SDS-PAGE. ab40872 and ab8245 (loading control to GAPDH) were diluted 1/5000 and 1/10000 respectively and incubated overnight at 4°C. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preadsorbed (ab216776) secondary antibodies at 1/10000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-Hamartin antibody [EP318Y] (ab40872)

Predicted band size: 130 kDa

false

• WB

Lab

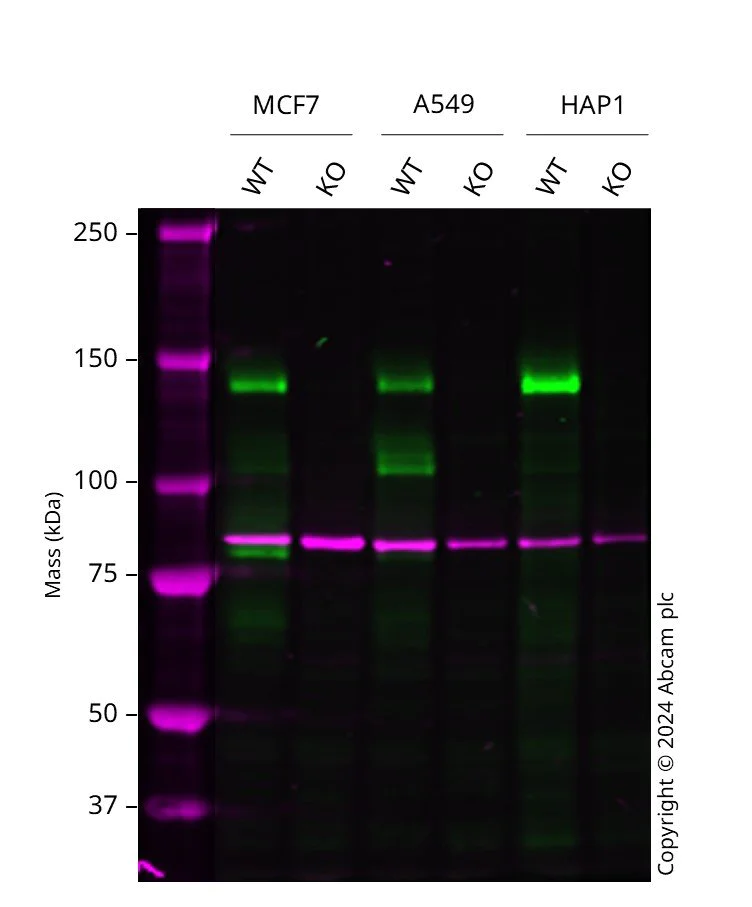

Western blot - Anti-Hamartin antibody [EP318Y] (AB40872)

Western blot : Anti-TSC1 antibody [EP318Y] (ab40872) staining at 1/1000 dilution, shown in green; Mouse anti-CANX [CANX/1543] (ab238078) loading control staining at 1/20000 dilution, shown in magenta. In Western blot, ab40872 was shown to bind specifically to TSC1. A band was observed at 130-150 kDa in wild-type MCF7 cell lysates with no signal observed at this size in TSC1 knockout cell line. To generate this image, wild-type and TSC1 knockout MCF7 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 5 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution.

All lanes:

Western blot - Anti-Hamartin antibody [EP318Y] (ab40872) at 1/1000 dilution

Lane 1:

Wild-type MCF7 cell lysate at 20 µg

Lane 2:

TSC1 knockout MCF7 cell lysate at 20 µg

Lane 3:

Wild-type A549 cell lysate at 20 µg

Lane 4:

TSC1 knockout A549 cell lysate at 20 µg

Lane 5:

Wild-type HAP1 cell lysate at 20 µg

Lane 6:

TSC1 knockout HAP1 cell lysate at 20 µg

Secondary

All lanes:

Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution

false
