重组Anti-GITR抗体[CAL52] - BSA and Azide free

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-GITR antibody [CAL52] - BSA and Azide free (AB251600)

4% Paraformaldehyde-fixed 0.1% TritonX-100 permeabilized HEK-293T (human embryonic kidney epithelial cell) cells labeling GITR with ab237713 at 1/50 dilution followed by a AlexaFluor^®594 Goat anti-Rabbit secondary (ab150080) at a 1/500 dilution (Green). The nuclear counterstain was DAPI (Blue). Confocal image showing Positive staining in HEK-293T cells transfected with a GFP-tagged GITR expression construct.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is an AlexaFluor^®594 Goat anti-Rabbit secondary (ab150080) at a 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab237713).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-GITR antibody [CAL52] - BSA and Azide free (AB251600)

Immunohistochemical analysis of paraffin-embedded human tonsil tissue labeling GITR with ab237713 at 1/4000 dilution, followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Positive staining on the human tonsil is observed. Counter stained with Hematoxylin. The section was incubated with ab237713 for 10 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab237713).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-GITR antibody [CAL52] - BSA and Azide free (AB251600)

Formalin-fixed, paraffin-embedded human tonsil tissue stained for TNFSF18 using ab237713 at 0.25 μg/ml in immunohistochemical analysis.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab237713).

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Anti-GITR antibody [CAL52] - BSA and Azide free (AB251600)

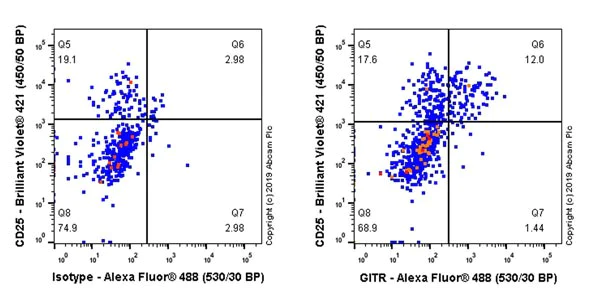

Intracellular flow cytometric analysis of 2% paraformaldehyde-fixed, 0.1% tween-20 permeabilized Human peripheral blood mononuclear cell (PBMC) treated with 10μg/ml PHA for 48h, labeling GITRwith ab237713 at 1/500 dilution. The secondary antibody was a Goat anti rabbit IgG (Alexa Fluor^® 488, ab150097) at 1/500 dilution. Cells were surface stained with anti-CD25 conjugated to BV421. Then fixed with 2% PFA followed by intracellular staining rabbit IgG (Left) or ab237713 (Right). The isotype control used was a Rabbit monoclonal IgG (ab172730, Left).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab237713).

• IP

Supplier Data

Immunoprecipitation - Anti-GITR antibody [CAL52] - BSA and Azide free (AB251600)

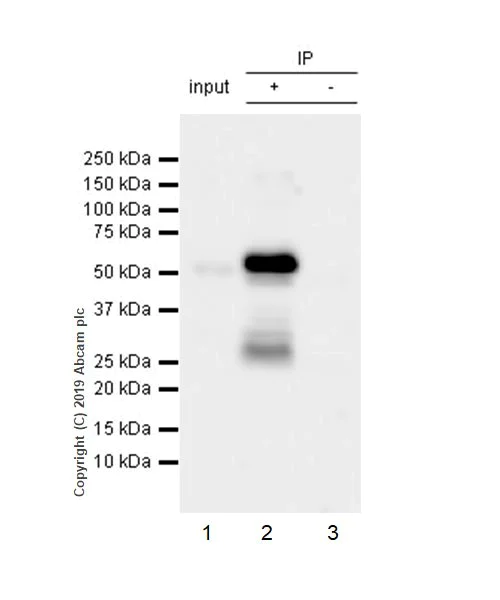

GITR was immunoprecipitated from 0.35 mg Hut-78 (Human Sezary syndrome cutaneous T lymphocyte) whole cell lysate using ab237713 at 1/30 dilution. western blot was performed on the immunoprecipitate using ab237713 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366) was used as the secondary antibody at 1/5000 dilution.

Lane 1 : Hut-78 whole cell lysate 10 μg (input)
Lane 2 : ab237713 IP in Hut-78 whole cell lysate.
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab237713 in Hut-78 whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 15 seconds.

This blot was developed using a higher sensitivity ECL substrate.

Dimerized GITR was also observed at 52kDa

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab237713).

All lanes:

Immunoprecipitation - Anti-GITR antibody [CAL52] (<a href='/products/primary-antibodies/gitr-antibody-cal52-ab237713'>ab237713</a>)

Predicted band size: 26 kDa

false

• IP

Supplier Data

Immunoprecipitation - Anti-GITR antibody [CAL52] - BSA and Azide free (AB251600)

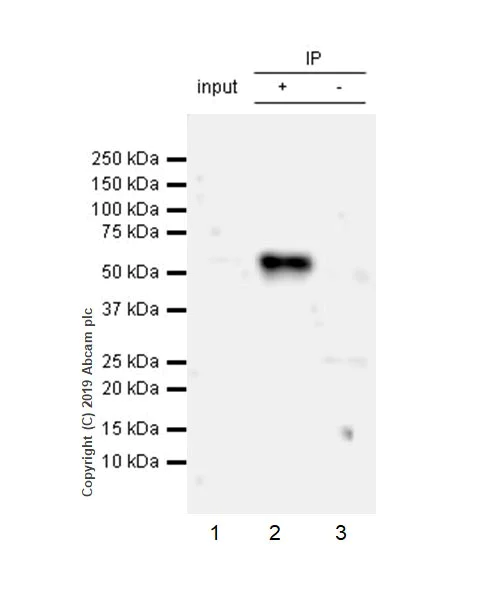

GITR was immunoprecipitated from 0.35 mg HEK-293T (Human embryonic kidney epithelial cell) transfected with GFP-tagged GITR overexpression vector whole cell lysate using ab237713 at 1/30 dilution. western blot was performed on the immunoprecipitate using ab237713 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366) was used as the secondary antibody at 1/5000 dilution.

Lane 1 : Hut-78 whole cell lysate 10 μg (input)
Lane 2 : ab237713 IP in Hut-78 whole cell lysate.
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab237713 in 293T transfected with GFP-tagged GITR overexpression vector whole cell lysate

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 3 minutes.

This blot was developed using a higher sensitivity ECL substrate.

Dimerized GITR was also observed at 52kDa

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab237713).

All lanes:

Immunoprecipitation - Anti-GITR antibody [CAL52] (<a href='/products/primary-antibodies/gitr-antibody-cal52-ab237713'>ab237713</a>)

Predicted band size: 26 kDa
