重组Anti-GABARAP+GABARAPL1+GABARAPL2抗体[EPR4805] - BSA and Azide free

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-GABARAP+GABARAPL1+GABARAPL2 antibody [EPR4805] - BSA and Azide free (AB225535)

Unpurified ab109364, at 1/500, staining GABARAP+GABARAPL1+GABARAPL2 in Human brain tissue by immunohistochemistry.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109364).

Heat mediated antigen retrieval was performed before commencing with IHC staining protocol.

• Flow Cyt (Intra)

Lab

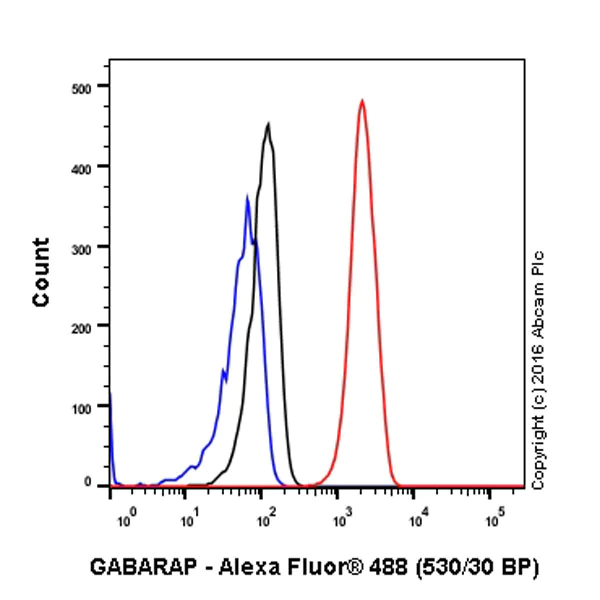

Flow Cytometry (Intracellular) - Anti-GABARAP+GABARAPL1+GABARAPL2 antibody [EPR4805] - BSA and Azide free (AB225535)

Intracellular Flow Cytometry analysis of HeLa (Human cervix adenocarcinoma epithelial cell) cells labeling GABARAP+GABARAPL1+GABARAPL2 with purified ab109364 at 1/20 dilution (10 ug/ml) (red). Cells were fixed with 4% Paraformaldehyde and permeabilized with 90% methanol. A Goat anti rabbit IgG (Alexa Fluor^® 488) secondary antibody was used at 1/2000 dilution. Isotype control - Rabbit monoclonal IgG (Black). Unlabeled control - Cell without incubation with primary antibody and secondary antibody (Blue).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109364).

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-GABARAP+GABARAPL1+GABARAPL2 antibody [EPR4805] - BSA and Azide free (AB225535)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human colon tissue sections labeling GABARAP+GABARAPL1+GABARAPL2 with Purified ab109364 at 1 : 500 dilution (0.29 μg/ml). Heat mediated antigen retrieval was performed using EDTA Buffer, pH9.0. Tissue was counterstained with Hematoxylin. ImmunoHistoProbe one step HRP Polymer (ready to use) secondary antibody was used at 1 : 0 dilution. PBS instead of the primary antibody was used as the negative control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109364).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-GABARAP+GABARAPL1+GABARAPL2 antibody [EPR4805] - BSA and Azide free (AB225535)

Unpurified ab109364 staining GABARAP+GABARAPL1+GABARAPL2 in the human cell line HeLa (human cervix adenocarcinoma) by intracellular flow cytometry. Cells were fixed with 4% paraformaldehyde, permeabilized with 90% methanol and the sample was incubated with the primary antibody at a dilution of 1/20. A goat anti rabbit IgG (Alexa Fluor^® 488) at a dilution of 1/2000 was used as the secondary antibody.

Isoytype control : Rabbit monoclonal IgG (Black)

Unlabelled control : Cell without incubation with primary antibody and secondary antibody (Blue)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109364).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-GABARAP+GABARAPL1+GABARAPL2 antibody [EPR4805] - BSA and Azide free (AB225535)

This ICC data was generated using the same anti-GABARAP+GABARAPL1/2 antibody clone [EPR4805] in a different buffer formulation (cat# ab109364).

Immunocytochemistry/Immunofluorescence analysis of HeLa (human cervix adenocarcinoma) labelling GABARAP+GABARAPL1+GABARAPL2 with purified ab109364 at 1/500. Cells were fixed with 4% PFA and permeabilized with 0.1% Triton X-100. An Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/1000) was used as the secondary antibody (ab150077). Nuclei counterstained with DAPI (blue).
