Anti-Fibrillarin 抗体 - Nucleolar Marker

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Fibrillarin antibody - Nucleolar Marker (AB5821)

ab5821 staining Fibrillarin in HeLa cells. The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with ab5821 at 0.1µg/ml and ab7291, Mouse monoclonal [DM1A] to alpha Tubulin - Loading Control. Cells were then incubated with ab150081, Goat polyclonal Secondary Antibody to Rabbit IgG - H&L (Alexa Fluor^® 488), pre-adsorbed at 1/1000 dilution (shown in green) and ab150120, Goat polyclonal Secondary Antibody to Mouse IgG - H&L (Alexa Fluor^® 594), pre-adsorbed at 1/1000 dilution (shown in pseudocolour red). Nuclear DNA was labelled with DAPI (shown in blue).

• ICC/IF

Collaborator

Immunocytochemistry/ Immunofluorescence - Anti-Fibrillarin antibody - Nucleolar Marker (AB5821)

Immunofluorescent imaging of human cells (U2OS) with ab5821 reveals highly specific localisation to the dense fibrillar component (DFC) of the nucleolus associated with the initial ribosomal RNA (rRNA) precursor. The nucleolar protein fibrillarin is located primarily in the DFC. Blue is hoechst staining of the nucleus, green is ab5821 used at 1/100, merge image demonstrates exclusively nuclear localisation.

IF was performed with a standard paraformaldehyde technique (fixed in PBS buffered PFH 4% for 5 minutes, permeabilised with 0.5% triton-PBS for 5 minutes, blocked with 5% milk / 0.2% tween for one hour. Primary antibody used at 1/100 in 5% milk / 0.2% TWEEN for one hour, secondary antibody Alexa 488 for 30 minutes. All blocking and incubation steps carried out at 37 degrees C.

This image is courtesy of Luke Hughes-Davies and Rhiannon Jade, Gurdon Institute, Cambridge, UK

• WB

Project7091****

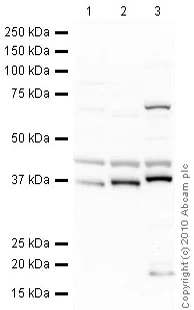

Western blot - Anti-Fibrillarin antibody - Nucleolar Marker (AB5821)

All lanes:

Western blot - Anti-Fibrillarin antibody - Nucleolar Marker (ab5821) at 1 µg/mL

Lane 1:

HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 20 µg

Lane 2:

NIH 3T3 (Mouse embryonic fibroblast cell line) Whole Cell Lysate at 20 µg

Lane 3:

Schneider L2 whole cell lysate (ab14893) at 20 µg

Secondary

All lanes:

Goat polyclonal to Rabbit IgG - H&L - Pre-Adsorbed (HRP) (ab65484) at 1/3000 dilution

Predicted band size: 33 kDa

Observed band size: 37 kDa,42 kDa,70 kDa

false

Exposure time: 3min
