重组Anti-E Cadherin抗体[EP700Y] - BSA and Azide free

• mIHC

Lab

Multiplex immunohistochemistry - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (AB256580)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab40772).

Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded human endometrium tissue staining SLC34A2 with ab325747 at a 1 : 500 (0.99 ug/ml) dilution, ab40772 anti-E Cadherin used at 1 : 1000 (0.325 ug/ml) dilution and ab255609 anti-CD10 used at a 1 : 1000 (0.615 ug/ml) dilution.

Panel A : merged staining of anti-SLC34A2 (green; Opal™520), anti-E Cadherin (magenta; Opal™570) and anti-CD10 (gray; Opal™690) on human endometrium.
Panel B : anti-SLC34A2 staining apical cell membrane of glandular cells in human endometrium.
Panel C : anti-E Cadherin staining glandular cells in human endometrium.
Panel D : anti-CD10 staining stromal cells in human endometrium.
Nuclear DNA was labeled with DAPI (shown in blue).

The section was incubated in three rounds of staining : in the order of ab325747, ab40772 and ab255609 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

• mIHC

Lab

Multiplex immunohistochemistry - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (AB256580)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab40772).

Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded human endometrial cancer tissue staining SLC34A2 with ab325747 at a 1 : 500 (0.99 ug/ml) dilution, ab40772 anti-E Cadherin used at 1 : 1000 (0.325 ug/ml) dilution and ab255609 anti-CD10 used at a 1 : 1000 (0.615 ug/ml) dilution.

Panel A : merged staining of anti-SLC34A2 (green; Opal™520), anti-E Cadherin (magenta; Opal™570) and anti-CD10 (gray; Opal™690) on human endometrial cancer.
Panel B : anti-SLC34A2 staining apical cell membrane of glandular cells in human endometrial cancer.
Panel C : anti-E Cadherin staining glandular cells in human endometrial cancer.
Panel D : anti-CD10 staining stromal cells in human endometrial cancer.
Nuclear DNA was labeled with DAPI (shown in blue).

The section was incubated in three rounds of staining : in the order of ab325747, ab40772 and ab255609 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (AB256580)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab40772).

Tissue Microarrays stained for Anti-E Cadherin antibody [EP700Y] - Intercellular Junction Marker using ab40772 in immunohistochemical analysis. This table provides a detailed overview of positive (tick mark) and negative (cross mark) staining per sample type tested. The section was incubated with ab40772 for 30 mins at room temperature followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution 2) for 20 mins.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (AB256580)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab40772).

Benchmark : ab40772 (recombinant rabbit monoclonal antibody). The data in this figure was generated using ab40772. This antibody was used as a reference for comparison with ab287970. The nuclear counterstain is DAPI (blue).

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized MCF7 (Human breast adenocarcinoma cell line) whole cell lysate labeling E Cadherin with ab40772 at 1/250 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150081) secondary antibody at 1/1000 dilution (green). Confocal image showing membranous staining in MCF7 cell line. Tubulin is detected with Anti-alpha Tubulin mouse MAb (ab195889) at 1/200 dilution (red).

Negative control : MDA-MB-231 (PMID : 10545506).

• mIHC

Supplier Data

Multiplex immunohistochemistry - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (AB256580)

Fluorescence multiplex immunohistochemical analysis of the human endometrium (Formalin/PFA-fixed paraffin-embedded sections).

Panel A : merged staining of anti-E Cadherin (ab256580, red; Opal™690), anti-SLC34A2 (ab238793, green; Opal™520) and anti-CD10 (ab255609, cyan; Opal™570) on human endometrium. Panel B : anti-CD10 stained on stromal cells. Panel C : anti-E Cadherin stained on glandular cells. Panel D : anti-SLC34A2 stained on apical membrane of glandular cells. Opal Polymer HRP Ms + Rb was used as a secondary antibody.

The section was incubated in three rounds of staining : in the order of ab256580 at 1/3000 dilution  (0.324 μg/ml) for 30 mins, ab238793 at 1/1000 dilution (2.26 μg/ml) for 10 mins and ab255609 at 1/1000 dilution (0.615 μg/ml) for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins. DAPI (blue) was used as a nuclear counterstain.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (AB256580)

This data was developed using ab40772, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human stomach tissue labeling E Cadherin with ab40772 at 1/14000 dilution.

Positive staining on human stomach.

The section was incubated with ab40772 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND^® RX instrument.

Rabbit specific IHC polymer detection kit HRP/DAB (ab209101) was used as the secondary detection reagent (ready-to-use).

Counterstained with Hematoxylin.

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

• Flow Cyt (Intra)

Lab

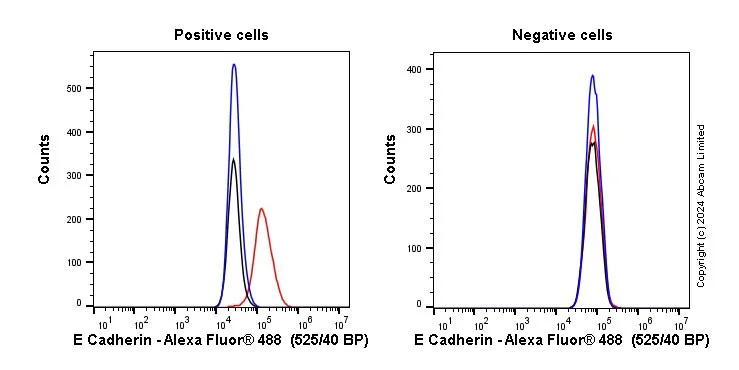

Flow Cytometry (Intracellular) - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (AB256580)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab40772).

Flow cytometry overlay histogram showing MCF7 positive cells (left) and negative MDA-MB-231 cells (right) stained with ab40772 (red line). The cells were incubated in 1x PBS containing 10% normal goat serum to block non-specific protein-protein interaction, followed by the antibody ab40772 (1x 10⁶ in 100μl at 5 μg/ml (1/400)) for 30min on ice.

The secondary antibody Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed was incubated at 1/4000 for 30min on ice

Isotype control antibody (black line) was Recombinant Rabbit IgG, monoclonal [EPR25A] - Isotype Control used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control.

Acquisition of >5000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter.

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (AB256580)

ab40772 staining E Cadherin in HT-29 (Human colorectal adenocarcinoma) cells by ICC/IF (Immunocytochemistry/Immunofluorescence). Cells were fixed with 4% paraformaldehyde and permeabilized with 0.1% tritonX-100. Samples were incubated with primary antibody at 1/500 dilution. An Alexa Fluor^® 488 Goat anti-Rabbit (ab150077) was used as the secondary antibody at 1/1000 dilution. Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) (ab195889) at 1/200 dilution was used as a counterstain. DAPI was used as a nuclear counterstain. This is a confocal image showing membranous staining on HT-29 cell line.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab40772).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (AB256580)

Overlay histogram showing A431 (Human epidermoid carcinoma cell line) cells stained with unpurified ab40772 (red line). The cells were fixed with 80% methanol (5 minutes) and incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab40772, 1/1000 dilution) for 30 minute at 22°C. The secondary antibody used was DyLight^® 488 goat anti-rabbit IgG (H+L) (ab96899) at 1/500 dilution for 30 minutes at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (0.1 μg/1x10⁶ cells) used under the same conditions. Unlabeled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab40772).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (AB256580)

Intracellular Flow Cytometry analysis of MCF7 (Human breast adenocarcinoma epithelial cell) cells labeling E Cadherin with purified ab40772 at 1/30 dilution (10μg/ml) (red). Cells were fixed with 4% Paraformaldehyde. A Goat anti rabbit IgG (Alexa Fluor^® 488) secondary antibody was used at 1/2000 dilution. Isotype control - Rabbit monoclonal IgG (Black). Unlabeled control - Cell without incubation with primary antibody and secondary antibody (Blue).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab40772).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (AB256580)

Immunocytochemistry/Immunofluorescence analysis of MCF7 (human breast adenocarcinoma epithelial) cells labeling E Cadherin with ab40772. Cells were fixed with 4% paraformaldehyde and permeabilized with 0.1% tritonX-100. Samples were then incubated with the primary antibody at a 1/500 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor^® 488) (ab150077) secondary antibody at a 1/1000 dilution (green). The nuclear counter stain is DAPI (blue). Counterstained with ab195889 anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) at a 1/200 dilution (red).

Confocal image shows membranous staining on MCF7 cell line.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab40772).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (AB256580)

Immunofluorescence staining of E-Cadherin using ab40772 in wild-type A431 cells (top panel) and CDH1 knockout A431 cells (bottom panel). The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% Triton-X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab40772 at 0.2 µg/mL and ab7291 at 1 µg/mL overnight at +4°C, followed by a further incubation at room temperature for 1h with Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (ab150081) (shown in green) and Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed (ab150120) (shown in red), both at 1/1000. Nuclear DNA was labelled with DAPI (shown in blue). Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a confocal section is shown. This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab40772).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (AB256580)

Immunofluorescence staining of E-Cadherin using ab40772 in wild-type A431 cells (top panel) and CDH1 knockout A431 cells (bottom panel). The cells were fixed with 4% formaldehyde (10 min), permeabilized with 0.1% Triton-X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab40772 at 1 µg/mL and ab7291 at 1 µg/mL overnight at +4°C, followed by a further incubation at room temperature for 1h with Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (ab150081) (shown in green) and Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed (ab150120) (shown in red), both at 1/1000. Nuclear DNA was labelled with DAPI (shown in blue). Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a confocal section is shown. This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab40772).

• WB

Lab

Western blot - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (AB256580)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab40772). Blocking and diluting buffer and concentration : 5% NFDM/TBST. ab181602 was as GAPDH loading control. Exposure time : Lane1 : 3 seconds; Lane 2-5 : 40 seconds. A375, HeLa and HT-1080 were reported as negative or express low level of E cadherin (PMID : 30393081, PMID : 16980628, PMID : 34715746), PMID : 25411788).

All lanes:

Western blot - Anti-E Cadherin antibody [EP700Y] - Intercellular Junction Marker (<a href='/products/primary-antibodies/e-cadherin-antibody-ep700y-intercellular-junction-marker-ab40772'>ab40772</a>) at 1/1000 dilution

Lane 1:

MCF7 (Human breast adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 2:

HepG2 (Human hepatocellular carcinoma epithelial cell) whole cell lysate at 20 µg

Lane 3:

A375 (Human malignant melanoma epithelial cell) whole cell lysate at 20 µg

Lane 4:

HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 5:

HT-1080 (Human fibrosarcoma epithelial cell) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 97 kDa

false

• WB

Lab

Western blot - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (AB256580)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab40772). Western blot : Anti-CDH1 antibody [EP700Y] (ab40772) staining at 1/1000 dilution, shown in green; Mouse anti-GAPDH antibody [6C5] (ab8245) loading control staining at 1/20000 dilution, shown in red. In Western blot, ab40772 was shown to bind specifically to CDH1. A band was observed at 130, 110, 80, 55, 40 kDa in wild-type A431 cell lysates with no signal observed at this size in CDH1 knockout cell line ab273747 (knockout cell lysate ab273781). To generate this image, wild-type and CDH1 knockout A431 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution.

All lanes:

Western blot - Anti-E Cadherin antibody [EP700Y] - Intercellular Junction Marker (<a href='/products/primary-antibodies/e-cadherin-antibody-ep700y-intercellular-junction-marker-ab40772'>ab40772</a>) at 1/1000 dilution

Lane 1:

Wild-type A431 cell lysate at 20 µg

Lane 2:

Western blot - Human CDH1 (E Cadherin) knockout A-431 cell lysate (ab273781)

Lane 2:

Western blot - Human CDH1 (E Cadherin) knockout A-431 cell line (<a href='/products/cell-lines/human-cdh1-e-cadherin-knockout-a-431-cell-line-ab273747'>ab273747</a>)

Lane 2:

CDH1 knockout A431 cell lysate at 20 µg

Lane 3:

Caco-2 cell lysate at 20 µg

Secondary

All lanes:

Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution

Predicted band size: 97 kDa

false

• WB

Lab

Western blot - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (AB256580)

This data was developed using the same antibody clone in a different buffer formulation (ab40772). False colour image of Western blot : Anti-E Cadherin antibody [EP700Y] - Intercellular Junction Marker staining at 1/10000 dilution, shown in green; Mouse anti-GAPDH antibody [6C5] (ab8245) loading control staining at 1/20000 dilution, shown in red. In Western blot, ab40772 was shown to bind specifically to E Cadherin. A band was observed at 105/130 kDa in wild-type Raji cell lysates with no signal observed at this size in CDH1 knockout cell line ab273747 (knockout cell lysate ab273781). To generate this image, wild-type and CDH1 knockout Raji cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution.

Lanes 1 - 4:

Western blot - Anti-E Cadherin antibody [EP700Y] - Intercellular Junction Marker (<a href='/products/primary-antibodies/e-cadherin-antibody-ep700y-intercellular-junction-marker-ab40772'>ab40772</a>) at 1/10000 dilution

Lanes 1 - 4:

Western blot - Anti-E Cadherin antibody [EP700Y] - Low endotoxin, Azide free (<a href='/products/primary-antibodies/e-cadherin-antibody-ep700y-low-endotoxin-azide-free-ab201499'>ab201499</a>) at 1/10000 dilution

Lanes 1 - 4:

Western blot - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (ab256580) at 1/10000 dilution

Lane 1:

Wild-type Raji cell lysate at 20 µg

Lane 2:

CDH1 knockout Raji cell lysate at 20 µg

Lane 3:

MCF7 cell lysate at 20 µg

Lane 4:

MDA-MB-231 cell lysate at 20 µg

Secondary

All lanes:

Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution

Observed band size: 105 kDa,130 kDa

false

• WB

Lab

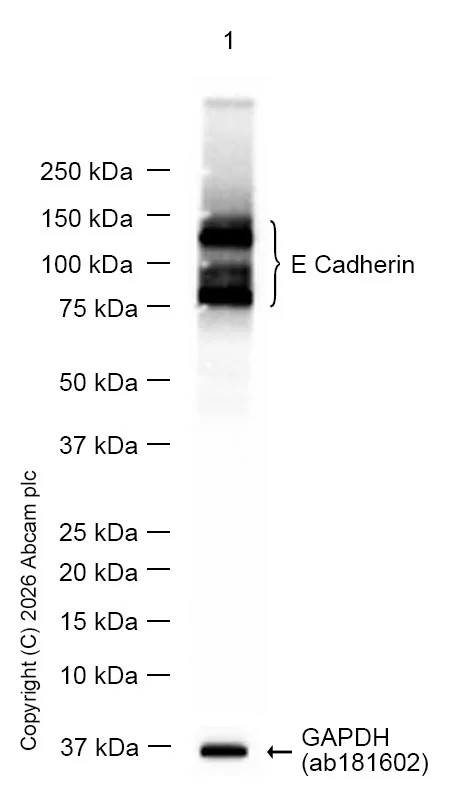

Western blot - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (AB256580)

This data was developed using ab40772, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/1000,000 dilution.

The full-length of E-cadherin is 120 kDa. The other bands are due to proteolytic cleavages in different Cadherin domains. (PMID : 14695147)

All lanes:

Western blot - Anti-E Cadherin antibody [EP700Y] - Intercellular Junction Marker (<a href='/products/primary-antibodies/e-cadherin-antibody-ep700y-intercellular-junction-marker-ab40772'>ab40772</a>) at 1/1000 dilution

All lanes:

U266B1 (human multiple myeloma B lymphocyte) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 120 kDa

Observed band size: 80-120 kDa,36 kDa

false

Exposure time: 7s

• WB

Lab

Western blot - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (AB256580)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab40772).

Blocking and diluting buffer : 5% NFDM/TBST.

Multi-bands can refer to PMID : 11212238; PMID : 14695147 and PMID : 22659456

All lanes:

Western blot - Anti-E Cadherin antibody [EP700Y] - Intercellular Junction Marker (<a href='/products/primary-antibodies/e-cadherin-antibody-ep700y-intercellular-junction-marker-ab40772'>ab40772</a>) at 1/10000 dilution

Lane 1:

MCF7 (Human breast adenocarcinoma epithelial cell). Whole cell lysates at 20 µg

Lane 2:

HT-29 (Human colorectal adenocarcinoma epithelial cell). Whole cell lysates at 20 µg

Lane 3:

PC-3 (Human prostate adenocarcinoma epithelial cell) Whole cell lysates at 20 µg

Lane 4:

MDA-MB-231 (Human breast adenocarcinoma epithelial cell) Whole cell lysates (negative control) at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 97 kDa

false

Exposure time: 23s

• WB

Lab

Western blot - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (AB256580)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab40772).

Blocking and diluting buffer and concentration 5% NFDM/TBST.
The full-length of E-cadherin is 120 kDa. The other bands are due to proteolytic cleavages in different Cadherin domains. (Ref : PMID : 14695147)

All lanes:

Western blot - Anti-E Cadherin antibody [EP700Y] - Intercellular Junction Marker (<a href='/products/primary-antibodies/e-cadherin-antibody-ep700y-intercellular-junction-marker-ab40772'>ab40772</a>) at 1/200000 dilution

All lanes:

MCF7 (Human breast adenocarcinoma ) whole cell lysates at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG H&L (HRP) at 1/1000 dilution

Predicted band size: 97 kDa

Observed band size: 100 kDa,120 kDa,80 kDa,97 kDa

false

Exposure time: 1min

• WB

Lab

Western blot - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (AB256580)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab40772).

Exposure time : 3 minutes for ab40772 and ab133597, 32 seconds for GAPDH.

Blocking and diluting buffer : 5% NFDM/TBST

Multi-bands can refer to PMID : 11212238; PMID : 14695147 and PMID : 22659456

Lane 1:

Western blot - Anti-E Cadherin antibody [EP700Y] - Intercellular Junction Marker (<a href='/products/primary-antibodies/e-cadherin-antibody-ep700y-intercellular-junction-marker-ab40772'>ab40772</a>) at 1/5000 dilution

Lane 2:

Western blot - Anti-E Cadherin antibody [EPR699] (<a href='/products/primary-antibodies/e-cadherin-antibody-epr699-ab133597'>ab133597</a>) at 1/2000 dilution

Lane 3:

Western blot - Anti-GAPDH antibody [EPR16891] - Loading Control (<a href='/products/primary-antibodies/gapdh-antibody-epr16891-loading-control-ab181602'>ab181602</a>)

All lanes:

PC-3 (Human prostate adenocarcinoma epithelial cell) Whole cell lysates at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 97 kDa

false

• WB

Lab

Western blot - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (AB256580)

Exposure time : 3.25 seconds. Blocking and diluting buffer : 5% NFDM/TBST. Full-length E Cadherin has a molecular weight of approximately 125 kDa. Other molecular weights between 80-100 kDa could also be observed depending on cell types or cell conditions. PMID : 27274359, PMID : 26983597, PMID : 18478055, PMID : 22375065. This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab40772).

All lanes:

Western blot - Anti-E Cadherin antibody [EP700Y] - Intercellular Junction Marker (<a href='/products/primary-antibodies/e-cadherin-antibody-ep700y-intercellular-junction-marker-ab40772'>ab40772</a>) at 1/1000 dilution

All lanes:

MCF7 (Human breast adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 97 kDa

Observed band size: 80-125 kDa

false

• WB

Lab

Western blot - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (AB256580)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab40772).

Exposure time : 1 second for ab40772, 3 minutes for ab133597, 32 seconds for GAPDH

Blocking and diluting buffer : 5% NFDM/TBST

Multi-bands can refer to PMID : 11212238; PMID : 14695147 and PMID : 22659456

Lane 1:

Western blot - Anti-E Cadherin antibody [EP700Y] - Intercellular Junction Marker (<a href='/products/primary-antibodies/e-cadherin-antibody-ep700y-intercellular-junction-marker-ab40772'>ab40772</a>) at 1/5000 dilution

Lane 2:

Western blot - Anti-E Cadherin antibody [EPR699] (<a href='/products/primary-antibodies/e-cadherin-antibody-epr699-ab133597'>ab133597</a>) at 1/2000 dilution

Lane 3:

Western blot - Anti-GAPDH antibody [EPR16891] - Loading Control (<a href='/products/primary-antibodies/gapdh-antibody-epr16891-loading-control-ab181602'>ab181602</a>)

All lanes:

HT-29 (Human colorectal adenocarcinoma epithelial cell). Whole cell lysates at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 97 kDa

Observed band size: 80 kDa

false

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (AB256580)

Immunohistochemistry of breast carcinoma staining E Cadherin with ab40772 at 1μg/ml.

Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab40772).

• OI-RD Scanning

Unknown

OI-RD Scanning - Anti-E Cadherin antibody [EP700Y] - BSA and Azide free (AB256580)

We have systematically measured KD (the equilibrium dissociation constant between the antibody and its antigen), of more than 840 recombinant antibodies to assess not only their individual KD values but also to see the average affinity of antibody. Based on the comparison with published literature values for mouse monoclonal antibodies, Recombinant antibodies appear to be on average 1-2 order of magnitude higher affinity.
