Anti-DNA Polymerase beta 抗体

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-DNA Polymerase beta antibody (AB26343)

ICC/IF image of ab26343 stained T47D cells. The cells were 100% methanol fixed (5 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody ab26343 at 1μg/ml overnight at +4°C. The secondary antibody (green) was DyLight® 488 goat anti- rabbit (ab96899) IgG (H+L) used at a 1/1000 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43μM.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-DNA Polymerase beta antibody (AB26343)

Image courtesy of Human Protein Atlas ab26343 staining DNA polymerase beta in Human gall bladder, showing a strong nuclear staining pattern in the columnar epithelial cells in contrast with the cells in the lamina propria. Paraffin embedded human gall bladder tissue was incubated with ab26343 (1/150 dilution) for 30 mins at room temperature. Antigen retrieval was performed by heat induction in citrate buffer pH 6.

ab26343 was tested in a tissue microarray (TMA) containing a wide range of normal and cancer tissues as well as a cell microarray consisting of a range of commonly used, well characterised human cell lines. Further results for this antibody can be found at www.proteinatlas.org

Image courtesy of Human Protein Atlas

• WB

Unknown

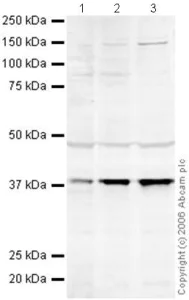

Western blot - Anti-DNA Polymerase beta antibody (AB26343)

All lanes:

Western blot - Anti-DNA Polymerase beta antibody (ab26343) at 0.5 µg/mL

Lane 1:

HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 20 µg

Lane 2:

Western blot - Jurkat whole cell lysate (<a href='/products/cell-lysates/jurkat-whole-cell-lysate-ab7899'>ab7899</a>) at 20 µg

Lane 3:

Western blot - A-431 whole cell lysate (<a href='/products/cell-lysates/a-431-whole-cell-lysate-ab7909'>ab7909</a>) at 20 µg

Secondary

All lanes:

Goat polyclonal to Rabbit IgG (Alexa Fluor® 680) at 1/10000 dilution

Predicted band size: 38 kDa

Observed band size: 150 kDa,38 kDa,48 kDa,90 kDa

false

• WB

Project

Western blot - Anti-DNA Polymerase beta antibody (AB26343)

All lanes:

Western blot - Anti-DNA Polymerase beta antibody (ab26343) at 1 µg/mL

Lane 1:

Western blot - NIH/3T3 whole cell lysate (<a href='/products/cell-lysates/nih-3t3-whole-cell-lysate-ab7179'>ab7179</a>) at 10 µg

Lane 2:

MEF1 (Mouse embryonic fibroblast cell line) Whole Cell Lysate at 10 µg

Lane 3:

PC12 (Rat adrenal pheochromocytoma cell line) Whole Cell Lysate at 10 µg

Secondary

All lanes:

IRDye 680 Conjugated Goat Anti-Rabbit IgG (H+L) at 1/10000 dilution

Predicted band size: 38 kDa

Observed band size: 120 kDa,30 kDa,38 kDa

false
