Anti-Claudin 4 抗体

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Claudin 4 antibody (AB15104)

Formalin fixed paraffin embedded human tonsil stained with ab15104 (1/200, 10 min at room temperature).

• IHC-P

PubMed

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Claudin 4 antibody (AB15104)

Immunohistochemical analysis of healthy and colitis mouse colon sections (untreated and treated with enoxaparin) labeling claudin-4 with ab15104 at 1/200. ab7090, anti-rabbit immunoglobulin G conjugated to horseradish peroxidase (HRP) at 1/300 was used as the secondary antibody. ab64238 at 1/50 was used to develop the histological signal.

Antigen retrieval was performed by incubating the sections for 10 minutes at 97°C in 1 mM EDTA buffer, pH 8.0 or 10 mM citrate buffer, pH 6.0.

Control, C; untreated colitis, DSS; oral enoxaparin, OE; intraperitoneal injection of enoxaparin, IPE.

Lean QY et al. PLoS One (2015) Reproduced under the Creative Commons license http://creativecommons.org/licenses/by/4.0/

• WB

Unknown

Western blot - Anti-Claudin 4 antibody (AB15104)

All lanes:

Western blot - Anti-Claudin 4 antibody (ab15104) at 1 µg/mL

All lanes:

SHSY-5Y (Human neuroblastoma cell line) Whole Cell Lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) preadsorbed (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-preadsorbed-ab97080'>ab97080</a>) at 1/5000 dilution

Predicted band size: 22 kDa

Observed band size: 125 kDa,20 kDa,34 kDa,35 kDa

true

Exposure time: 30s

• WB

Supplier Data

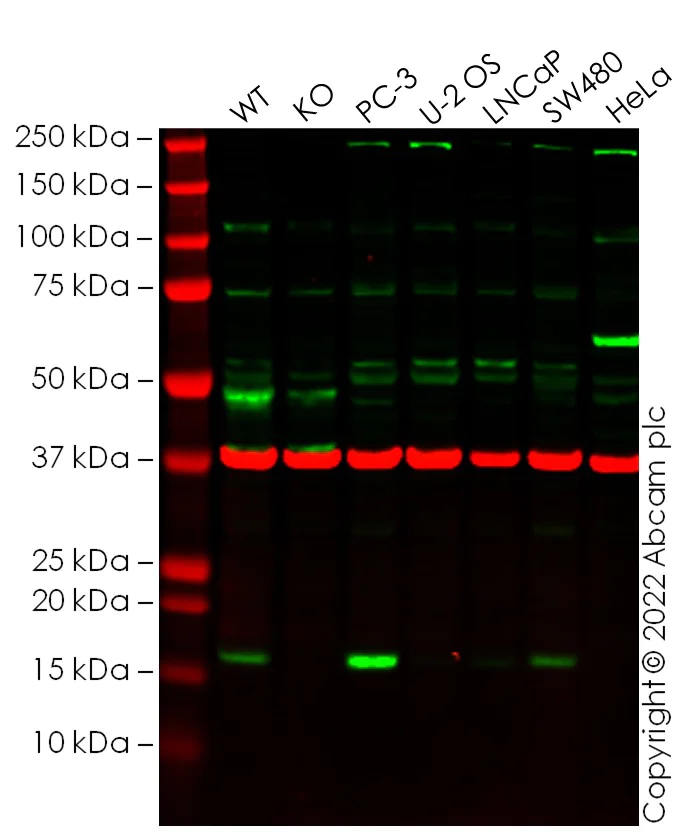

Western blot - Anti-Claudin 4 antibody (AB15104)

False colour image of Western blot : Anti-Claudin 4 antibody staining at 1 ug/ml, shown in green; Mouse anti-GAPDH antibody [6C5] (ab8245) loading control staining at 1/20000 dilution, shown in red. In Western blot, ab15104 was shown to bind specifically to Claudin 4. A band was observed at 17 kDa in wild-type MCF7 cell lysates with no signal observed at this size in CLDN4 knockout cell line ab274946 (knockout cell lysate ab275004). To generate this image, wild-type and CLDN4 knockout MCF7 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in fluorescent western blot (TBS-based) blocking solution before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution.

All lanes:

Western blot - Anti-Claudin 4 antibody (ab15104) at 1 µg/mL

Lane 1:

Wild-type MCF7 cell lysate at 20 µg

Lane 2:

Western blot - Human CLDN4 knockout MCF7 cell line (ab274946) at 20 µg

Lane 3:

PC-3 cell lysate at 20 µg

Lane 4:

U-2 OS cell lysate at 20 µg

Lane 5:

LNCaP cell lysate at 20 µg

Lane 6:

HeLa cell lysate at 20 µg

Lane 6:

SW480 cell lysate at 20 µg

Secondary

All lanes:

Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution

Predicted band size: 17 kDa

Observed band size: 22 kDa

false
