重组Anti-Bcl-XL抗体[E18] - BSA and Azide free

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Bcl-XL antibody [E18] - BSA and Azide free (AB199099)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human endometrium tissue labelling Bcl-XL with purified ab32370 at 1/2000. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. ab97051, a HRP-conjugated goat anti-rabbit HRP (H+L) was used as the secondary antibody (1/500). Negative control using PBS instead of primary antibody. Counterstained with hematoxylin.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32370).

• Flow Cyt (Intra)

Unknown

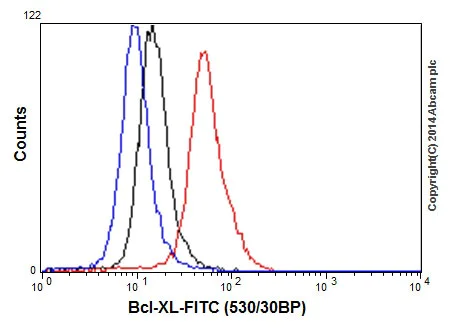

Flow Cytometry (Intracellular) - Anti-Bcl-XL antibody [E18] - BSA and Azide free (AB199099)

Intracellular Flow Cytometry analysis of Jurkat cells labelling Bcl-XL with purified ab32370 at 1/20 (red). Cells were fixed with 2% paraformaldehyde. A FITC-conjugated goat anti-rabbit IgG (1/150) was used as the secondary antibody. Black - Isotype control, rabbit monoclonal IgG. Blue - Unlabelled control, cells without incubation with primary and secondary antibodies.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32370).

• Flow Cyt (Intra)

Unknown

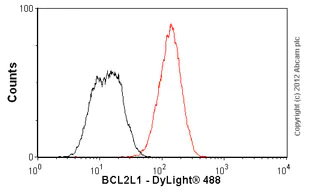

Flow Cytometry (Intracellular) - Anti-Bcl-XL antibody [E18] - BSA and Azide free (AB199099)

Overlay histogram showing DU145 cells stained with unpurified ab32370 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab32370, 1/100 dilution) for 30 min at 22°C. The secondary antibody used was a goat anti-rabbit DyLight® 488 (IgG; H+L) (ab96899) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (1μg/1x10⁶ cells) used under the same conditions. Acquisition of >5,000 events was performed.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32370).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Bcl-XL antibody [E18] - BSA and Azide free (AB199099)

Immunocytochemistry/Immunofluorescence analysis of HeLa cells labelling Bcl-XL with purified ab32370 at 1/500. Cells were fixed with 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. ab150077, a goat anti-rabbit Alexa Fluor^® 488 (IgG; 1/500) was used as the secondary antibody. DAPI (blue) was used as the nuclear counterstain.

Control : primary antibody (1/500) and secondary antibody, ab150120, an Alexa Fluor^® 594-conjugated goat anti-mouse IgG (1/500).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32370).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Bcl-XL antibody [E18] - BSA and Azide free (AB199099)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human prostate carcinoma tissue labelling Bcl-XL with unpurified ab32370 at 1/50.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32370).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Bcl-XL antibody [E18] - BSA and Azide free (AB199099)

ICC/IF image of unpurified ab32370 stained HepG2 cells. The cells were 4% formaldehyde fixed (10 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab32370, 1/100) overnight at +4°C. The secondary antibody (green) was ab96899, goat anti-rabbit DyLight^® 488 (IgG; H+L) used at a 1/250 dilution for 1h. Alexa Fluor^® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43µM.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32370).

• IHC-P

PubMed

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Bcl-XL antibody [E18] - BSA and Azide free (AB199099)

Immunohistochemistry of human primary melanoma, staining Bcl-XL (red) with unpurified ab32370.
Antigen retrieval was performed in EDTA/Tris buffer (pH 8) before being blocked with 10%NGS for one hour at room temperature. Samples were incubated with primary antibody (1/50) at room temperature for one hour. An AlexaFluor®-conjugated anti-rabbit IgG was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32370).

Image from Medic S & Ziman M PLoS One. 2010 Apr 22;5(4):e9977. Fig 5.; doi:10.1371/journal.pone.0009977; April 22 2010 PLoS ONE 5(4): e9977.

• IP

Unknown

Immunoprecipitation - Anti-Bcl-XL antibody [E18] - BSA and Azide free (AB199099)

ab32370 (purified) at 1/30 immunoprecipitating Bcl-XL in Jurkat cell lysate (Lane 1). Lane 2 - PBS. For western blotting, a HRP-conjugated anti-rabbit IgG, specific to the non-reduced form of IgG was used as the secondary antibody (1/1500).

Blocking buffer and concentration : 5% NFDM/TBST.

Diluting buffer and concentration : 5% NFDM /TBST.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32370).

All lanes:

Immunoprecipitation - Anti-Bcl-XL antibody [E18] (<a href='/products/primary-antibodies/bcl-xl-antibody-e18-ab32370'>ab32370</a>)

Predicted band size: 26 kDa

Observed band size: 26 kDa

false

• WB

Lab

Western blot - Anti-Bcl-XL antibody [E18] - BSA and Azide free (AB199099)

Blocking buffer and concentration : 5% NFDM/TBST

Diluting buffer and concentration : 5% NFDM/TBST

All lanes:

Western blot - Anti-Bcl-XL antibody [E18] - BSA and Azide free (ab199099)

All lanes:

C6 (rat glioma) whole cell lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>)

Predicted band size: 26 kDa

false

Exposure time: 30s

• OI-RD Scanning

Unknown

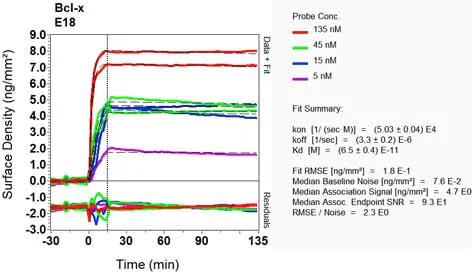

OI-RD Scanning - Anti-Bcl-XL antibody [E18] - BSA and Azide free (AB199099)

We have systematically measured KD (the equilibrium dissociation constant between the antibody and its antigen), of more than 840 recombinant antibodies to assess not only their individual KD values but also to see the average affinity of antibody. Based on the comparison with published literature values for mouse monoclonal antibodies, Recombinant antibodies appear to be on average 1-2 order of magnitude higher affinity.
