重组Anti-AMPK alpha 1抗体[Y365] - BSA and Azide free

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-AMPK alpha 1 antibody [Y365] - BSA and Azide free (AB210714)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analaysis of human cervical carcinoma tissue labelling AMPK alpha 1 with unpurified ab32047 at a dilution of 1/100.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32047).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-AMPK alpha 1 antibody [Y365] - BSA and Azide free (AB210714)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human lung carcinoma tissue labelling AMPK alpha 1 with purified ab32047 at 1/100. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. ab97051, a HRP-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody (1/500). Negative control using PBS instead of primary antibody. Counterstained with hematoxylin.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32047).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-AMPK alpha 1 antibody [Y365] - BSA and Azide free (AB210714)

Immunocytochemistry/Immunofluorescence analysis of MCF7 cells labelling AMPK alpha 1 with purified ab32047 at 1/250. Cells were fixed with 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. ab150077, an Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/500) was used as the secondary antibody. DAPI (blue) was used as the nuclear counterstain. ab7291, a mouse anti-tubulin (1/1000) and ab150120, an Alexa Fluor^® 594-conjugated goat anti-mouse IgG (1/500) were also used.

Control 1 : primary antibody (1/250) and secondary antibody, ab150120, an Alexa Fluor^® 594-conjugated goat anti-mouse IgG (1/500).

Control 2 : ab7291 (1/1000) and secondary antibody, ab150077, an Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/500).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32047).

• Flow Cyt (Intra)

Unknown

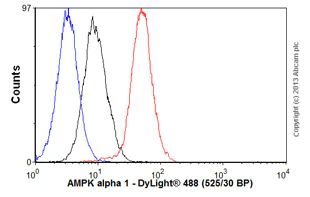

Flow Cytometry (Intracellular) - Anti-AMPK alpha 1 antibody [Y365] - BSA and Azide free (AB210714)

Overlay histogram showing HeLa cells stained with unpurified ab32047 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (unpurified ab32047, 1/100 dilution) for 30 min at 22°C. The secondary antibody used was DyLight^® 488 goat anti-rabbit IgG (H+L) (ab96899) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (1μg/1x10⁶ cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32047).

• Flow Cyt (Intra)

Unknown

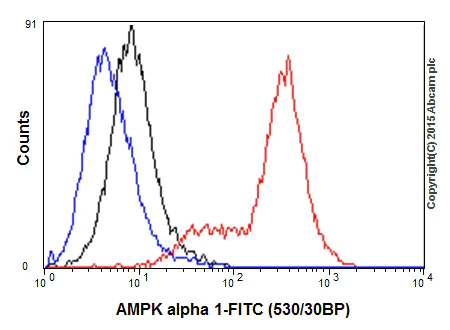

Flow Cytometry (Intracellular) - Anti-AMPK alpha 1 antibody [Y365] - BSA and Azide free (AB210714)

Intracellular Flow Cytometry analysis of HeLa cells labelling AMPK alpha 1 with purified ab32047 at 1/150 (red). Cells were fixed with 2% paraformaldehyde. A FITC-conjugated goat anti-rabbit IgG (1/150) was used as the secondary antibody. Black - Isotype control, rabbit monoclonal IgG. Blue - Unlabelled control, cells without incubation with primary and secondary antibodies.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32047).

• IP

Unknown

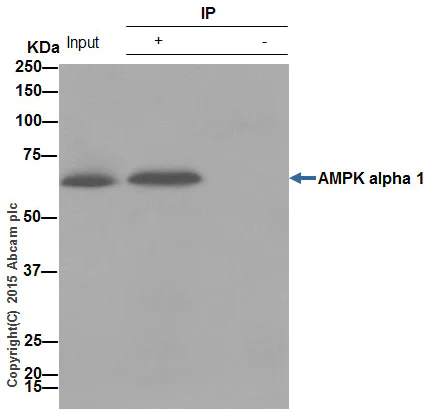

Immunoprecipitation - Anti-AMPK alpha 1 antibody [Y365] - BSA and Azide free (AB210714)

ab32047 (purified) at 1/40 immunoprecipitating AMPK alpha 1 in HeLa whole cell lysate.

Lane 1 (input) : HeLa whole cell lysate (10μg)

Lane 2 (+) : ab32047 + HeLa whole cell lysate (10μg).

Lane 3 (-) : Rabbit monoclonal IgG (ab172730) instead of ab32047 in HeLa whole cell lysate.

For western blotting, VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/1500 dilution.

Blocking buffer and concentration : 5% NFDM/TBST.

Diluting buffer and concentration : 5% NFDM /TBST.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32047).

All lanes:

Immunoprecipitation - Anti-AMPK alpha 1 antibody [Y365] (<a href='/products/primary-antibodies/ampk-alpha-1-antibody-y365-ab32047'>ab32047</a>)

Predicted band size: 64 kDa

Observed band size: 63 kDa

false

• WB

Lab

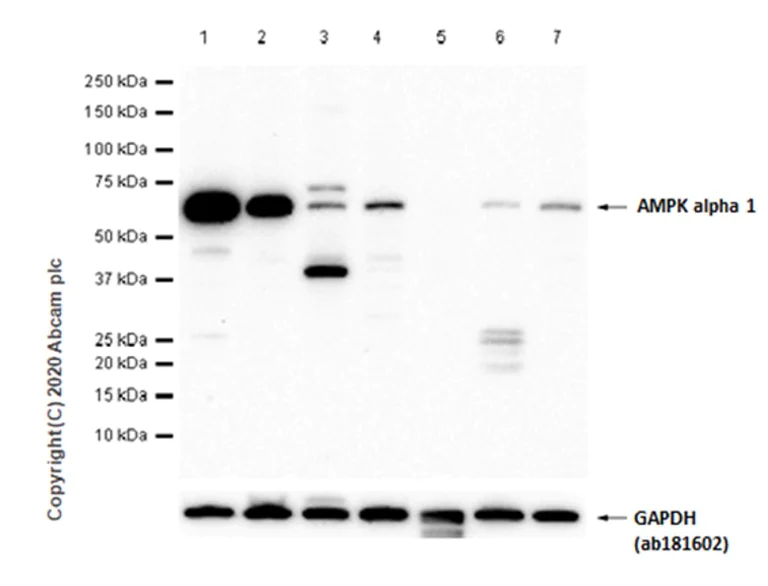

Western blot - Anti-AMPK alpha 1 antibody [Y365] - BSA and Azide free (AB210714)

Blocking/Diluting buffer and concentration : 5% NFDM/TBST.

This antibody shows low sensitivity in mouse samples.
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32047).

All lanes:

Western blot - Anti-AMPK alpha 1 antibody [Y365] (<a href='/products/primary-antibodies/ampk-alpha-1-antibody-y365-ab32047'>ab32047</a>) at 1/500 dilution

Lane 1:

HepG2 (human liver hepatocellular carcinoma cell line) whole cell lysate at 20 µg

Lane 2:

NIH/3T3 (Mouse embryonic fibroblast) whole cell lysate at 20 µg

Lane 3:

Mouse liver tissue lysate at 20 µg

Lane 4:

Mouse brain tissue lysate at 20 µg

Lane 5:

Mouse kidney tissue lysate at 20 µg

Lane 6:

Mouse retina tissue lysate at 20 µg

Lane 7:

Mouse skeletal muscle tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 64 kDa

Observed band size: 40 kDa,63 kDa

false

Exposure time: 3min

• WB

Lab

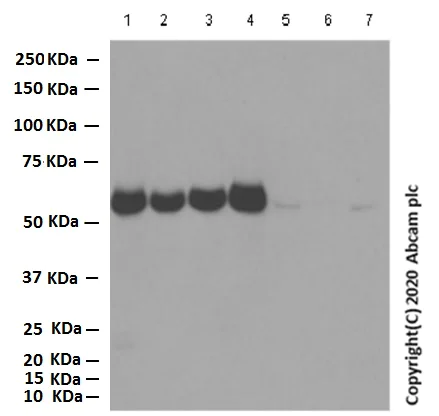

Western blot - Anti-AMPK alpha 1 antibody [Y365] - BSA and Azide free (AB210714)

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

This antibody shows low sensitivity in mouse and rat samples.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32047).

All lanes:

Western blot - Anti-AMPK alpha 1 antibody [Y365] (<a href='/products/primary-antibodies/ampk-alpha-1-antibody-y365-ab32047'>ab32047</a>) at 1/20000 dilution

Lane 1:

MCF7 (Human breast adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 2:

HepG2 (Human hepatocellular carcinoma epithelial cell) whole cell lysate at 20 µg

Lane 3:

HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 4:

K-562 (Human chronic myelogenous leukemia lymphoblast) whole cell lysate at 20 µg

Lane 5:

C6 (Rat glial tumor glial cell) whole cell lysate at 20 µg

Lane 6:

Neuro-2a (Mouse neuroblastoma neuroblast) whole cell lysate at 20 µg

Lane 7:

NIH/3T3 (Mouse embryonic fibroblast) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 64 kDa

Observed band size: 63 kDa

false

Exposure time: 180s

• WB

Lab

Western blot - Anti-AMPK alpha 1 antibody [Y365] - BSA and Azide free (AB210714)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32047).

Blocking and diluting buffer and concentration : 5% NFDM /TBST.

ab181602 was used as a GAPDH loading control at 1/1000000 dilution.

This blot was developed using a higher sensitivity ECL substrate.

Compared with ab32047, ab271188 has higher sensitivity, we recommend ab271188 as an alternative for testing AMPK alpha 1 in mouse and rat samples in western blot.

Lanes 1 - 8:

Western blot - Anti-AMPK alpha 1 antibody [Y365] (<a href='/products/primary-antibodies/ampk-alpha-1-antibody-y365-ab32047'>ab32047</a>) at 1/1000 dilution

Lanes 1 - 8:

Western blot - Anti-AMPK alpha 1 antibody [EPR24413-70] (<a href='/products/primary-antibodies/ampk-alpha-1-antibody-epr24413-70-ab271188'>ab271188</a>) at 1/1000 dilution

Lane 1:

NIH/3T3 (mouse embryonic fibroblast) whole cell lysate at 20 µg

Lane 2:

Neuro-2a (mouse neuroblastoma neuroblast) whole cell lysate at 20 µg

Lane 3:

C6 (rat glial tumor glial cell) whole cell lysate at 20 µg

Lane 4:

Mouse brain tissue lysate at 20 µg

Lane 5:

Mouse heart tissue lysate at 20 µg

Lane 6:

Mouse skeletal muscle tissue lysate at 20 µg

Lane 7:

Rat brain tissue lysate at 20 µg

Lane 8:

Rat heart tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 64 kDa

true

Exposure time: 180s

• WB

Lab

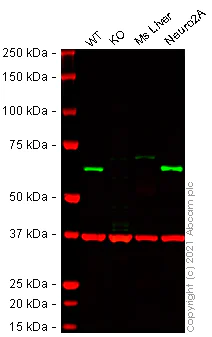

Western blot - Anti-AMPK alpha 1 antibody [Y365] - BSA and Azide free (AB210714)

False colour image of Western blot : Anti-AMPK alpha 1 antibody [Y365] staining at 1/1000 dilution, shown in green; Mouse anti-GAPDH antibody [6C5] (ab8245) loading control staining at 1/20000 dilution, shown in red. In Western blot, ab32047 was shown to bind specifically to AMPK alpha 1. A band was observed at 64 kDa in wild-type RAW 264.7 cell lysates with no signal observed at this size in PRKAA1 knockout cell line ab280055 (knockout cell lysate ab280114). To generate this image, wild-type and PRKAA1 knockout RAW 264.7 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween$®$ 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged.Secondary antibodies used were Goat anti-Rabbit IgG H&L (IRDye$®$ 800CW) preabsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye$®$ 680RD) preabsorbed (ab216776) at 1/20000 dilution.

All lanes:

Western blot - Anti-AMPK alpha 1 antibody [Y365] (<a href='/products/primary-antibodies/ampk-alpha-1-antibody-y365-ab32047'>ab32047</a>) at 1/1000 dilution

Lane 1:

Wild-type RAW 264.7 cell lysate at 20 µg

Lane 2:

PRKAA1 knockout RAW 264.7 cell lysate at 20 µg

Lane 2:

Western blot - Mouse PRKAA1 knockout RAW 264.7 cell line (<a href='/products/cell-lines/mouse-prkaa1-knockout-raw-2647-cell-line-ab280055'>ab280055</a>)

Lane 3:

Mouse Liver cell lysate at 20 µg

Lane 4:

Neuro2A cell lysate at 20 µg

Predicted band size: 64 kDa

Observed band size: 64 kDa

false

• WB

Lab

Western blot - Anti-AMPK alpha 1 antibody [Y365] - BSA and Azide free (AB210714)

Blocking and dilution buffer : 5% NFDM/TBST.
This antibody shows low sensitivity in mouse and rat samples.
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32047).

All lanes:

Western blot - Anti-AMPK alpha 1 antibody [Y365] (<a href='/products/primary-antibodies/ampk-alpha-1-antibody-y365-ab32047'>ab32047</a>) at 1/2000 dilution

Lane 1:

C6 cell lysate at 20 µg

Lane 2:

NIH/3T3 cell lysate at 20 µg

Secondary

All lanes:

Peroxidase-conjugated goat anti-rabbit IgG, (H+L) at 1/1000 dilution

Predicted band size: 64 kDa

Observed band size: 63 kDa

false
