AB196540

重组Alexa Fluor® 647荧光Anti-GAP43抗体[EP890Y] - Neuronal Marker

Alexa Fluor® 647 Anti-GAP43 antibody [EP890Y] - Neuronal Marker

RabMAb
Recombinant
了解详情

Be the first to review this product! Submit a review

(1 Publication)

Rabbit Recombinant Monoclonal GAP43 antibody - conjugated to Alexa Fluor® 647. Neuron marker. Suitable for ICC/IF, Flow Cyt (Intra) and reacts with Human samples. Cited in 1 publication.

查看别名

Neuromodulin, Axonal membrane protein GAP-43, Growth-associated protein 43, Neural phosphoprotein B-50, pp46, GAP43

2 Images

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-GAP43 antibody [EP890Y] - Neuronal Marker (AB196540)

ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-GAP43 antibody [EP890Y] - Neuronal Marker (AB196540)

ab196540 staining GAP43 in U87MG cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab196540 at a 1/100 dilution (shown in red) and ab195887, Mouse monoclonal to alpha Tubulin (Alexa Fluor^® 488), at a 1/250 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

This product also gave a positive signal under the same testing conditions in U87MG cells fixed with 4% formaldehyde (10 min).

Flow Cytometry (Intracellular) - Alexa Fluor® 647 Anti-GAP43 antibody [EP890Y] - Neuronal Marker (AB196540)

Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Alexa Fluor® 647 Anti-GAP43 antibody [EP890Y] - Neuronal Marker (AB196540)

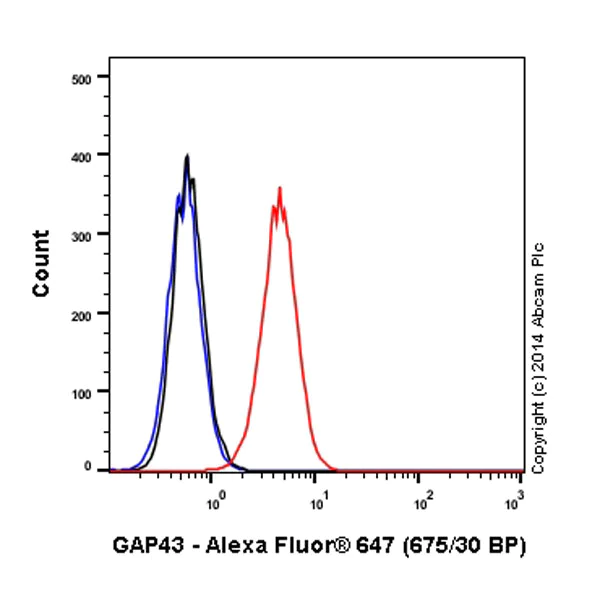

Overlay histogram showing U-87MG cells stained with ab196540 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab196540, 1/50 dilution) for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) Alexa Fluor^® 647 used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control.

Acquisition of >5,000 events were collected using a solid-state 25mW red diode laser (635 nm) and 675/30 bandpass filter.

This antibody gave a positive signal in U-87MG fixed with 4% formaldehyde (10 min)/permeabilized with 0.1% PBS-Tween for 20 min used under the same conditions.

不同偶联物与剂型 (3)

578 PE

PE Anti-GAP43 antibody [EP890Y] - Neuronal Marker
519 Alexa Fluor® 488

Alexa Fluor® 488 Anti-GAP43 antibody [EP890Y] - Neuronal Marker
HRP

HRP Anti-GAP43 antibody [EP890Y] - Neuronal Marker

关键信息

宿主种属

Rabbit

克隆

Monoclonal

克隆号

EP890Y

亚型

IgG

偶联物

Alexa Fluor® 647

激发波长/发射波长

Ex: 650nm, Em: 665nm

不含载体蛋白

反应种属

Human

应用

ICC/IF, Flow Cyt (Intra)

applications

免疫原

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

反应性数据

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/100", "ICCIF-species-notes": "<p>This product gave a positive signal in U87MG cells fixed with 4% formaldehyde (10 min) and 100% methanol (5 min)</p>", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "1/50", "FlowCytIntra-species-notes": "<p><a href='/products/primary-antibodies/alexa-fluor-647-rabbit-igg-monoclonal-epr25a-isotype-control-ab199093'>ab199093</a> - Rabbit monoclonal IgG (Alexa Fluor®; 647), is suitable for use as an isotype control with this antibody.</p>" }, "Mouse": { "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "" }, "Rat": { "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "" } } }

style

left-column

产品详情

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

Alexa Fluor® is a registered trademark of Molecular Probes, Inc, a Thermo Fisher Scientific Company. The Alexa Fluor® dye included in this product is provided under an intellectual property license from Life Technologies Corporation. As this product contains the Alexa Fluor® dye, the purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). As this product contains the Alexa Fluor® dye the sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: in manufacturing; (ii) to provide a service, information, or data in return for payment (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are sold for use in research. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@thermofisher.com.

style

left-column

性能和储存信息

形式

Liquid

纯化工艺

Affinity purification Protein A

存储溶液

pH: 7.4 Preservative: 0.02% Sodium azide Constituents: PBS, 30% Glycerol (glycerin, glycerine), 1% BSA

运输条件

Blue Ice

分装信息

Upon delivery aliquot

储存信息

Avoid freeze / thaw cycle|Store in the dark

style

left-column

补充信息

This supplementary information is collated from multiple sources and compiled automatically.

GAP43 commonly called Growth Associated Protein 43 or neuronal marker is a protein with a molecular weight of approximately 25-50 kDa. Researchers identify it by various names including GAP-43 GAP43 anticuerpo or GAP43 neuronal marker. This protein exhibits a specific presence in the nervous system especially in axons of neurons. It has significant expression during neural development and regeneration indicating its role in growth and repair.

Biological function summary

GAP43 plays an important role in neurite outgrowth and synaptic plasticity. It functions as an important mediator of signal transduction in neurons. GAP43 does not act alone but integrates into a network of signaling pathways that guide axonal elongation and branching. It works closely with cytoskeletal elements influencing the structural dynamics needed for effective neuronal response and adaptation.

Pathways

GAP43 is vital in the regulation of the protein kinase C pathway and the cAMP pathway both essential for neuronal growth and differentiation. It closely interacts with proteins such as calmodulin which binds to GAP43 and impacts its function in those pathways. These interactions highlight its role in the modulation of neuronal growth and synaptic plasticity making it essential for neurons' response to environmental signals.

GAP43 associates with neurodegenerative diseases and cognitive disorders particularly Alzheimer's disease and schizophrenia. Changes in GAP43 expression levels correlate with the severity and progression of these conditions. Additionally GAP43 connects to other proteins implicated in such diseases like tau in Alzheimer's suggesting a multifaceted involvement in disease mechanisms. This makes it a target of interest for therapeutic research as modulating GAP43 activity might alter disease progression.

style

left-column

style

left-column

产品实验方案

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

靶点信息

This protein is associated with nerve growth. It is a major component of the motile 'growth cones' that form the tips of elongating axons. Plays a role in axonal and dendritic filopodia induction.

See full target information GAP43

style

left-column

文献 (1)

Recent publications for all applications. Explore the full list and refine your search

eLife 7: PubMed29993362

2018

Highly multiplexed immunofluorescence imaging of human tissues and tumors using t-CyCIF and conventional optical microscopes.

Applications

Unspecified application

Species

Unspecified reactive species

Jia-Ren Lin,Benjamin Izar,Shu Wang,Clarence Yapp,Shaolin Mei,Parin M Shah,Sandro Santagata,Peter K Sorger

View all publications
