Alexa Fluor® 647 Anti-Cytokeratin 5 抗体 [EP1601Y]

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-Cytokeratin 5 antibody [EP1601Y] (AB193895)

Immunohistochemical analysis of paraffin-embedded Human bladder cancer tissue labeling Cytokeratin 5 with ab193895 at 1/100 dilution.

Positive staining on human bladder cancer.

The section was incubated with ab193895 for 60 mins at room temperature (shown in red). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Fluoromount^®.

The immunostaining was performed on a Leica Biosystems BOND RX instrument.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 40 mins.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-Cytokeratin 5 antibody [EP1601Y] (AB193895)

ab193895 staining Cytokeratin 5 in HACAT cells. The cells were fixed with 4% formaldehyde (10 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 10% normal goat serum in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab193895 at 1/200 dilution (shown in red) and ab195887, Mouse monoclonal to alpha Tubulin (Alexa Fluor^® 488), at 1/200 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue).
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-Cytokeratin 5 antibody [EP1601Y] (AB193895)

ab193895 staining Cytokeratin 5 in A431 cells. The cells were fixed with 4% formaldehyde (10 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab193895 at 1/100 dilution (shown in red) and ab195887, Mouse monoclonal to alpha Tubulin (Alexa Fluor^® 488), at 1/250 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

This product also gave a positive signal under the same testing conditions in A431 cells fixed with 100% methanol (5min).

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-Cytokeratin 5 antibody [EP1601Y] (AB193895)

Immunohistochemical analysis of paraffin-embedded Human skin tissue labeling Cytokeratin 5 with ab193895 at 1/100 dilution.

Positive staining on human skin.

The section was incubated with ab193895 for 60 mins at room temperature (shown in red). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Fluoromount^®.

The immunostaining was performed on a Leica Biosystems BOND RX instrument.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 40 mins.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-Cytokeratin 5 antibody [EP1601Y] (AB193895)

Immunohistochemical analysis of paraffin-embedded Human cerebrum tissue labeling Cytokeratin 5 with ab193895 at 1/100 dilution.

Negative control : no staining on human cerebrum.

The section was incubated with ab193895 for 60 mins at room temperature (shown in red). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Fluoromount^®.

The immunostaining was performed on a Leica Biosystems BOND RX instrument.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 40 mins.

• Flow Cyt (Intra)

Lab

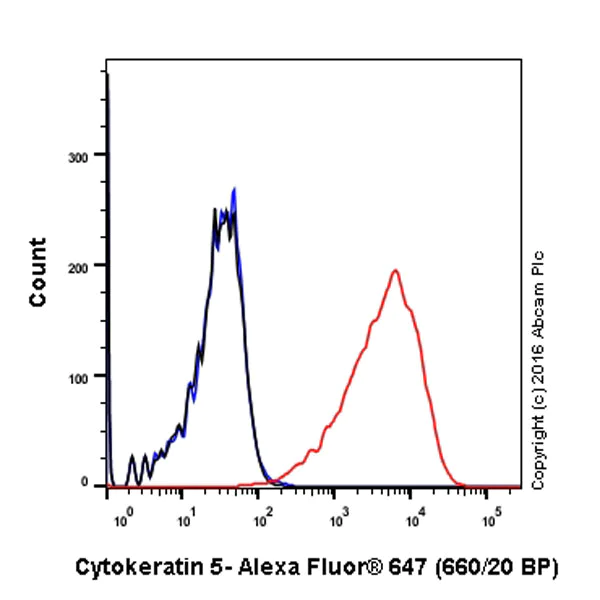

Flow Cytometry (Intracellular) - Alexa Fluor® 647 Anti-Cytokeratin 5 antibody [EP1601Y] (AB193895)

Flow Cytometry analysis of A431 (human epidermoid carcinoma) cells labeling Cytokeratin 5 with purified ab193895 at 1/500 dilution (1 μg/mL) (red). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. A Goat anti rabbit IgG (Alexa Fluor® 647) was used as the secondary antibody. Rabbit monoclonal IgG (Black) was used as the isotype control, cells without incubation with primary antibody and secondary antibody (Blue) was used as the unlabeled control.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-Cytokeratin 5 antibody [EP1601Y] (AB193895)

Immunohistochemical analysis of paraffin-embedded Rat skin tissue labeling Cytokeratin 5 with ab193895 at 1/100 dilution.

Positive staining on rat skin.

The section was incubated with ab193895 for 60 mins at room temperature (shown in red). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Fluoromount^®.

The immunostaining was performed on a Leica Biosystems BOND RX instrument.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 40 mins.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-Cytokeratin 5 antibody [EP1601Y] (AB193895)

Immunohistochemical analysis of paraffin-embedded Mouse skin tissue labeling Cytokeratin 5 with ab193895 at 1/100 dilution.

Positive staining on mouse skin.

The section was incubated with ab193895 for 60 mins at room temperature (shown in red). Nuclear DNA was labeled with DAPI (shown in blue). The section was then mounted using Fluoromount^®.

The immunostaining was performed on a Leica Biosystems BOND RX instrument.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 40 mins.
