Anti-6X His tag® 抗体 [EPR20547] - ChIP Grade

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HEK-293T (human epithelial cell line from embryonic kidney transformed with large T antigen) cells transfected with GFP-Myc-His vector expression construct labeling 6X His tag® with ab213204 at 1/100 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (white). Confocal image showing positive staining on HEK-293T cells transfected with GFP-Myc-His vector expression construct.

The nuclear counter stain is DAPI (blue). Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) (ab195889) (red) at 1/200 dilution.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution.

• Flow Cyt

Supplier Data

Flow Cytometry - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Flow cytometric analysis of 4% paraformaldehyde-fixed, 90% methanol permeabilized HEK-293T (human epithelial cell line from embryonic kidney transformed with large T antigen) transfected with GFP-Myc-His vector labeling 6X His tag® with ab213204 (right panel) at 1/5000 dilution compared with a Rabbit IgG, monoclonal [EPR25A] - Isotype Control (ab172730) (left panel). Goat Anti-Rabbit IgG H&L (Alexa Fluor® 647) (ab150079) at 1/2000 dilution was used as the secondary antibody.

Gate is set between transfected and untransfected HEK-293T cells.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Immunohistochemical analysis of agarose-embedded HEK-293T (human epithelial cell line from embryonic kidney transformed with large T antigen) transfected with a His-tagged Staphylococcus aureus cas9 (J7RUA5; aa1-1053; 125kDa) construct labeling 6X His tag® with ab213204 at 1/16000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

Left image : Positive staining on HEK-293T transfected with a His-tagged Staphylococcus aureus cas9 (J7RUA5; aa1-1053; 125kDa) construct. Right image : No staining on HEK-293T transfected with an empty expression vector.

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Immunohistochemical analysis of paraffin-embedded human liver tissue labeling 6X His tag® with ab213204 at 1/16000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Negative control : No staining on human liver.

Counter stained with Hematoxylin.

• ChIP

Supplier Data

ChIP - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Chromatin was prepared from MCF7 (human breast adenocarcinoma cell line) cells transfected with 6X His-tagged GATA3 according to the Abcam X-ChIP protocol. Cells were fixed with formaldehyde for 10 minutes. The ChIP was performed with 25μg of chromatin, 2μg of ab213204 (blue), and 20μl of A/G sepharose beads slurry (10μl of sepharose A beads + 10μl of sepharose G beads). 2μg of rabbit normal IgG was added to the beads control (yellow). The immunoprecipitated DNA was quantified by real time PCR (Sybr green approach).

ChIP was performed according to the literature (PMID : 22951069).

• IP

Supplier Data

Immunoprecipitation - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

His-tagged Staphylococcus aureus cas9 was immunoprecipitated from 0.35 mg of HEK-293T (human epithelial cell line from embryonic kidney transformed with large T antigen) transfected with a His-tagged Staphylococcus aureus cas9 (J7RUA5; aa1-1053; 125 kDa) construct, whole cell lysate with ab213204 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab213204 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10,000 dilution

Lane 1 : HEK-293T transfected with His-tagged Staphylococcus aureus cas9 construct, whole cell lysate 10 μg (Input).

Lane 2 : ab213204 IP in HEK-293T transfected with His-tagged Staphylococcus aureus cas9 construct, whole cell lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab213204 in HEK-293T transfected with His-tagged Staphylococcus aureus cas9 construct, whole cell lysate.

Blocking/Dilution buffer : 5% NFDM/TBST.

Exposure time : 1 second.

All lanes:

Immunoprecipitation - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204)

Observed band size: 125 kDa

false

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Immunohistochemical analysis of paraffin-embedded rat stomach tissue labeling 6X His tag® with ab213204 at 1/16000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Negative control : No staining on rat stomach.

Counter stained with Hematoxylin.

• WB

Supplier Data

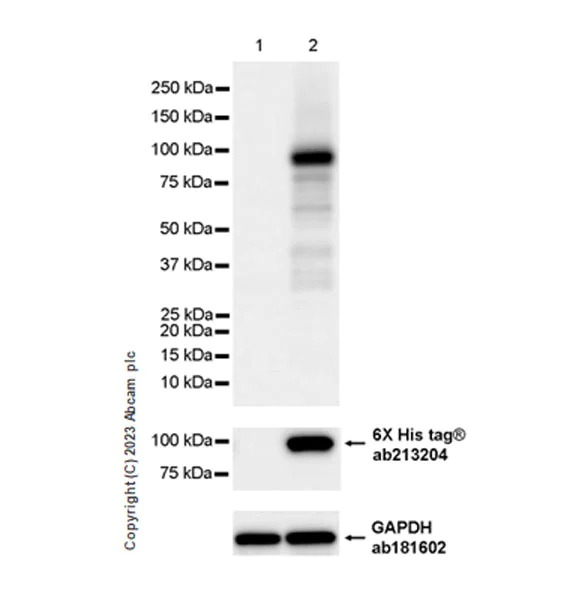

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Blocking and diluting buffer and concentration : 5% NFDM/TBST In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution. In Western blot, Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204) staining at 1/5000 dilution Exposure time : 8 seconds

All lanes:

Western blot - Anti-Influenza A virus PB1 antibody [EPR28248-26] (<a href='/products/primary-antibodies/influenza-a-virus-pb1-antibody-epr28248-26-ab313887'>ab313887</a>) at 1/1000 dilution

Lane 1:

293T (human embryonic kidney epithelial cell) cells transfected with an empty vector containing a myc-His-tag® whole cell lysate at 7 µg

Lane 2:

293T cells transfected with an Influenza A virus PB1 expression vector containing a myc-His-tag® whole cell lysate at 7 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 87 kDa

false

Exposure time: 8s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

This antibody does not cross-react with human STAG2.

In Western blot, Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204) staining at 1/5000 dilution.

All lanes:

Western blot - Anti-SA1 antibody [EPR26227-76] (<a href='/products/primary-antibodies/sa1-antibody-epr26227-76-ab317301'>ab317301</a>) at 1/1000 dilution

Lane 1:

His-tagged Human STAG1 protein with NFDM/TBST

Lane 2:

His-tagged Human STAG2 protein with NFDM/TBST

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 19 kDa,38 kDa

false

Exposure time: 180s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

All lanes:

Western blot - Anti-Histone H2B (mutated E76Q) antibody [EPR27299-85] (<a href='/products/primary-antibodies/histone-h2b-mutated-e76q-antibody-epr27299-85-ab309100'>ab309100</a>) at 1/1000 dilution

Lane 1:

293T cells transfected with an empty vector containi a His-tag whole cell lysate at 20 µg

Lane 2:

293T cells transfected with a human H2BC4 E76Q expression vector containi a His-tag whole cell lysate at 20 µg

Lane 3:

293T cells transfected with a human H2BC4 (WT) expression vector containi a His-tag whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 20 kDa

false

Exposure time: 26s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Blocking and diluting buffer and concentration : 5% NFDM/TBST In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution. In Western blot, Anti-TDP43 antibody [EPR18554-55] (ab190963) staining at 1/1000 dilution. In Western blot, Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204) staining at 1/5000 dilution.

All lanes:

Western blot - Anti-TDP43 (phospho S410) antibody [EPR24512-8] (<a href='/products/primary-antibodies/tdp43-phospho-s410-antibody-epr24512-8-ab314301'>ab314301</a>) at 1/1000 dilution

Lane 1:

293T (human embryonic kidney epithelial cell) cells transfected with an empty vector containing a His-tag, whole cell lysate (untreated membrane) at 20 µg

Lane 2:

293T cells transfected with a human TDP43 expression vector containing a His-tag, whole cell lysate (untreated membrane) at 20 µg

Lane 3:

293T cells transfected with a human TDP43 expression vector containing a His-tag were treated with 1 uM Okadaic Acid for 60 minutes, whole cell lysate (untreated membrane) at 20 µg

Lane 4:

293T cells transfected with a human TDP43 expression vector containing a His-tag were treated with 1 uM Okadaic Acid for 60 minutes, whole cell lysate (Alkaline phosphatase treated membrane) at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 50 kDa

false

Exposure time: 15s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Amongst human GGT homologous proteins, this antibody reacts with GGT1 and GGT3 but not GGT2.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

In Western blot, Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204) staining at 1/5000 dilution.

All lanes:

Western blot - Anti-GGT1/GGT + GGT3 antibody [EPR28715-82] (<a href='/products/primary-antibodies/ggt1-ggt-ggt3-antibody-epr28715-82-ab316768'>ab316768</a>) at 1/1000 dilution

Lane 1:

293T (human embryonic kidney epithelial cell) cells transfected with an empty vector containing a myc-His-tag®, whole cell lysate 7 at 7 µg with 5% NFDM/TBST

Lane 2:

293T cells transfected with a human GGT1 expression vector containing a myc-His-tag®, whole cell lysate at 7 µg with 5% NFDM/TBST

Lane 3:

293T cells transfected with a human GGT2 expression vector containing a myc-His-tag®, whole cell lysate at 7 µg with 5% NFDM/TBST

Lane 4:

293T cells transfected with a human GGT3 expression vector containing a myc-His-tag®, whole cell lysate at 7 µg with 5% NFDM/TBST

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 60-75 kDa,36 kDa,60 kDa,75 kDa

false

Exposure time: 37s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Blocking and diluting buffer and concentration : 5% NFDM/TBST. This blot was developed using a high sensitivity ECL substrate. In Western blot, Anti-ATG16L1 antibody [EPR15638] - N-terminal (ab187671) staining at 1/1000 dilution. Anti-GAPDH antibody (ab181602) loading control staining at 1/200000 dilution.Anti-His antibody (ab213204) staining at 1/5000 dilution. Exposure time : 3 minutes.

All lanes:

Western blot - Anti-ATG16L1 (phospho S278) antibody [EPR19016] - Rat IgG1 (Chimeric) (<a href='/products/primary-antibodies/atg16l1-phospho-s278-antibody-epr19016-rat-igg1-chimeric-ab309495'>ab309495</a>) at 1/1000 dilution

Lane 1:

293T (human embryonic kidney epithelial cell) transfected with an empty vector (vector control) containing a myc-His-tag whole cell lysate (untreated membrane) at 20 µg

Lane 2:

293T cells transfected with a human ATG16L1 expression vector containing a myc-His-tag whole cell lysate (untreated membrane) at 20 µg

Lane 3:

293T cells transfected with a human ATG16L1 (mutation S278A) expression vector containing a myc-His-tag whole cell lysate (untreated membrane) at 20 µg

Lane 4:

293T (human embryonic kidney epithelial cell) transfected with an empty vector (vector control) containing a myc-His-tag whole cell lysate (Alkaline phosphatase treated membrane) at 20 µg

Lane 5:

293T cells transfected with a human ATG16L1 expression vector containing a myc-His-tag whole cell lysate (Alkaline phosphatase treated membrane) at 20 µg

Lane 6:

293T cells transfected with a human ATG16L1 (mutation S278A) expression vector containing a myc-His-tag whole cell lysate (Alkaline phosphatase treated membrane) at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rat IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rat-igg-h-l-hrp-ab205720'>ab205720</a>) at 1/5000 dilution

Observed band size: 68 kDa

false

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

All lanes:

Western blot - Anti-LTBR antibody [EPR26097-53] (<a href='/products/primary-antibodies/ltbr-antibody-epr26097-53-ab309133'>ab309133</a>) at 1/1000 dilution

Lane 1:

293T cells transfected with an empty vector containi a His-tag whole cell lysate

Lane 2:

293T cells transfected with a human LTBR expression vector containi a His-tag whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 75 kDa

false

Exposure time: 10s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Blocking and diluting buffer and concentration : 5% NFDM/TBST This antibody does not cross-react with human LYOX. In Western blot, anti-His antibody (ab213204) staining at 1/5000 dilution. Exposure time : 15 seconds

All lanes:

Western blot - Anti-LOXL1 antibody [EPR28297-2] (<a href='/products/primary-antibodies/loxl1-antibody-epr28297-2-ab313585'>ab313585</a>) at 1/1000 dilution

Lane 1:

His-tagged human LOXL1 recombinant protein at 20 ng

Lane 2:

293T cells transfected with a human LYOX vector containi a myc-His-tag® whole cell lysate at 800 ng

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 63 kDa

false

Exposure time: 15s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

All lanes:

Western blot - Anti-NFATC4 antibody [EPR24998-73] (<a href='/products/primary-antibodies/nfatc4-antibody-epr24998-73-ab307815'>ab307815</a>) at 1/1000 dilution

Lane 1:

Human NFATC4 fragment at 10 ng

Lane 2:

His-tagged human NFATC3 fragment at 10 ng

Lane 3:

His-tagged human NFATC1 fragment at 10 ng

Lane 4:

His-tagged human NFATC2 fragment at 10 ng

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 30 kDa

false

Exposure time: 7.75s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Blocking and diluting buffer and concentration : 5% NFDM/TBST. In Western blot, anti-His antibody (ab213204) staining at 1/5000 dilution. Exposure time : 8 seconds.

All lanes:

Western blot - Anti-Tau (MBD region) antibody [EPR25205-233] (<a href='/products/primary-antibodies/tau-mbd-region-antibody-epr25205-233-ab308439'>ab308439</a>) at 1/1000 dilution

Lane 1:

HEK-293 transfected with Tau 0N3R (WT) expression vector containing a myc-His-tag®, whole cell lysate at 20 µg

Lane 2:

HEK-293 transfected with Tau 1N3R (WT) expression vector containing a myc-His-tag®, whole cell lysate at 20 µg

Lane 3:

HEK-293 transfected with Tau 2N3R (WT) expression vector containing a myc-His-tag®, whole cell lysate at 20 µg

Lane 4:

HEK-293 transfected with Tau 0N4R (WT) expression vector containing a myc-His-tag®, whole cell lysate at 20 µg

Lane 5:

HEK-293 transfected with Tau 1N4R (WT) expression vector containing a myc-His-tag®, whole cell lysate at 20 µg

Lane 6:

HEK-293 transfected with Tau 2N4R (WT) expression vector containing a myc-His-tag®, whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 78 kDa

Observed band size: 10-70 kDa

false

Exposure time: 8s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

This antibody does not cross-react with human P2RX3 or P2RX5.

In Western blot, Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204) staining at 1/5000 dilution.

All lanes:

Western blot - Anti-P2X4 antibody [EPR29153-16] (<a href='/products/primary-antibodies/p2x4-antibody-epr29153-16-ab324165'>ab324165</a>) at 1/1000 dilution

Lane 1:

P2RX4 knockout HEK-293 transfected with a human P2RX4 expression vector containing a His-tag

Lane 2:

P2RX4 knockout HEK-293 transfected with a human P2RX3 expression vector containing a His-tag

Lane 3:

P2RX4 knockout HEK-293 transfected with a human P2RX5 expression vector containing a His-tag

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 55 kDa

false

Exposure time: 8s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

All lanes:

Western blot - Anti-ALDH1A3 antibody [EPR27504-83] (<a href='/products/primary-antibodies/aldh1a3-antibody-epr27504-83-ab308526'>ab308526</a>) at 1/1000 dilution

Lane 1:

His-tagged human ALDH1A3 recombinant protein at 10 ng

Lane 2:

HEK-293 transfected with a human ALDH1A1 (WT) expression vector containi a myc-His-tag®, whole cell lysate

Lane 3:

HEK-293 transfected with a human ALDH1A2 (WT) expression vector containi a myc-His-tag®, whole cell lysate

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 50 kDa

false

Exposure time: 10s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

This antibody can recognize human SHANK1, SHANK2 and SHANK3. .

In Western blot, Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204) staining at 1/5000 dilution.

All lanes:

Western blot - Anti-SHANK1 + SHANK2 + SHANK3 antibody [EPR26549-87] (<a href='/products/primary-antibodies/shank1-shank2-shank3-antibody-epr26549-87-ab317608'>ab317608</a>) at 1/1000 dilution

Lane 1:

His-tagged human SHANK2 recombinant fragment at 10 ng with NFDM/TBST

Lane 2:

His-tagged human SHANK1 recombinant fragment at 10 ng with NFDM/TBST

Lane 3:

His-tagged human SHANK3 recombinant fragment at 10 ng with NFDM/TBST

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 26 kDa

false

Exposure time: 125s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Blocking and diluting buffer and concentration : 5% NFDM/TBST This antibody recognizes human PDGFR (D842V) but not human wild-type PDGFRA. In western blot, anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution and anti-PDGFRA antibody (ab203491) staining at 1/1000 dilution. A-172 cells are negative for wild-type PDGFRA (PMID : 8425771).

All lanes:

Western blot - Anti-PDGFR alpha (mutated D842V) antibody [EPR26304-280] (<a href='/products/primary-antibodies/pdgfr-alpha-mutated-d842v-antibody-epr26304-280-ab313771'>ab313771</a>) at 1/1000 dilution

Lane 1:

293T cells transfected with an empty vector containing a His-tag, whole cell lysate at 20 µg

Lane 2:

293T cells transfected with a human wild-type PDGFRA expression vector containing a His-tag, whole cell lysate at 2 µg

Lane 3:

293T cells transfected with a human PDGFRA (D842V) expression vector containing a His-tag, whole cell lysate at 2 µg

Lane 4:

293T cells transfected with a human PDGFRA (D842V) expression vector containing a His-tag, whole cell lysate at 0.4 µg

Lane 5:

MG-63 (human osteosarcoma fibroblast) whole cell lysate at 20 µg

Lane 6:

A-204 (human muscle rhabdomyosarcoma cell) whole cell lysate at 20 µg

Lane 7:

A-172 (human brain glioblastoma ) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 160 kDa

false

Exposure time: 180s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Blocking and diluting buffer and concentration : 5% NFDM/TBST This antibody does not cross-react with human SCN2A, SCN7A, SCN8A, SCN9A, SCN10A, SCN11A, SCN1A, SCN4A, SCN5A. In Western blot, anti-His antibody (ab213204) staining at 1/5000 dilution. Exposure time : 3 seconds

All lanes:

Western blot - Anti-SCN3A antibody [EPR25135-66] (<a href='/products/primary-antibodies/scn3a-antibody-epr25135-66-ab309473'>ab309473</a>) at 1/1000 dilution

Lane 1:

293T cells transfected with an empty vector containing a his tag whole cell lysate at 20 µg

Lanes 2, 9 and 10:

293T cells transfected with a Human SCN3A expression vector containing a His-tag whole cell lysate at 20 µg

Lane 3:

293T cells transfected with a Human SCN2A expression vector containing a His-tag whole cell lysate at 20 µg

Lane 4:

293T cells transfected with a Human SCN7A expression vector containing a His-tag whole cell lysate at 20 µg

Lane 5:

293T cells transfected with a Human SCN8A expression vector containing a His-tag whole cell lysate at 20 µg

Lane 6:

293T cells transfected with a Human SCN9A expression vector containing a His-tag whole cell lysate at 20 µg

Lane 7:

293T cells transfected with a Human SCN10A expression vector containing a His-tag whole cell lysate at 20 µg

Lane 8:

293T cells transfected with a Human SCN11A expression vector containing a His-tag whole cell lysate at 20 µg

Lane 11:

293T cells transfected with a Human SCN4A fragment expression vector containing a His-tag whole cell lysate at 20 µg

Lane 12:

293T cells transfected with a Human SCN5A fragment expression vector containing a His-tag whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 320 kDa,260 kDa

false

Exposure time: 3s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

All lanes:

Western blot - Anti-SLC7A5/LAT1 antibody [EPR26260-66] (<a href='/products/primary-antibodies/slc7a5-lat1-antibody-epr26260-66-ab305251'>ab305251</a>) at 1/1000 dilution

Lanes 1 and 3:

293T cells transfected with an empty vector containing a His tag whole cell lysate at 20 µg

Lanes 2 and 4:

293T cells transfected with a Human SLC7A5 expression vector containing a His-tag whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 55 kDa

Observed band size: 37 kDa

false

Exposure time: 1s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Blocking and diluting buffer and concentration : 5% NFDM/TBST. This antibody cross-reacts with overexpressed human USP31 (Q70CQ4) by WB In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution. In Western blot, Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204) staining at 1/5000 dilution.

All lanes:

Western blot - Anti-USP31 + USP43 antibody [EPR26029-42] (<a href='/products/primary-antibodies/usp31-usp43-antibody-epr26029-42-ab320632'>ab320632</a>) at 1/1000 dilution

Lane 1:

293T (human embryonic kidney epithelial cell) transfected with an empty vector containing a myc-his tag whole cell lysate at 2 µg

Lane 2:

293T cells transfected with a human USP43 expression vector containing a myc-his tag whole cell lysate at 2 µg

Lane 3:

293T cells transfected with a human USP1 expression vector containing a myc-his tag whole cell lysate at 2 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 123 kDa,36 kDa,15 kDa

false

Exposure time: 10s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Blocking and diluting buffer and concentration : 5% NFDM/TBST. This antibody does not cross-react with human GATAD2A. In Western blot, anti-GATAD2A antibody (ab188472) staining at 1/1000 dilution, anti-His antibody (ab213204) staining at 1/5000 dilution. Exposure time : 37 seconds

All lanes:

Western blot - Anti-GATAD2B antibody [EPR27329-3] (<a href='/products/primary-antibodies/gatad2b-antibody-epr27329-3-ab308631'>ab308631</a>) at 1/1000 dilution

Lane 1:

His-tagged human GATAD2A recombinant protein at 20 µg

Lane 2:

His-tagged human GATAD2B recombinant protein at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 65 kDa

Observed band size: 72 kDa

false

Exposure time: 37s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Blocking and diluting buffer and concentration : 5% NFDM/TBST. This antibody cross-reacts with overexpressed human SFTPA1 and SFTPA2. In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution. In Western blot, Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204) staining at 1/5000 dilution.

All lanes:

Western blot - Anti-SFTPA1 + SFTPA2 antibody [EPR29098-6] (<a href='/products/primary-antibodies/sftpa1-sftpa2-antibody-epr29098-6-ab320648'>ab320648</a>) at 1/1000 dilution

Lane 1:

293T (human embryonic kidney epithelial cell) cells transfected with an empty vector containing a myc-His-tag® whole cell lysate at 5 µg

Lane 2:

293T cells transfected with a human SFTPA1 expression vector containing a myc-His-tag® whole cell lysate at 5 µg

Lane 3:

293T cells transfected with a human SFTPA2 expression vector containing a myc-His-tag® whole cell lysate at 5 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 35 kDa,36 kDa

false

Exposure time: 59s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Dot blot analysis of ADX using ab321899 at 1000 (0.488 ug/ml) followed by a Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (ab97051) at 1 : 100,000 dilution.

Lane1 : His-tagged human ADX recombinant protein

Exposure time : 180 seconds.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

In Dot Blot, Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204) staining at 1/5000 dilution.

All lanes:

Western blot - Anti-ADX antibody [EPR29804-54] (<a href='/products/primary-antibodies/adx-antibody-epr29804-54-ab321899'>ab321899</a>) at 1/1000 dilution

All lanes:

His-tagged human ADX recombinant protein

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

false

Exposure time: 180s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

This antibody does not cross-react with human ASIC1 and ASIC3.

Samples are non-boiled as boiling may cause protein aggregation.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

In Western blot, Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204) staining at 1/5000 dilution.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

All lanes:

Western blot - Anti-ASIC2 antibody [EPR25412-63] (<a href='/products/primary-antibodies/asic2-antibody-epr25412-63-ab315378'>ab315378</a>) at 1/1000 dilution

Lane 1:

293T (human embryonic kidney epithelial cell) cells transfected with an empty vector containing a myc-His-tag®, whole cell lysate at 10 µg

Lane 2:

293T cells transfected with a human ASIC1 expression vector containing a myc-His-tag®, whole cell lysate at 10 µg

Lane 3:

293T cells transfected with a human ASIC2 expression vector containing a myc-His-tag®, whole cell lysate at 10 µg

Lane 4:

293T cells transfected with a human ASIC3 expression vector containing a myc-His-tag®, whole cell lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 70 kDa,36 kDa

false

Exposure time: 15s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

All lanes:

Western blot - Anti-xCT antibody [EPR27115-64] (<a href='/products/primary-antibodies/xct-antibody-epr27115-64-ab307601'>ab307601</a>) at 1/1000 dilution

Lanes 1 and 4:

293T cells transfected with an empty vector containing a His tag whole cell lysate at 20 µg

Lanes 2 and 5:

293T cells transfected with a Human SLC7A5 expression vector containing a His-tag whole cell lysate at 20 µg

Lanes 3 and 6:

293T cells transfected with a Human xCT expression vector containing a His-tag whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 55 kDa

Observed band size: 37 kDa

false

Exposure time: 7s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Blocking/Dilution buffer : 5% NFDM/TBST.

This blot was developed using a high sensitivity ECL substrate. The high-sensitivity ECL substrate used allows for the detection of proteins in the mid-femtogram range.

This antibody weakly detects RED1 when high levels of recombinant protein of RED1 is over-loaded in Western Blot. Please apply the antibody with an optimized dilution.

In Western blot, anti-His antibody (ab213204) staining at 1/5000 dilution.

In Western blot, anti-GAPDH antibody (ab181602) loading control staining at 1/200000 dilution.

All lanes:

Western blot - Anti-RED1 + RED2 antibody [EPR26577-102] (<a href='/products/primary-antibodies/red1-red2-antibody-epr26577-102-ab307893'>ab307893</a>) at 1/1000 dilution

Lane 1:

293T cells transfected with an empty vector containing a his tag whole cell lysate at 20 µg

Lane 2:

293T cells transfected with a human RED2 expression vector containing a his tag whole cell lysate at 20 µg

Lane 3:

293T cells transfected with a human RED1 expression vector containing a his tag whole cell lysate at 4 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

true

Exposure time: 59s

• WB

Lab

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Blocking buffer and dilution concentration : 5% NFDM/TBST.

Lanes 1 - 4:

Western blot - Anti-TrkA (phospho Y674)+TrkB (phospho Y706)+TrkC (phospho Y709) antibody [EPR22298-67] (<a href='/products/primary-antibodies/trka-phospho-y674trkb-phospho-y706trkc-phospho-y709-antibody-epr22298-67-ab229908'>ab229908</a>) at 1/1000 dilution

Lanes 1 - 4:

Western blot - Anti-TrkA (pY674) + TrkB (pY706) + TrkC (pY709) antibody [EPR22298-67] - BSA and Azide free (<a href='/products/primary-antibodies/trka-phospho-y674trkb-phospho-y706trkc-phospho-y709-antibody-epr22298-67-bsa-and-azide-free-ab264070'>ab264070</a>) at 1/1000 dilution

Lane 1:

293T (human embryonic kidney epithelial cell) cells transfected with an empty vector containing a His-tag, whole cell lysate at 20 µg

Lane 2:

293T cells transfected with a human TrkA expression vector containing a His-tag, whole cell lysate at 20 µg

Lane 3:

293T cells transfected with a human TrkB expression vector containing a His-tag, whole cell lysate at 20 µg

Lane 4:

293T cells transfected with a human TrkC expression vector containing a His-tag, whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 140 kDa

false

Exposure time: 15s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Blocking and diluting buffer and concentration : 5% NFDM/TBST. This antibody does not cross-react with human BCAT1. In Western blot, anti-His antibody (ab213204) staining at 1/5000 dilution. In Western blot, anti-H3 antibody (ab176842) loading control staining at 1/100000 dilution. Exposure time : 1 second.

All lanes:

Western blot - Anti-BCAT2 antibody [EPR27488-72] (<a href='/products/primary-antibodies/bcat2-antibody-epr27488-72-ab307833'>ab307833</a>) at 1/1000 dilution

Lane 1:

293T (human embryonic kidney epithelial cell)cells transfected with an empty vector containing a his tag whole cell lysate at 20 µg

Lane 2:

293T cells transfected with a human BCAT2 expression vector containing a his tag whole cell lysate at 20 µg

Lane 3:

293T cells transfected with a human BCAT1 expression vector containing a his tag whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 44 kDa

Observed band size: 37 kDa

false

Exposure time: 1s

• WB

Lab

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Blocking and diluting buffer and concentration : 5% NFDM/TBST This antibody reacts with human MAdCAM1 but does not react with mouse MAdCAM1. In Western blot, anti-His antibody (ab213204) staining at 1/5000 dilution. Exposure time : 180 seconds

All lanes:

Western blot - Anti-MAdCAM1 antibody [EPR27555-87] (<a href='/products/primary-antibodies/madcam1-antibody-epr27555-87-ab307734'>ab307734</a>) at 1/1000 dilution

Lane 1:

His-tagged human MAdCAM1 recombinant fragment at 10 ng

Lane 2:

293T cells transfected with a mouse MAdCAM1 expression vector containing a his tag whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 32 kDa

false

Exposure time: 180s

• WB

Lab

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/1000000 dilution.

In Western blot, Anti-Myc tag antibody [9E10] - Loading Control (ab32) staining at 1/10000 dilution.

In Western blot, Anti-6X His tag® antibody [EPR20547] - Loading Control (ab213204) staining at 1/10000 dilution.

This antibody does not cross react with DR5 and DcR2.

All lanes:

Western blot - Anti-DR4 antibody [EPR28152-57] (<a href='/products/primary-antibodies/dr4-antibody-epr28152-57-ab312848'>ab312848</a>) at 1/1000 dilution

Lane 1:

293T (Human embryonic kidney epithelial cell) transfected with an empty vector (vector control), containing a myc-His- tag® whole cell lysate at 20 µg

Lane 2:

293T transfected with human DR4 expression vector containing a myc- His-tag®, whole cell lysate at 20 µg

Lane 3:

293T transfected with human DcR2 expression vector containing a myc- His-tag®, whole cell lysate at 48 µg

Lane 4:

Recombinant human DR5 fragment protein containing a His-tag®, whole cell lysate at 10 ng

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 48 kDa

false

Exposure time: 3s

• WB

Lab

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

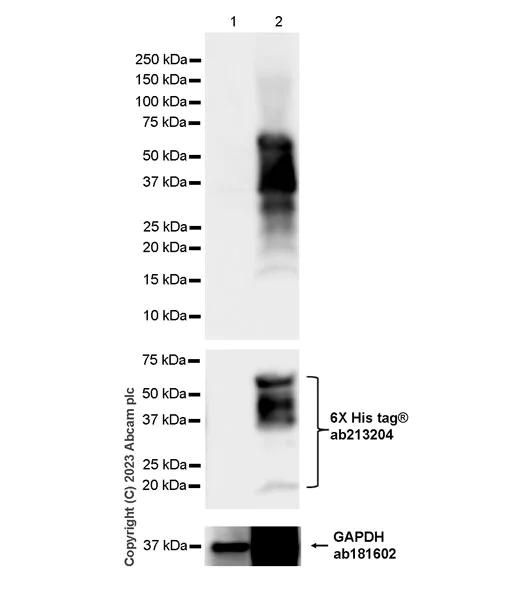

Lanes 1 - 2:

Western blot - Anti-Angiopoietin-like 4/ANGPTL4 antibody [EPR19873] (<a href='/products/primary-antibodies/angiopoietin-like-4-angptl4-antibody-epr19873-ab206420'>ab206420</a>) at 1/1000 dilution

Lanes 1 - 2:

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204) at 1/5000 dilution

Lane 1:

293T (human embryonic kidney epithelial cell) cells transfected with an empty vector containing a His tag whole cell lysate at 20 µg

Lane 2:

293T cells transfected with a human ANGPTL4 expression vector containing a His-tag whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 35 kDa,50 kDa

false

Exposure time: 3s

• WB

Lab

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Blocking buffer and concentration : 5% NFDM/TBST  Diluting buffer and concentration : 5% NFDM/TBST ab176323 does not cross activate with human LXR beta. ab213204 was used as loading control.

All lanes:

Western blot - Anti-LXR alpha antibody [EPR6508(N)] (<a href='/products/primary-antibodies/lxr-alpha-antibody-epr6508n-ab176323'>ab176323</a>) at 1/1000 dilution

Lane 1:

HEK 293 transfected with blank vectors, whole cell lysate at 20 µg

Lane 2:

HEK 293 transfected with His tagged human LXR alpha full length expression vectors, whole cell lysate at 20 µg

Lane 3:

HEK 293 transfected with His tagged human LXR beta full length expression vectors, whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 50 kDa

Observed band size: 50 kDa

false

Exposure time: 3s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

This antibody recognizes overexpressed human ATAD3A isoform 2 and isoform 1 (UniProt ID : Q9NVI7).

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

In Western blot, Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204) staining at 1/5000 dilution.

All lanes:

Western blot - Anti-ATAD3A antibody [EPR27484-26] (<a href='/products/primary-antibodies/atad3a-antibody-epr27484-26-ab317252'>ab317252</a>) at 1/1000 dilution

Lane 1:

293T (human embryonic kidney epithelial cell) transfected with an empty vector containing a myc-His-tag®, whole cell lysate at 20 µg with NFDM/TBST

Lane 2:

293T cells transfected with a Human ATAD3A isoform 2 expression vector containing a myc-His-tag®, whole cell lysate at 20 µg with NFDM/TBST

Lane 3:

293T cells transfected with a Human ATAD3A isoform 1 expression vector containing a myc-His-tag®, whole cell lysate at 20 µg with NFDM/TBST

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 66 kDa,76 kDa,36 kDa

false

Exposure time: 62s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

The antibody detects Human STAT4 (phospho Y693).

This blot was developed using a high sensitivity ECL substrate. The high-sensitivity ECL substrate used allows for the detection of proteins in the mid-femtogram range.

In Western blot, anti-STAT4 antibody (ab284408) staining at 1/1000 dilution.

In Western blot, anti-His antibody (ab213204) staining at 1/5000 dilution.

In Western blot, anti-GAPDH antibody (ab181602) loading control staining at 1/200000 dilution.

All lanes:

Western blot - Anti-STAT4 (phospho Y693) antibody [EPR27081-49] (<a href='/products/primary-antibodies/stat4-phospho-y693-antibody-epr27081-49-ab313630'>ab313630</a>) at 1/1000 dilution

Lane 1:

293T cells transfected with a Human STAT4 expression vector containing a His-tag were treated with treated with 100 mM Calyculin A for 30 minutes whole cell lysate at 20 µg

Lane 2:

293T cells transfected with a Human STAT4 (Y693F mutation) expression vector containing a His-tag were treated with 100 mM Calyculin A for 30 minutes whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 85 kDa

true

Exposure time: 180s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Blocking and diluting buffer and concentration : 5% NFDM/TBST The antibody specifically recognizes TDP43 singly phosphorylated at S410. In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution. In Western blot, Anti-TDP43 antibody [EPR18554-55] (ab190963) staining at 1/1000 dilution. In Western blot, Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204) staining at 1/5000 dilution.

All lanes:

Western blot - Anti-TDP43 (phospho S410) antibody [EPR24512-8] (<a href='/products/primary-antibodies/tdp43-phospho-s410-antibody-epr24512-8-ab314301'>ab314301</a>) at 1/1000 dilution

Lane 1:

293T (human embryonic kidney epithelial cell) cells transfected with an empty vector containing a His-tag, whole cell lysate at 20 µg

Lane 2:

293T cells transfected with a human wild-type TDP43 expression vector containing a His-tag, whole cell lysate at 20 µg

Lane 3:

293T cells transfected with a human wild-type TDP43 expression vector containing a His-tag were treated with 1 uM Okadaic Acid for 60 minutes, whole cell lysate at 20 µg

Lane 4:

293T cells transfected with a human TDP43 (S409A and S410A mutation) expression vector containing a His-tag were treated with 1 uM Okadaic Acid for 60 minutes, whole cell lysate at 20 µg

Lane 5:

293T cells transfected with a human TDP43 (S409A mutation) expression vector containing a His-tag were treated with 1 uM Okadaic Acid for 60 minutes, whole cell lysate at 20 µg

Lane 6:

293T cells transfected with a human TDP43 (S410A mutation) expression vector containing a His-tag were treated with 1 uM Okadaic Acid for 60 minutes, whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 50 kDa

false

Exposure time: 15s

• WB

Supplier Data

Western blot - Anti-6X His tag® antibody [EPR20547] - ChIP Grade (AB213204)

Blocking and diluting buffer and concentration : 5% NFDM/TBST. In Western blot, anti-His antibody (ab213204) staining at 1/5000 dilution. In Western blot, anti-GAPDH antibody (ab181602) loading control staining at 1/200000 dilution. Exposure time : 3 seconds

All lanes:

Western blot - Anti-HOXC10 antibody [EPR27318-83] (<a href='/products/primary-antibodies/hoxc10-antibody-epr27318-83-ab308518'>ab308518</a>) at 1/1000 dilution

Lane 1:

293T (human embryonic kidney epithelial cell)cells transfected with an empty vector containing a his tag whole cell lysate at 20 µg

Lane 2:

293T cells transfected with a human HOXC10 expression vector containing a his tag whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 38 kDa

Observed band size: 40 kDa

false

Exposure time: 3s
