AB197745

小鼠RAGE ELISA试剂盒

Mouse RAGE ELISA Kit

Be the first to review this product! Submit a review

|

(2 Publications)

Mouse RAGE ELISA Kit is a single-wash 90-min Simplestep used to quantify Mouse RAGE with a sensitivity of 6.6 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

查看别名

Rage, Ager, Advanced glycosylation end product-specific receptor, Receptor for advanced glycosylation end products

7 Images
ELISA - Mouse RAGE ELISA Kit (AB197745)
  • ELISA

Supplier Data

ELISA - Mouse RAGE ELISA Kit (AB197745)
Sandwich ELISA - Mouse RAGE ELISA Kit (AB197745)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse RAGE ELISA Kit (AB197745)

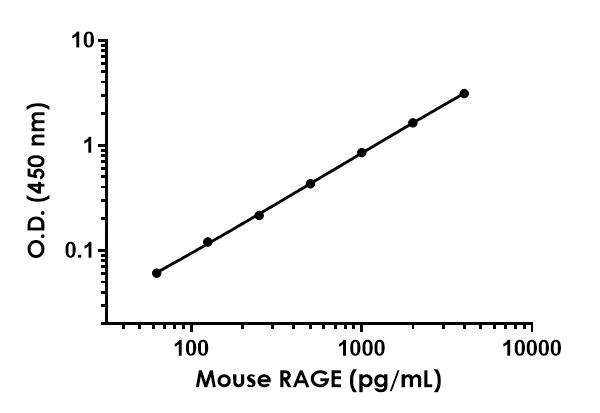

Example of mouse RAGE standard curve in Sample Diluent NS.

Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Mouse RAGE ELISA Kit (AB197745)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse RAGE ELISA Kit (AB197745)

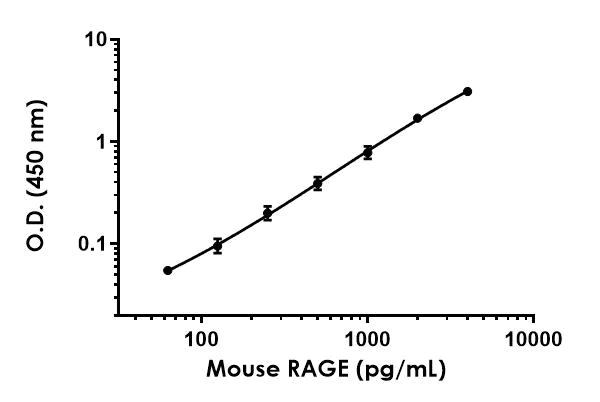

Example of mouse RAGE standard curve in 1X Cell Extraction Buffer PTR.

Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Mouse RAGE ELISA Kit (AB197745)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse RAGE ELISA Kit (AB197745)

RAGE concentrations in various Mouse tissue homogenate extract samples.

Tissue extracts at two different dilutions were analyzed with this kit. Interpolated concentrations of RAGE adjusted for sample dilution are graphed in ng of RAGE per mg of extract (mean +/- SD, n = 2).

Sandwich ELISA - Mouse RAGE ELISA Kit (AB197745)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse RAGE ELISA Kit (AB197745)

RAGE concentrations in various Mouse tissue cell culture supernatant samples.

Tissue cells were cultured for 5 days and after appropriate dilution the cell culture supernatant samples were analyzed with this kit. Interpolated concentrations of RAGE adjusted for sample dilution are graphed in ng of RAGE per mL of supernatant (mean +/- SD, n = 2).

Sandwich ELISA - Mouse RAGE ELISA Kit (AB197745)
  • sELISA

Unknown

Sandwich ELISA - Mouse RAGE ELISA Kit (AB197745)

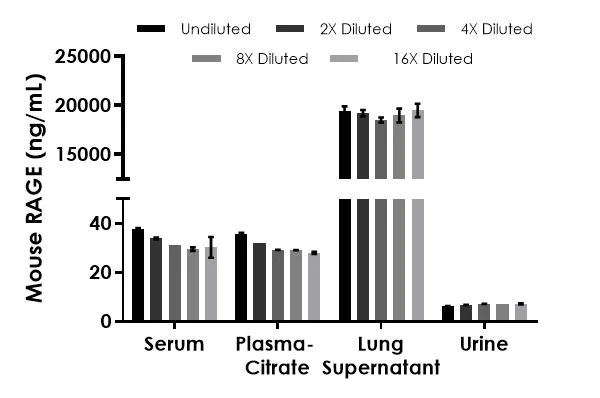

Interpolated concentrations of native RAGE in mouse serum, plasma (citrate), cell culture supernatant, and urine samples.

The concentrations of RAGE were measured in duplicates, interpolated from the RAGE standard curves and corrected for sample dilution. Undiluted samples are as follows : serum 5%, plasma (citrate) 5%, lung supernatant 1 : 4,000, and urine 10%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2).

Sandwich ELISA - Mouse RAGE ELISA Kit (AB197745)
  • sELISA

Unknown

Sandwich ELISA - Mouse RAGE ELISA Kit (AB197745)

Interpolated concentrations of native RAGE in mouse lung homogenate extract based on a 0.53 μg/mL extract load.

The concentrations of RAGE were measured in duplicate and interpolated from the RAGE standard curve and corrected for sample dilution. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2).

关键信息

检测方法

Colorimetric

样品类型

Urine, Cell culture extracts, Tissue Extracts, Citrate plasma, Cell culture supernatant, Serum

反应种属

Mouse

检测类型

Sandwich

灵敏度

= 6.6 pg/mL

范围

62.5 - 4000 pg/mL

检测时间

1h 30m

检测平台

Microplate (12 x 8 well strips)

反应性数据

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

产品详情

Mouse RAGE ELISA Kit ab197745 is a rapid single-wash 90-min Sandwich ELISA to measure Mouse RAGE in cell culture extracts, cell culture supernatant, citrate plasma, serum, tissue extracts, urine. This SimpleStep sensitivity is 6.6 pg/mL.

How the assay works

Mouse RAGE SimpleStep ELISA®employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details.

Assay Specificity

Our SimpleStep ELISA® kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

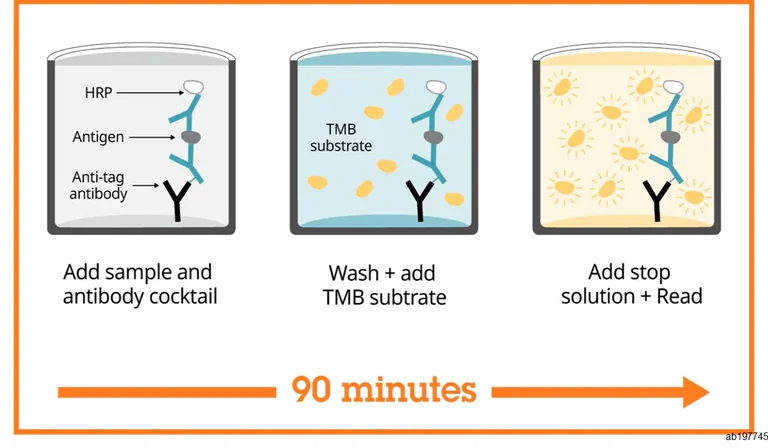

Mouse RAGE ELISA Kit ab197745 protocol summary

1. Mix: add samples/standards to the wells together with the capture and detector antibody cocktail. Incubate 1 hr at room temperature
2. Wash
3. Add TMB development solution - incubate for 10 min
4. Add Stop solution
5. Read the results on a plate reader at 450 nm

Design your own immunoassay

We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation:

- Anti-RAGE antibody [EPR16849-75] - BSA and Azide free (Capture) ab242980
- Anti-RAGE antibody [EPR16849-114] - BSA and Azide free (Detector) ab242980

RAGE mediates interactions of advanced glycosylation end products (AGE). These are non-enzymatically glycosylated proteins which accumulate in vascular tissue in aging and at an accelerated rate in diabetes. RAGE acts as a mediator of both acute and chronic vascular inflammation in conditions such as atherosclerosis and in particular as a complication of diabetes. AGE/RAGE signaling plays an important role in regulating the production/expression of TNF-alpha, oxidative stress, and endothelial dysfunction in type 2 diabetes. RAGE interaction with S100A12 on endothelium, mononuclear phagocytes, and lymphocytes triggers cellular activation, with generation of key pro-inflammatory mediators. RAGE may be a receptor for amyloid beta peptide. RAGE contributes to the translocation of amyloid-beta peptide (ABPP) across the cell membrane from the extracellular to the intracellular space in cortical neurons. ABPP-initiated RAGE signaling, especially stimulation of p38 mitogen-activated protein kinase (MAPK), has the capacity to drive a transport system delivering ABPP as a complex with RAGE to the intra-neuronal space. RAGE-dependent signaling in microglia contributes to neuroinflammation, amyloid accumulation, and impaired learning/memory in a mouse model of Alzheimer disease.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

精确度

[ { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "5.9" }, { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 5, "mean": null, "standardDeviation": null, "coefficientOfVariability": "3.3" } ]

回收率

[ { "sample": "Serum", "range": "83.1 - 97.9 %", "average": "= 91.7" }, { "sample": "Urine", "range": "88.3 - 93.3 %", "average": "= 90.4" }, { "sample": "Citrate plasma", "range": "93.6 - 116.9 %", "average": "= 100.8" }, { "sample": "Cell culture media", "range": "89.8 - 95.4 %", "average": "= 91.8" }, { "sample": "Goat Serum", "range": "88.9 - 105.2 %", "average": "= 98.7" } ]

规格

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab197745-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB197745-CMP06", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse RAGE Capture Antibody", "number":"AB197745-CMP02", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB197745-CMP12", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB197745-CMP04", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB197745-CMP13", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Mouse RAGE Lyophilized Recombinant Protein", "number":"AB197745-CMP10", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse RAGE Detector Antibody", "number":"AB197745-CMP03", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB197745-CMP05", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB197745-CMP11", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB197745-CMP07", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB197745-CMP09", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB197745-CMP08", "productcode":"" } ] } } }

性能和储存信息

运输条件
Blue Ice
推荐的短期储存条件
+4°C
推荐的长期储存条件
+4°C
储存信息
+4°C

补充信息

This supplementary information is collated from multiple sources and compiled automatically.

RAGE also known as Receptor for Advanced Glycation End-products is a multi-ligand cell surface receptor with a molecular weight of approximately 45 kDa. It belongs to the immunoglobulin superfamily consisting of three extracellular immunoglobulin-like domains a transmembrane domain and a cytoplasmic tail. RAGE is widely expressed in various tissues throughout the body with high expression levels in the lungs heart and cells of the nervous system. The receptor can interact with several ligands such as advanced glycation end-products (AGEs) amyloid beta and S100/calgranulin proteins facilitating signal transduction into the cells.
Biological function summary

RAGE functions in the immune and inflammatory response where it mediates cell signaling that leads to cellular activation and the release of pro-inflammatory cytokines. It acts as part of complexes with different proteins contributing to cellular processes such as proliferation and migration. RAGE also plays roles in the regulation of oxidative stress and apoptosis impacting cellular health and survival. Researchers employ tools like 'anti-RAGE' antibodies and 'RAGER ELISA' assays to measure and study RAGE expression levels and its interactions in various experimental setups.

Pathways

RAGE is significantly involved in the NF-kB pathway and the MAPK signaling cascade. Its activation can lead to the release of NF-kB a transcription factor that plays an essential role in immune and inflammatory responses. RAGE interacts with proteins such as p38 MAPK leading to a cascade of events that regulate inflammation and stress responses. The signaling pathways involving RAGE are important in maintaining cell homeostasis and responding to cellular stressors and tools like 'anti-RAGE' and 'mouse RAGE' antibodies serve to elucidate these complex pathways further.

RAGE has strong associations with chronic diseases like diabetes and Alzheimer's disease. In diabetes RAGE binds to AGEs contributing to inflammation and vascular complications where it often interacts with proteins like iNOS and VEGF. In Alzheimer's disease RAGE is implicated in the accumulation and toxicity of amyloid-beta peptides interacting with proteins such as APP and tau. Understanding RAGE's role in these diseases can aid in developing therapeutic strategies employing reagents such as 'phen RAGE' and 'anti-RAGE' for targeted treatment approaches.

产品实验方案

靶点信息

Cell surface pattern recognition receptor that senses endogenous stress signals with a broad ligand repertoire including advanced glycation end products, S100 proteins, high-mobility group box 1 protein/HMGB1, amyloid beta/APP oligomers, nucleic acids, histones, phospholipids and glycosaminoglycans (PubMed : 21270403, PubMed : 32670276). Advanced glycosylation end products are nonenzymatically glycosylated proteins which accumulate in vascular tissue in aging and at an accelerated rate in diabetes. These ligands accumulate at inflammatory sites during the pathogenesis of various diseases including diabetes, vascular complications, neurodegenerative disorders and cancers, and RAGE transduces their binding into pro-inflammatory responses. Upon ligand binding, uses TIRAP and MYD88 as adapters to transduce the signal ultimately leading to the induction of inflammatory cytokines IL6, IL8 and TNFalpha through activation of NF-kappa-B. Interaction with S100A12 on endothelium, mononuclear phagocytes, and lymphocytes triggers cellular activation, with generation of key pro-inflammatory mediators (By similarity). Interaction with S100B after myocardial infarction may play a role in myocyte apoptosis by activating ERK1/2 and p53/TP53 signaling (By similarity). Contributes to the translocation of amyloid-beta peptide (ABPP) across the cell membrane from the extracellular to the intracellular space in cortical neurons (PubMed : 19901339). ABPP-initiated RAGE signaling, especially stimulation of p38 mitogen-activated protein kinase (MAPK), has the capacity to drive a transport system delivering ABPP as a complex with RAGE to the intraneuronal space. Participates in endothelial albumin transcytosis together with HMGB1 through the RAGE/SRC/Caveolin-1 pathway, leading to endothelial hyperpermeability (By similarity). Mediates the loading of HMGB1 in extracellular vesicles (EVs) that shuttle HMGB1 to hepatocytes by transferrin-mediated endocytosis and subsequently promote hepatocyte pyroptosis by activating the NLRP3 inflammasome (By similarity). Binds to DNA and promotes extracellular hypomethylated DNA (CpG DNA) uptake by cells via the endosomal route to activate inflammatory responses (By similarity). Mediates phagocytosis by non-professional phagocytes (NPP) and this is enhanced by binding to ligands including RNA, DNA, HMGB1 and histones (By similarity). Promotes NPP-mediated phagocytosis of Saccharomyces cerevisiae spores by binding to RNA attached to the spore wall (PubMed : 35974093). Also promotes NPP-mediated phagocytosis of apoptotic cells (By similarity). Following DNA damage, recruited to DNA double-strand break sites where it colocalizes with the MRN repair complex via interaction with double-strand break repair protein MRE11 (PubMed : 28977635). Enhances the endonuclease activity of MRE11, promoting the end resection of damaged DNA (PubMed : 28977635). Promotes DNA damage repair in trophoblasts which enhances trophoblast invasion and contributes to placental development and maintenance (By similarity). Protects cells from DNA replication stress by localizing to damaged replication forks where it stabilizes the MCM2-7 complex and promotes faithful progression of the replication fork (By similarity).. Isoform 2. Is able to advanced glycosylation end product (AGE)-induce nuclear factor NF-kappa-B activation.. Isoform 10. Down-regulates receptor for advanced glycosylation end products (RAGE)-ligand induced signaling through various MAPK pathways including ERK1/2, p38 and SAPK/JNK. Significantly affects tumor cell properties through decreasing cell migration, invasion, adhesion and proliferation, and increasing cellular apoptosis. Exhibits drastic inhibition on tumorigenesis in vitro.
See full target information Ager

文献 (2)

Recent publications for all applications. Explore the full list and refine your search

Frontiers in immunology 15:1466802 PubMed39840066

2025

Restoring natural killer cell activity in lung injury with 1,25-hydroxy vitamin D: a promising therapeutic approach.

Applications

Unspecified application

Species

Unspecified reactive species

Johnny Amer,Ahmad Salhab,Mohammad Abuawad

Asian biomedicine : research, reviews and news 18:224-235 PubMed39483714

2024

Preventive effects of coixol, an active compound of adlay seed, in NGF-differentiated PC12 cells against beta-amyloid-induced neurotoxicity.

Applications

Unspecified application

Species

Unspecified reactive species

Jan-Yow Chen,Chien-Yu Li,Mei-Chin Mong,Mei-Chin Yin
