AB221829

mCherry ELISA试剂盒

mCherry ELISA Kit

Be the first to review this product! Submit a review

|

(2 Publications)

mCherry ELISA Kit is a single-wash 90-min SimpleStep Sandwich ELISA used to quantify mCherry with a sensitivity of 0.47 pg/mL. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric assay - 450 nm readout, works on any plate reader
- Validated in cell culture extracts, cell culture media and cell culture supernatant
- Need to design your own assay: we also offer the conjugation-ready antibody pair
8 Images
ELISA - mCherry ELISA Kit (AB221829)
  • ELISA

Supplier Data

ELISA - mCherry ELISA Kit (AB221829)
Sandwich ELISA - mCherry ELISA Kit (AB221829)
  • sELISA

Supplier Data

Sandwich ELISA - mCherry ELISA Kit (AB221829)

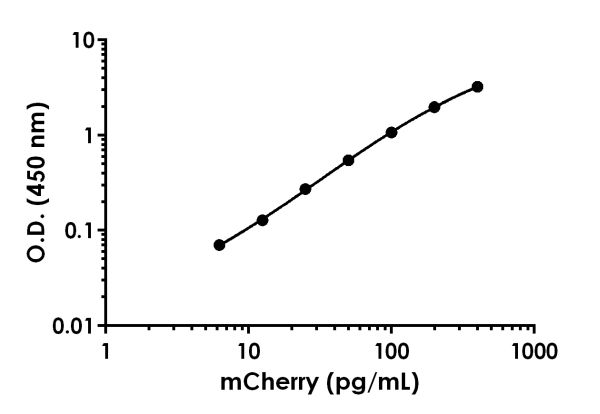

Example of mCherry standard curve in Sample Diluent NS.

Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - mCherry ELISA Kit (AB221829)
  • sELISA

Supplier Data

Sandwich ELISA - mCherry ELISA Kit (AB221829)

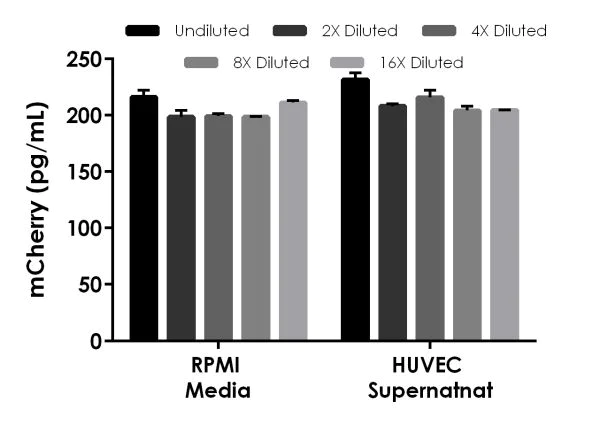

Interpolated concentrations of spiked mCherry in cell culture supernatant samples.

The concentrations of mCherry were measured in duplicates, interpolated from the mCherry standard curves and corrected for sample dilution. Undiluted samples are as follows : RPMI culture media with 10% FBS (100%), and HUVEC supernatant (100%). The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean mCherry concentration was determined to be 204.81 pg/mL in spiked RPMI culture media with 10% FBS (100%) and 212.94 pg/mL in spiked HUVEC supernatant (100%). HUVEC cells were cultured in RPMI media with 10% FBS and supernatant collected.

Sandwich ELISA - mCherry ELISA Kit (AB221829)
  • sELISA

Supplier Data

Sandwich ELISA - mCherry ELISA Kit (AB221829)

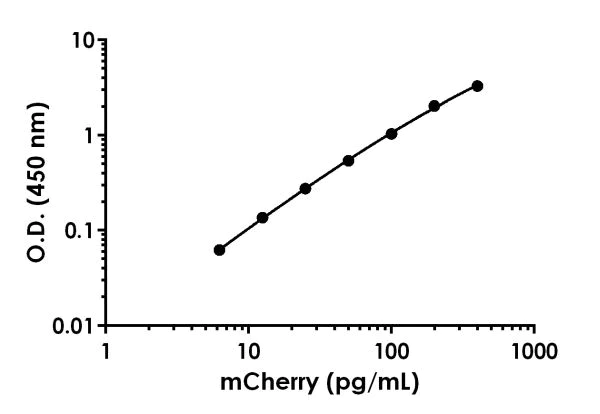

Example of mCherry standard curve in 1X Cell Extraction Buffer PTR.

Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - mCherry ELISA Kit (AB221829)
  • sELISA

Supplier Data

Sandwich ELISA - mCherry ELISA Kit (AB221829)

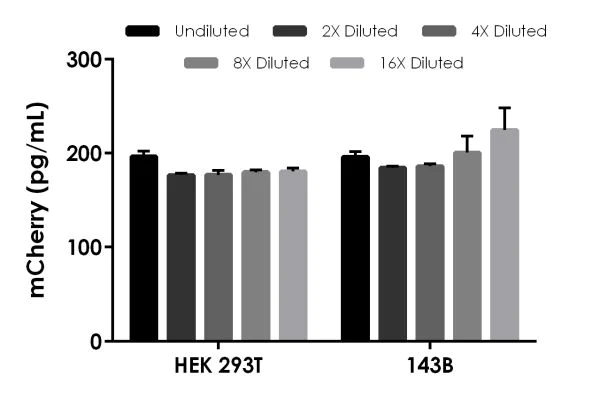

Interpolated concentrations of spiked mCherry in HEK 293T and 143B (wild-type) cell extract samples based on a 200 μg/mL extract load.

The concentrations of mCherry were measured in duplicate and interpolated from the mCherry standard curve and corrected for sample dilution. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean mCherry concentration was determined to be 182.08 pg/mL in spiked HEK 293T cell extract and 198.36 pg/mL in spiked 143B cell extract.

Sandwich ELISA - mCherry ELISA Kit (AB221829)
  • sELISA

Supplier Data

Sandwich ELISA - mCherry ELISA Kit (AB221829)

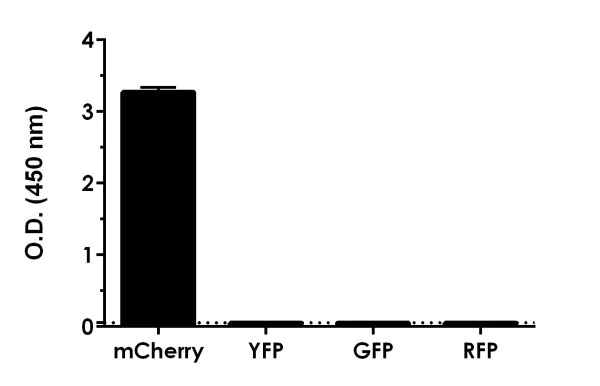

Raw O.D. values are shown for mCherry protein, YFP, GFP, and RFP.

All proteins were loaded at 400 pg/mL. The average background O.D. is represented by the dashed line. Signal from YFP, GFP, and RFP loaded at 400 pg/mL was equivalent to background.

Sandwich ELISA - mCherry ELISA Kit (AB221829)
  • sELISA

Lab

Sandwich ELISA - mCherry ELISA Kit (AB221829)

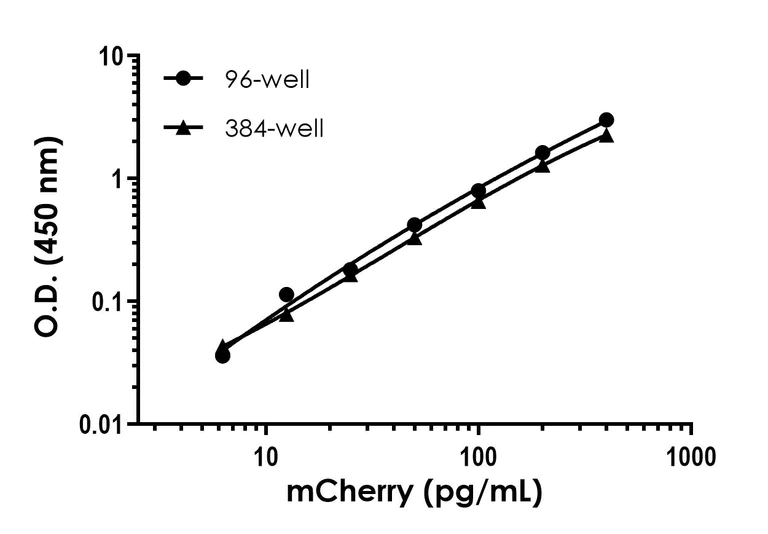

Example of mCherry standard curve in 96-well vs. 384-well plate. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - mCherry ELISA Kit (AB221829)
  • sELISA

Lab

Sandwich ELISA - mCherry ELISA Kit (AB221829)

Example of mCherry standard curve in 96-well vs. 384-well plate. Background-subtracted data values (mean +/- SD) are graphed.

关键信息

检测方法

Colorimetric

样品类型

Cell culture extracts, Cell culture media, Cell culture supernatant

检测类型

Sandwich (quantitative)

灵敏度

= 0.47 pg/mL

范围

6.25 - 400 pg/mL

检测时间

1h 30m

检测平台

Microplate (12 x 8 well strips)

反应性数据

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

产品详情

mCherry ELISA Kit ab221829 is a rapid single-wash 90-min ELISA kit to measure Human IL-1 beta in cell culture extracts, cell culture media and cell culture supernatant. This SimpleStep ELISA® sensitivity is 5.64 pg/mL.

How the assay works
Human IL-1 beta SimpleStep ELISA® employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details.

Assay Specificity
This kit is designed for the quantification of mCherry. The standard protein in this kit is full-length mCherry. Spiked protein experiments were used to validate cell culture supernatant and cell extract sample types. Serum, plasma (citrate), plasma (EDTA), plasma (heparin), urine, saliva, milk, CSF, and tissue extract samples have not been tested with this kit.
1,600 pg/mL and 400 pg/mL of recombinant YFP, GFP, and RFP were individually tested for cros reactivity. No cross reactivity was observed.
1,600 pg/mL of recombinant YFP, GFP, and RFP were individually tested for interference with 200 pg/mL of recombinant mCherry. No interference was observed, with an average recovery of 97% of mCherry protein.

mCherry ELISA Kit ab221829 protocol summary:
1. Mix: add samples/standards to the wells together with the capture and detector antibody cocktail. Incubate for 1 hr at room temperature
2. Wash
3. Add TMB development solution - incubate for 10 min
4. Add stop solution
5. Read the results on a plate reader at 450nm

How other researchers are using mCherry ELISA Kit ab221829
mCherry ELISA Kit ab221829 has been used to study transgenic lines as a model for lysosomal processing for drug screening (1), to study gene therapies for wet AMD using a recombinant virus (2).

References:
(1)Olivier Devuyst et al. 2020, PMID: 32061435,
(2)Daniel M Lipinski et al. 2018, PMID: 30082848

Save your precious samples
Our 384-well mCherry ELISA Kit only requires a maxmum of 12.5µL

Design your own immunoassay
We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation
- mCherry Antibody Pair - BSA and Azide free ab243999
- Anti-mCherry antibody [EPR20579-246] - BSA and Azide free (Capture) ab244649
- Anti-mCherry antibody [EPR20579-1] - BSA and Azide free (Detector) ab244910

Related and recommended products
mCherry ELISA Kit ab221829 is commonly used to study gene expression and protein interactions. mCherry is a fluroscent protein used for labeling and visualizing cellular processes.

Other ELISA kits for labeling and visualization include:
- GFP ELISA kit ab171581
- SEAP Reporter Gene Assay Kit (Luminescence) ab133077

Primary antibodies for labeling and visualization include:
- FITC Anti-GFP Antibody ab6662

This kit recognizes mCherry fluorescent protein from the organism Discosoma sp. mCherry is a general-purpose, red monomer, fluorescent protein with superior photostability. The mCherry fluorescent protein is a variant of the Discosoma red (DsRed) protein and is excited at wavelengths longer than 600 nm.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

精确度

[ { "reproducibilityType": "Inter", "sample": "Media", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "3.7" }, { "reproducibilityType": "Intra", "sample": "Media", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "2.9" } ]

回收率

[ { "sample": "Cell culture supernatant", "range": "110 - 113 %", "average": "= 111" }, { "sample": "Cell culture extracts", "range": "97 - 102 %", "average": "= 100" }, { "sample": "Cell culture media", "range": "111 - 112 %", "average": "= 112" } ]

规格

{ "values": { "1x384Tests": { "sellingSize": "1 x 384 Tests", "publicAssetCode":"ab221829-1x384Tests", "assetComponentDetails": [ { "size":"2 x 12 mL", "name":"Stop Solution", "number":"AB221829-CMP04" }, { "size":"1 x 50 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB221829-CMP07" }, { "size":"2 x 1 Vial", "name":"mCherry Lyophilized Recombinant Protein", "number":"AB221829-CMP01" }, { "size":"6 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB221829-CMP06" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB221829-CMP11" }, { "size":"1 x 600 µL", "name":"10X mCherry Capture Antibody", "number":"AB221829-CMP09" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BC", "number":"AB221829-CMP08" }, { "size":"2 x 12 mL", "name":"TMB Development Solution", "number":"AB221829-CMP05" }, { "size":"2 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB221829-CMP02" }, { "size":"1 x 600 µL", "name":"10X mCherry Detector Antibody", "number":"AB221829-CMP10" }, { "size":"1 x 1 Unit", "name":"384 well CaptSure™ microplates", "number":"AB221829-CMP13" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB221829-CMP12" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab221829-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB221829-CMP04", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB221829-CMP12", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB221829-CMP06", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB221829-CMP02", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB221829-CMP05", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB221829-CMP11", "productcode":"" }, { "size":"2 x 1 Vial", "name":"mCherry Lyophilized Recombinant Protein", "number":"AB221829-CMP01", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BC", "number":"AB221829-CMP08", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X mCherry Capture Antibody", "number":"AB221829-CMP09", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB221829-CMP07", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB221829-CMP03", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X mCherry Detector Antibody", "number":"AB221829-CMP10", "productcode":"" } ] } } }

性能和储存信息

运输条件
Blue Ice
推荐的短期储存条件
+4°C
推荐的长期储存条件
+4°C
储存信息
+4°C

产品实验方案

文献 (2)

Recent publications for all applications. Explore the full list and refine your search

Kidney international 97:1150-1163 PubMed32061435

2020

Transgenic zebrafish modeling low-molecular-weight proteinuria and lysosomal storage diseases.

Applications

Unspecified application

Species

Unspecified reactive species

Zhiyong Chen,Alessandro Luciani,José María Mateos,Gery Barmettler,Rachel H Giles,Stephan C F Neuhauss,Olivier Devuyst

Scientific reports 8:11763 PubMed30082848

2018

Development of an inducible anti-VEGF rAAV gene therapy strategy for the treatment of wet AMD.

Applications

Unspecified application

Species

Unspecified reactive species

Christopher A Reid,Emily R Nettesheim,Thomas B Connor,Daniel M Lipinski
