AB176660

ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA试剂盒

Name: ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA试剂盒 (ab176660)| Abcam中文官网
Brand: Abcam Limited
SKU: AB176660
Price: 7738 CNY
Availability: InStock
Rating: 5 (4 reviews)

ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA Kit

SimpleStep
了解详情

(4 Reviews)

(45 Publications)

ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA Kit is a single-wash 90-min Simplestep used to detect ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ERK. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Semi-quantitative Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Cited in over 40 citations

查看别名

ERK1, PRKM3, MAPK3, Mitogen-activated protein kinase 3, MAP kinase 3, MAPK 3, ERT2, Extracellular signal-regulated kinase 1, Insulin-stimulated MAP2 kinase, MAP kinase isoform p44, Microtubule-associated protein 2 kinase, p44-ERK1, ERK-1, p44-MAPK

8 Images

ELISA - ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA Kit (AB176660)

ELISA

Supplier Data

ELISA - ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA Kit (AB176660)

sELISA

Supplier Data

Sandwich ELISA - ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA Kit (AB176660)

Linearity of dilution in representative sample matrices. Cellular lysates were prepared at 3 concentrations in common media containing 1X Cell Extraction Buffer PTR. Data from duplicate measurements of ERK1/2 (pT202/Y204) are normalized and plotted.

sELISA

Supplier Data

Sandwich ELISA - ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA Kit (AB176660)

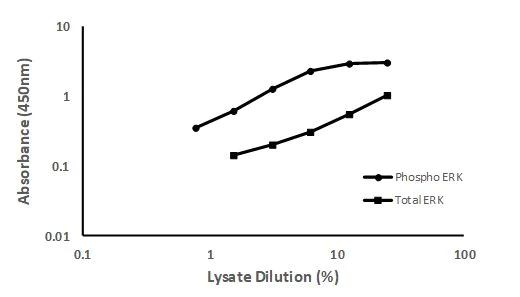

Example of a typical ERK1/2 (pT202/Y204) and ERK1/2 Total control lysate dilution series in 1X Cell Extraction Buffer PTR.

The ERK1/2 lysate dilution series was prepared as described. Raw data values are shown in the table.

Kit Control lysates are provided at a concentration that give consistent signal between different lots. Lysates are produced and formulated by signal intensity to be consistent to within 30% of the previous lot. As such, Control lysates are not provided with a protein concentration.

sELISA

Supplier Data

Sandwich ELISA - ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA Kit (AB176660)

Example of a typical ERK1/2 (pT202/Y204) and ERK1/2 Total recombinant protein standard curve.

Raw data values are shown in the table. Background-subtracted data values (mean +/- SD) are graphed.

sELISA

Supplier Data

Sandwich ELISA - ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA Kit (AB176660)

Typical recombinant protein standard curve.

Example of a typical ERK1/2 (pT202/Y204) and ERK1/2 (Total) recombinant protein standard curve. The proportion of total protein that is phosphorylated is unknown - data is indicative only. Background-subtracted data values (mean +/- SD) are graphed.

sELISA

Supplier Data

Sandwich ELISA - ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA Kit (AB176660)

Example of a typical ERK1/2 (pT202/Y204) and ERK1/2 Total control lysate dilution series in 1X Cell Extraction Buffer PTR.

The ERK1/2 lysate dilution series was prepared as described. Raw data values are shown in the table.

sELISA

Supplier Data

Sandwich ELISA - ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA Kit (AB176660)

HeLa cells were seeded at 40K cells/well in a 96-well tissue culture plate and incubated overnight. Cells were treated with AG1478 at the indicated concentrations for 2.5 hours and then treated with 1 ng/mL of EGF for 10 minutes prior to cell lysis. Data from triplicate measurements of ERK1/2 (pT202/Y204) are plotted and compared against ERK1/2 Total protein levels.

sELISA

Supplier Data

Sandwich ELISA - ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA Kit (AB176660)

Cell line analysis for ERK1/2 Total from preparations of 17,500 cells/well cell extracts. Data from triplicate measurements (mean +/- SD) are plotted.

关键信息

检测方法

Colorimetric

样品类型

Tissue Homogenate, Cell Lysate

反应种属

Mouse, Human

检测类型

Semi-quantitative

检测时间

1h 30m

检测平台

Microplate

style

left-column

反应性数据

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "ELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

style

left-column

产品详情

ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA Kit ab176660 is a semi-quantitative sandwich ELISA to measure ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total in cell lysates.

How the assay works:

The SimpleStep ELISA™ employs an affinity tag labeled capture antibody and a reporter conjugated detector antibody which immunocapture the sample analyte in solution. This entire complex (capture antibody/analyte/detector antibody) is in turn immobilized via immunoaffinity of an anti-tag antibody coating the well. To perform the assay, samples or standards are added to the wells, followed by the antibody mix. After incubation, the wells are washed to remove unbound material. TMB substrate is added and during incubation is catalyzed by HRP, generating blue coloration. This reaction is then stopped by addition of Stop Solution completing any color change from blue to yellow. Signal is generated proportionally to the amount of bound analyte and the intensity is measured at 450 nm. Optionally, instead of the endpoint reading, development of TMB can be recorded kinetically at 600 nm.

Assay Specificity

The ERK1/2 (pT202/Y204) assay detects endogenous levels of ERK1/2 (GenBank Accessions NP 002737.2 [ERK1], NP 620407 [ERK2]) in cellular lysates, only when phosphorylated at Thr202/Tyr204.
The ERK1/2 Total assay detects endogenous levels of ERK1/2 (GenBank Accessions NP 002737.2 [ERK1], NP 620407 [ERK2]) in cellular lysates, irrespective of phosphorylation status.

ERK1 (phospho T202 + Y204) + ERK2 (phospho T185 + Y187) + Total ELISA Kit ab176660 protocol summary

1. Add 50 µL control or sample to appropriate wells
2. Add 50 µL Antibody Cocktail to all wells. Incubate at room temperature for 1 hour
3. Aspirate and wash each well three times with 350 µL 1X Wash Buffer PT
4. Add 100 µL TMB Substrate to each well and incubate for 15 minutes.
5. Add 100 µL Stop Solution and read OD at 450 nm

Estimated sensitivity: Phospho-ERK (Thr202/Tyr204): 0.1 ng/mL (tested with recombinant protein), Total ERK1/2: 0.6 ng/mL (tested with recombinant protein)
Range: Phospho-ERK (Thr202/Tyr204): 0.2-20ng/mL, Total ERK1/2: 0.6-60 ng/mL

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

style

left-column

精确度

[ { "reproducibilityType": "Inter", "sample": "(pT202/Y204)", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "3.7" }, { "reproducibilityType": "Inter", "sample": "Overall", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "3.7" }, { "reproducibilityType": "Intra", "sample": "(pT202/Y204)", "replicates": 6, "mean": null, "standardDeviation": null, "coefficientOfVariability": "3" }, { "reproducibilityType": "Intra", "sample": "Overall", "replicates": 6, "mean": null, "standardDeviation": null, "coefficientOfVariability": "5" } ]

style

left-column

规格

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab176660-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"TMB Substrate", "number":"AB176660-CMP11", "productcode":"" }, { "size":"1 x 1.5 mL", "name":"ERK1/2 (Total) Capture Antibody", "number":"AB176660-CMP06", "productcode":"" }, { "size":"1 x 1.5 mL", "name":"ERK1/2 (Total) Detector Antibody", "number":"AB176660-CMP07", "productcode":"" }, { "size":"1 x 1.5 mL", "name":"ERK1/2 (pT202/Y204) Capture Antibody", "number":"AB176660-CMP04", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB176660-CMP09", "productcode":"" }, { "size":"1 x 15 mL", "name":"10X Wash Buffer PT", "number":"AB176660-CMP02", "productcode":"" }, { "size":"1 x 1.5 mL", "name":"ERK1/2 (pT202/Y204) Detector Antibody", "number":"AB176660-CMP05", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Lyophilized ERK1/2 Control Lysate", "number":"AB176660-CMP08", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution", "number":"AB176660-CMP03", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB176660-CMP10", "productcode":"" }, { "size":"1 x 12 mL", "name":"5X Cell Extraction Buffer PTR", "number":"AB176660-CMP12", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB176660-CMP01", "productcode":"" } ] } } }

style

left-column

性能和储存信息

运输条件

Blue Ice

储存信息

+4°C

style

left-column

补充信息

This supplementary information is collated from multiple sources and compiled automatically.

ERK1 and ERK2 also known as p44 and p42 MAPK respectively are important proteins in the MAP kinase signaling pathway. They are expressed in various tissues with significant presence in the brain lungs and skin. ERK1 has a molecular weight of approximately 44 kDa while ERK2 has a molecular weight of around 42 kDa. Both proteins become activated through phosphorylation which is essential for their function in cellular processes.

Biological function summary

ERK1 and ERK2 serve as key players in cellular growth differentiation and survival. They form part of a complex cascade where they transduce signals from the cell membrane to the nucleus after activation by phosphorylation. This phosphorylation enables them to modify various downstream targets involved in regulating gene expression and cellular response to external stimuli.

Pathways

ERK1 and ERK2 are critical components of the MAPK/ERK pathway and the Ras-Raf-MEK-ERK signaling cascade. These pathways regulate a multitude of cellular activities including proliferation and differentiation. In the MAPK/ERK pathway proteins like Ras and Raf serve as upstream activators of ERK1 and ERK2. Both ERK1 and ERK2 also interact with other signaling proteins such as MEK1/2 which directly phosphorylates and activates them.

Dysregulation of ERK1 and ERK2 is associated with various pathologies including cancer and neurodegenerative diseases. Abnormal activation of these proteins often leads to uncontrolled cell proliferation contributing to oncogenesis. For instance mutations in proteins like Ras which regulate ERK1 and ERK2 can result in continuous activation and lead to tumor formation. Furthermore altered ERK1 and ERK2 signaling is linked to neurodegeneration impacting neuronal survival and function.

style

left-column

产品实验方案

style

left-column

靶点信息

Serine/threonine kinase which acts as an essential component of the MAP kinase signal transduction pathway (PubMed : 34497368). MAPK1/ERK2 and MAPK3/ERK1 are the 2 MAPKs which play an important role in the MAPK/ERK cascade. They participate also in a signaling cascade initiated by activated KIT and KITLG/SCF. Depending on the cellular context, the MAPK/ERK cascade mediates diverse biological functions such as cell growth, adhesion, survival and differentiation through the regulation of transcription, translation, cytoskeletal rearrangements. The MAPK/ERK cascade also plays a role in initiation and regulation of meiosis, mitosis, and postmitotic functions in differentiated cells by phosphorylating a number of transcription factors. About 160 substrates have already been discovered for ERKs. Many of these substrates are localized in the nucleus, and seem to participate in the regulation of transcription upon stimulation. However, other substrates are found in the cytosol as well as in other cellular organelles, and those are responsible for processes such as translation, mitosis and apoptosis. Moreover, the MAPK/ERK cascade is also involved in the regulation of the endosomal dynamics, including lysosome processing and endosome cycling through the perinuclear recycling compartment (PNRC); as well as in the fragmentation of the Golgi apparatus during mitosis. The substrates include transcription factors (such as ATF2, BCL6, ELK1, ERF, FOS, HSF4 or SPZ1), cytoskeletal elements (such as CANX, CTTN, GJA1, MAP2, MAPT, PXN, SORBS3 or STMN1), regulators of apoptosis (such as BAD, BTG2, CASP9, DAPK1, IER3, MCL1 or PPARG), regulators of translation (such as EIF4EBP1) and a variety of other signaling-related molecules (like ARHGEF2, DEPTOR, FRS2 or GRB10) (PubMed : 35216969). Protein kinases (such as RAF1, RPS6KA1/RSK1, RPS6KA3/RSK2, RPS6KA2/RSK3, RPS6KA6/RSK4, SYK, MKNK1/MNK1, MKNK2/MNK2, RPS6KA5/MSK1, RPS6KA4/MSK2, MAPKAPK3 or MAPKAPK5) and phosphatases (such as DUSP1, DUSP4, DUSP6 or DUSP16) are other substrates which enable the propagation the MAPK/ERK signal to additional cytosolic and nuclear targets, thereby extending the specificity of the cascade.

See full target information MAPK3 phospho T202 + Y204

其他靶点

MAPK1 phospho T185 + Y187

style

left-column

文献 (45)

Recent publications for all applications. Explore the full list and refine your search

Scientific reports 15:5762 PubMed39962199

2025

Hypoglycemia and hyperinsulinemia induced by phenolic uremic toxins in CKD and DKD patients.

Applications

Unspecified application

Species

Unspecified reactive species

Yoshiyasu Tongu,Tomoko Kasahara,Yasutoshi Akiyama,Takehiro Suzuki,Hsin-Jung Ho,Yotaro Matsumoto,Ryota Kujirai,Koichi Kikuchi,Koji Nata,Makoto Kanzaki,Kenshin Suzuki,Shun Watanabe,Chiharu Kawabe,Yui Miyata,Shun Itai,Takafumi Toyohara,Chitose Suzuki,Tetsuhiro Tanaka,Jun Wada,Yoshihisa Tomioka,Takaaki Abe

Scientific reports 14:4921 PubMed38418632

2024

The role of leptin in regulation of the soluble amyloid precursor protein α (sAPPα) levels in lung cancer cell media.

Applications

Unspecified application

Species

Unspecified reactive species

Ben Haddad,Jeneen Khalil,Hind Al Khashali,Ravel Ray,Stuti Goel,Ban Darweesh,Kai-Ling Coleman,Caroline Wozniak,Robert Ranzenberger,Brooke Lopo,Jeffrey Guthrie,Deborah Heyl,Hedeel Guy Evans

Hepatology communications 8: PubMed38407207

2024

A novel model to study mechanisms of cholestasis in human cholangiocytes reveals a role for the SIPR2 pathway.

Applications

Unspecified application

Species

Unspecified reactive species

Diana Islam,Izza Israr,Mohamed A B Taleb,Aditya Rao,Robel Yosief,Rukhsar Sultana,Fotios Sampaziotis,Olivia C Tysoe,Michael Trauner,Saul J Karpen,Anand Ghanekar,Binita M Kamath

Cell communication and signaling : CCS 21:284 PubMed37828510

2023

AXL receptor tyrosine kinase modulates gonadotropin-releasing hormone receptor signaling.

Applications

Unspecified application

Species

Unspecified reactive species

Pardis Mohammadzadeh,Mina Roueinfar,Gregory C Amberg

Biomedicines 11: PubMed37760996

2023

Regulation of Soluble E-Cadherin Signaling in Non-Small-Cell Lung Cancer Cells by Nicotine, BDNF, and β-Adrenergic Receptor Ligands.

Applications

Unspecified application

Species

Unspecified reactive species

Ravel Ray,Stuti Goel,Hind Al Khashali,Ban Darweesh,Ben Haddad,Caroline Wozniak,Robert Ranzenberger,Jeneen Khalil,Jeffrey Guthrie,Deborah Heyl,Hedeel Guy Evans

International archives of allergy and immunology 184:1010-1021 PubMed37336194

2023

The ERBB2 Exonic Variant Pro1170Ala Modulates Mitogen-Activated Protein Kinase Signaling Cascades and Associates with Allergic Asthma.

Applications

Unspecified application

Species

Unspecified reactive species

Yang Yie Sio,Wei Liang Gan,Wing Shan Ng,Sri Anusha Matta,Yee-How Say,Keng Foo Teh,Yi Ru Wong,Smyrna Moti Rawanan Shah,Kavita Reginald,Fook Tim Chew

Cells 12: PubMed36672272

2023

Erk1/2-Dependent HNSCC Cell Susceptibility to Erastin-Induced Ferroptosis.

Applications

Unspecified application

Species

Unspecified reactive species

Dragana Savic,Teresa Bernadette Steinbichler,Julia Ingruber,Giulia Negro,Bertram Aschenbrenner,Herbert Riechelmann,Ute Ganswindt,Sergej Skvortsov,József Dudás,Ira-Ida Skvortsova

Mediators of inflammation 2022:1108569 PubMed36619207

2022

Prevents Ulcerative Colitis by Promoting M2 Macrophage Polarization through Blocking the TLR4/MAPK/NF-B Pathway.

Applications

Unspecified application

Species

Unspecified reactive species

Jun Sun,Ping Zhao,Xufeng Ding,Fang Li,Jie Jiang,Hua Huang,Lijiang Ji

International journal of molecular sciences 23: PubMed36142659

2022

Regulation of the Soluble Amyloid Precursor Protein α (sAPPα) Levels by Acetylcholinesterase and Brain-Derived Neurotrophic Factor in Lung Cancer Cell Media.

Applications

Unspecified application

Species

Unspecified reactive species

Hind Al Khashali,Ravel Ray,Kai-Ling Coleman,Sarah Atali,Ben Haddad,Jadziah Wareham,Jeffrey Guthrie,Deborah Heyl,Hedeel Guy Evans

Clinical proteomics 19:33 PubMed36002804

2022

Proteomics-based evaluation of the mechanism underlying vascular injury via DNA interstrand crosslinks, glutathione perturbation, mitogen-activated protein kinase, and Wnt and ErbB signaling pathways induced by crotonaldehyde.

Applications

Unspecified application

Species

Unspecified reactive species

Ming-Zhang Xie,Jun-Li Liu,Qing-Zu Gao,De-Ying Bo,Lei Wang,Xiao-Chun Zhou,Meng-Meng Zhao,Yu-Chao Zhang,Yu-Jing Zhang,Guo-An Zhao,Lu-Yang Jiao

View all publications
