FITC荧光偶联试剂盒 - Lightning-Link®

• ICC

PubMed

Immunocytochemistry - FITC Conjugation Kit - Lightning-Link® (AB102884)

Immunocytochemistry - FITC Conjugation Kit- Lightning-Link.

Lim, Tony KY, et al used FITC Conjugation Kit - Lightning-Link^® (ab102884) as part of examining traumatic nerve injury. They used the kit to conjugate FITC to mouse anti-neurofilament 160/200 for use in immunohistochemistry.B, Contralateral nerves were stained for hypoxyprobe-1, DAPI, and neurofilament 160/200 (NF-M/L, axons). E, Ipsilateral nerves were subjected to the same staining. The area in proximity to the injury site is shown. Hypoxia, as shown by hypoxyprobe-1 staining, is observed in a region close to the injury site, in which axons, macrophages, and Schwann cells are all found to be hypoxic. This hypoxic region, in which nerve fibers were ligated, is delineated by the white dotted line. Areas outside of the dotted regions containing nonligated nerve fibers still have more hypoxyprobe deposition than contralateral nerves.

Image from Lim, Tony KY, et al., J Neurosci., 35(8):3346-59, doi: 10.1523/JNEUROSCI.4040-14.2015. Reproduced under the Creative Commons license https://creativecommons.org/licenses/by/4.0/

• Schematic Diagram

Supplier Data

Schematic Diagram - FITC Conjugation Kit - Lightning-Link® (AB102884)

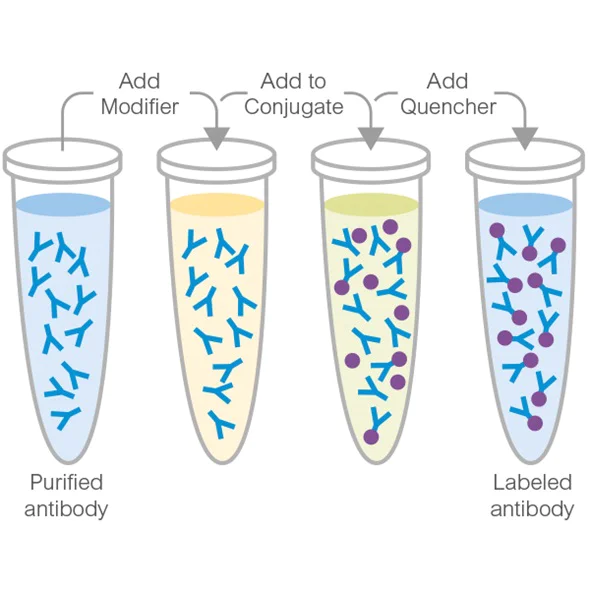

This illustration demonstrates a general procedure of how Lightning-Link® labeling technology enables the direct labeling of antibodies or proteins.

Simply pipette your antibody or biomolecule of choice into the vial of a lyophilized mixture containing the label of interest and incubate for around 3 hours. Please see the ab102884 protocol booklet for more details.

Learn more about our Lightning-Link® conjugation kits here

• IHC-FoFr

PubMed

Immunohistochemistry (PFA perfusion fixed frozen sections) - FITC Conjugation Kit - Lightning-Link® (AB102884)

Wills, Jonathan, et al used FITC Conjugation Kit - Lightning-Link^® (ab102884) as part of examining the aggregation and co-localization of α-Syn with pGSK-3β and p-Tau in the striatum of A53T α-Syn mutant mice (A53T Tg) and wild-type mice (WT). They used the kit to conjugate FITC to Anti-p-GSK-3β (pY216) antibody for use in immunohistochemistry (PFA perfusion fixed frozen sections).
Right panels constitute merged image of left panels. Sections of striatum of A53T Tg and age-matched WT mice were stained with anti-α-Syn antibody conjugated to Texas Red (red) and anti-p-GSK3β conjugated to FITC (green). Nuclei were stained with DAPI (blue).

Image from Wills, Jonathan, et al., PLoS One, 6(3): e17953; doi: 10.1371/journal.pone.0017953. Reproduced under the Creative Commons license https://creativecommons.org/licenses/by/4.0/

• Flow Cyt

PubMed

Flow Cytometry - FITC Conjugation Kit - Lightning-Link® (AB102884)

Flow Cytometry - FITC Conjugation Kit- Lightning-Link.

Weagel, Evita G., et al used FITC Conjugation Kit - Lightning-Link^® (ab102884) as part of examining thymidine kinase 1 in lung, breast, and colorectal malignancies. They used the kit to conjugate FITC to three custom and a commercial anti-human thymidine Kinase 1 (TK1) antibodies for use in flow cytometry.

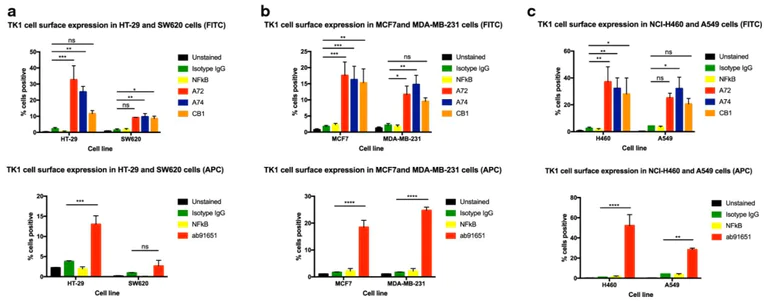

Membrane TK1 expression in of colon, breast, and lung cancer cell lines. Flow cytometry analysis of cell lines treated with anti-TK1 antibodies. a Quantification of TK1 expression on the cell membrane of HT-29 and SW620 cell lines stained with FITC or APC-conjugated anti-TK1 antibodies. b Quantification of TK1 expression on the cell membrane of MCF7 and MDA-MB-231 cell lines. The top bar graph shows MCF7 and MDA-MB-231 cell lines stained with FITC or APC-conjugated anti-TK1 antibodies. c Quantification of TK1 expression on the cell membrane of NCI-H460 and A549 cell lines stained with FITC or APC-conjugated anti-TK1 antibodies. Statistical analysis was performed by comparing the mouse isotype control fluorescent levels to those of A72, A74, CB1, or ab91651. *P ≤ 0.05; **P ≤ 0.005; ***P ≤ 0.001; ns = P > 0.05

Image from Weagel, Evita G., et al., Cancer cell international 18.1 (2018): 1-14. Reproduced under the Creative Commons license https://creativecommons.org/licenses/by/4.0/
