AB197480

Porcine Cytokine抗体阵列B (10 Targets) - Quantitative

Porcine Cytokine Antibody Array B (10 Targets) - Quantitative

Be the first to review this product! Submit a review

|

(1 Publication)

ab197480 can be used for quantitative measurement of 10 Porcine Cytokines.
2 Images
Multiplex Protein Detection - Porcine Cytokine Antibody Array B (10 Targets) - Quantitative (AB197480)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Porcine Cytokine Antibody Array B (10 Targets) - Quantitative (AB197480)

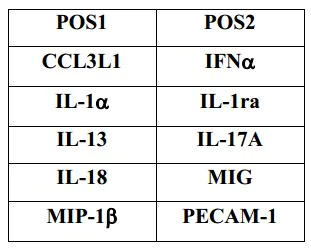

Array Map for Porcine Cytokine Antibody Array B (10 Targets) - Quantitative (ab197480)

Multiplex Protein Detection - Porcine Cytokine Antibody Array B (10 Targets) - Quantitative (AB197480)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Porcine Cytokine Antibody Array B (10 Targets) - Quantitative (AB197480)

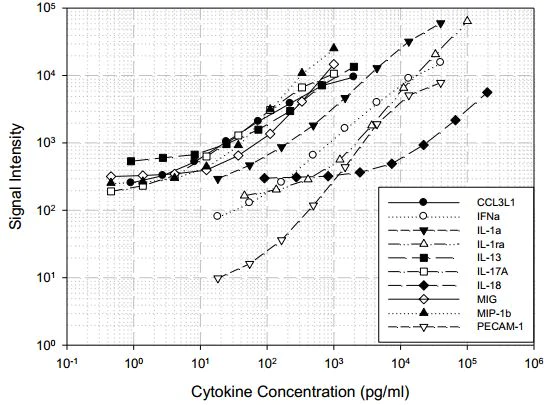

Standard Curve obtained with Porcine Cytokine Antibody Array B (10 Targets) - Quantitative (ab197480).

关键信息

检测类型

Quantitative

反应种属

Pig

靶标

C-C motif chemokine

target

检测方法

Fluorescent

检测平台

Multiplex

样品类型

Tissue Lysate, Plasma, Cell culture media, Serum, Other biological fluids, Cell Lysate

style
left-column

产品详情

ab197480 can be used for quantitative measurement of 10 Porcine Cytokines. Suitable for serum, plasma, cell culture media, other body fluids, cell and tissue lysates.

Targets names: CCL3L1, IFNα, IL-1α, IL-1ra, IL-13, IL-17A, IL-18, MIG, MIP-1β, PECAM-1

Quantitative antibody arrays can be used to quantitate up to 40 cytokines with as little as 50 µL of sample. Arrays are available for 400 human and 200 mouse proteins. Each glass slide is spotted with 16 identical antibody arrays and is provided with a 16 well gasket to allow separate samples to be applied to each array. Each antibody is spotted in quadruplicate in each array. For reproducible quantitation, eight of the arrays are used with a cocktail of protein standards to produce a standard curve. The same 8 standard curve arrays can be used across multiple slides, allowing measurement of 22 experimental samples with 2 slides, 36 with 3 slides etc. For high through-put, 4 slides can be nested into a tray matching a standard microplate, allowing automated processing with a liquid handling workstation. Array processing can be completed within one working day (see workflow diagram below) and arrays can be analyzed with a wide number of laser glass slide array / gene microarray scanners. If you don’t have a suitable scanner then we recommend our membrane antibody arrays, which can be analyzed with any WB chemiluminescent reader. "

style
left-column

规格

{ "values": { "8Test": { "sellingSize": "8 Test", "publicAssetCode":"ab197480-8Test", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Adhesive Film", "number":"AB197480-CMP09" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197480-CMP06" }, { "size":"1 x 25 µL", "name":"Porcine Cytokine Array B (10 T) Biotinylated Antibody Cocktail", "number":"AB197480-CMP03" }, { "size":"1 x 1 Slide", "name":"Porcine Cytokine Array B (10 T) Glass Slide", "number":"AB197480-CMP04" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197480-CMP01" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197480-CMP07" }, { "size":"1 x 1 Vial", "name":"Porcine Cytokine Array B (10 T) Lyophilized Cytokine Standard Mix", "number":"AB197480-CMP05" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197480-CMP02" }, { "size":"1 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197480-CMP08" } ] }, "50Test": { "sellingSize": "50 Test", "publicAssetCode":"ab197480-50Test", "assetComponentDetails": [ { "size":"4 x 1 Unit", "name":"Adhesive Film", "number":"AB197480-CMP09" }, { "size":"4 x 25 µL", "name":"Porcine Cytokine Array B (10 T) Biotinylated Antibody Cocktail", "number":"AB197480-CMP03" }, { "size":"2 x 1 Vial", "name":"Porcine Cytokine Array B (10 T) Lyophilized Cytokine Standard Mix", "number":"AB197480-CMP05" }, { "size":"4 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197480-CMP08" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197480-CMP07" }, { "size":"6 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197480-CMP06" }, { "size":"2 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197480-CMP02" }, { "size":"2 x 15 mL", "name":"Sample Diluent", "number":"AB197480-CMP01" }, { "size":"4 x 1 Slide", "name":"Porcine Cytokine Array B (10 T) Glass Slide", "number":"AB197480-CMP04" } ] }, "22Test": { "sellingSize": "22 Test", "publicAssetCode":"ab197480-22Test", "assetComponentDetails": [ { "size":"2 x 1 Unit", "name":"Adhesive Film", "number":"AB197480-CMP09", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Porcine Cytokine Array B (10 T) Lyophilized Cytokine Standard Mix", "number":"AB197480-CMP05", "productcode":"" }, { "size":"2 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197480-CMP08", "productcode":"" }, { "size":"2 x 1 Slide", "name":"Porcine Cytokine Array B (10 T) Glass Slide", "number":"AB197480-CMP04", "productcode":"" }, { "size":"3 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197480-CMP06", "productcode":"" }, { "size":"2 x 25 µL", "name":"Porcine Cytokine Array B (10 T) Biotinylated Antibody Cocktail", "number":"AB197480-CMP03", "productcode":"" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197480-CMP07", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197480-CMP02", "productcode":"" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197480-CMP01", "productcode":"" } ] } } }
style
left-column

性能和储存信息

运输条件
Blue Ice
推荐的短期储存条件
-20°C
推荐的长期储存条件
-20°C
储存信息
-20°C
style
left-column
style
left-column

产品实验方案

style
left-column

靶点信息

See full target information C-C motif chemokine

其他靶点

CCL4,,IL1A,IL18,IFNA1_PIG
style
left-column

文献 (1)

Recent publications for all applications. Explore the full list and refine your search

Journal of virology 92: PubMed29925651

2018

Pigs Lacking the Scavenger Receptor Cysteine-Rich Domain 5 of CD163 Are Resistant to Porcine Reproductive and Respiratory Syndrome Virus 1 Infection.

Applications

Unspecified application

Species

Unspecified reactive species

Christine Burkard,Tanja Opriessnig,Alan J Mileham,Tomasz Stadejek,Tahar Ait-Ali,Simon G Lillico,C Bruce A Whitelaw,Alan L Archibald
